Brief Induction:

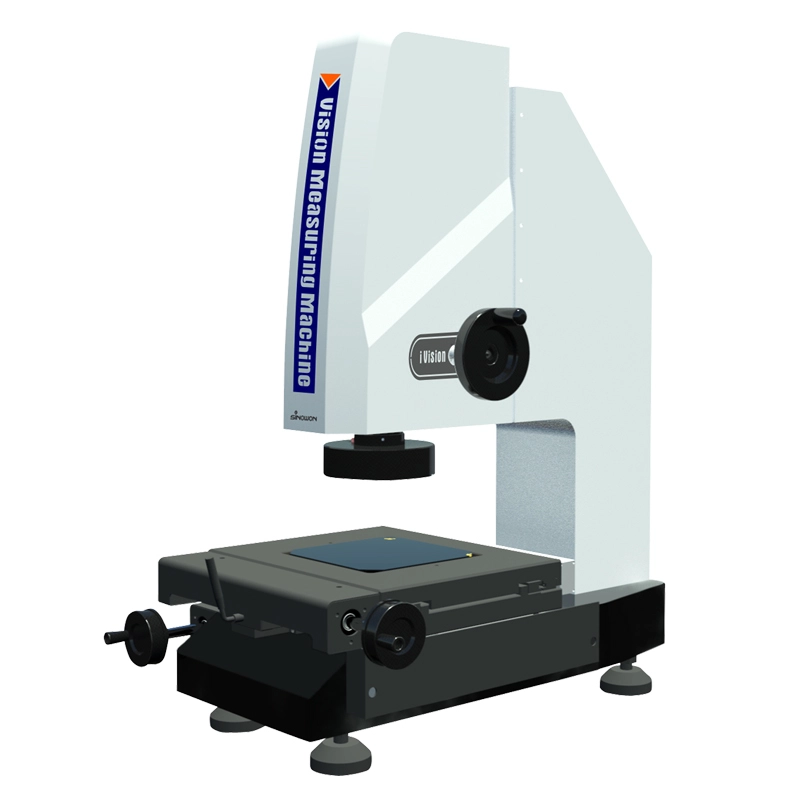

IMS-1010 is the 2D vision measuring machines with optical detent zoom lens for the measurement of geometric dimension and tolerance, it is movable by the light weight: 35Kg and small size: 498x382x627mm, and it is widely applied at the industry of 3C, semiconductor, PCB, automobile parts, medical parts, precise molds, etc.

Product Characteristic:

l  IMS-100 is able to be moved in different workshop and laboratory by the mall size and light weight easily;

l  High precision toothless rod and fast moving locking device ensures repeatability error is less than 2um;

l  High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um;

l  High definitive detent zoom lens and high resolution color camera ensures clear image without distortion;

l  With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;

l  Powerful function iMeasuring 2.0 Measuring Software, highly enhance the quality control, and it can output Word, Excel, PDF, TXT report and AutoCAD file automatically.



Technical Specifications

Commodity		2D Movable Manual Vision Measuring Machine
Model		iMS-1010B
Code#		521-110B
Metal Table		250x208 mm
Glass Table		130x130 mm
X/Y Travel		100x100 mm
Z-axis Travel		100 mm
X/Y Linear   Scale		High Accuracy A-grade linear scale, Resolution: 0.5um
Workstage		Precision rails,  toothless rod and fast-moving locking device
Base and Pillar		High Accuracy Marble Base, Cast Aluminum Pillar
Accuracy		E1xy≤2.4+L/200（um）
Repeatability		2um
Vision System		USB CMOS Digital Camera
		6.5x High   Resolution Optical Detent Zoom Lens
		Magnification：0.7X~4.5X; Video Magnification：26X~172X
Illumination   System (Software Adjustment)		Surface: Adjustable   4-ring 8-division LED Cold Illumination
		Contour: LED Illumination
Zoom Lens	Optical Magnification	0.7x	1x	2.0x	3.0x	4x	4.5x
	Video Magnification	26.75x	38.21x	76.43x	114.64x	152.86x	171.96x
	Vision field	8.77x7.1x5.3	7.64x6.1x4.6	3.92x3.1x2.3	2.66x2.1x1.6	1.87x1.5x1.1	1.53x1.2x0.9
Working   Environment		Temperature：19°~24°C
		Humidity：45% ~75%RH
		Vibration<0.002g, ＜15Hz
Measuring   Software		iMeasuring 2.0 Measuring   Software
Load Capacity		5Kg
Operation   System		Support XP, WIN7, WIN8.1 ,WIN 10, 32/64 operating system
Language		English,   Simplified Chinese, Traditional Chinese
Power Supply		220V/50Hz/10A
Dimension(W*D*H)		498x382x627mm
Net Weight		35 Kg

Description：

l  L is measuring length (mm) the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

l  **Magnification is approximate value, it is related to the dimension of monitor and resolution.

l  0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.

l  Field of view (mm) = (diagonal*Horizontal*Vertical).

l  Executive Standard：GB/T 6830-2013；ISO 10360-7:2011；JJF 1093-2015.
