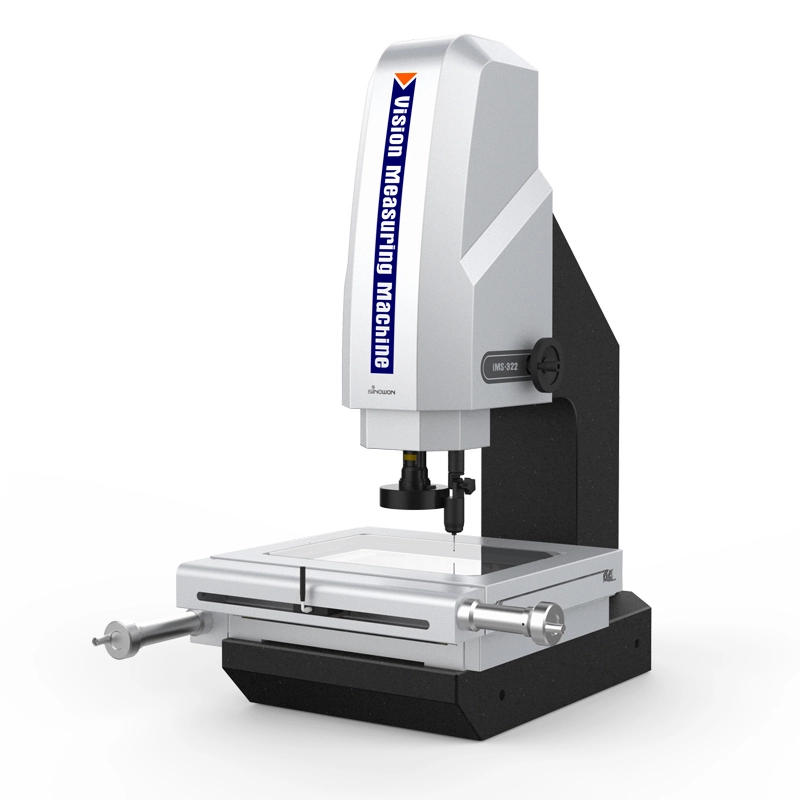

iMS-322R 3D Multisensor Vision Measuring Machine 1
iMS-322R 3D Multisensor Vision Measuring Machine 1

iMS-322R 3D Multisensor Vision Measuring Machine

    oops...!

    no product data.

    Go to homepage

    iMS-322R 3D Multisensor Vision Measuring Machine 2



    Application:

    Sinowon IMS-322R is multisensor vision coordinate measuring machine, it not only can measure the linear size, such as: point, line, cycle, arc, angle, rectangular hole, but also can measure the geometrical size, such as: straightness, flatness, circularity, cylindricity, perpendicularity, parallelism, angularity, concentricity, symmetry, position, profile, surface In the workshop and laboratory, most of measurement job can be done by multisensor measuring machine, it is widely applied to measure the dimension of Hardware, Mold, Machining, Precision Manufacturing, Automotive Parts, Stampings, Aerospace Components, Plastic & Rubber Products, Mobile Phone Industry, PCB Boards, Electronic Components, Semiconductor Components, Flat Glass (Touch Panels & LCD Panels), Medical Devices , tools and other fields, etc.


    Product Features:

    l  High precision marble base and pillar, to ensure high stability and accuracy;

    l  High precision linear guide, toothless rod and fast-moving locking device, to ensure hysteresis error is within 2um;

    l   High accuracy A grade optical linear scale with precision working stage, to ensure the accuracy is within 2.2+L/200um;

    l  6.5X Electronic zoom lens and high-resolution digital camera, to ensure clear image without distortion;

    l  With programmable surface LED Cold Illumination, LED coaxial Cold Illumination, contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness;

    l  Powerful function RationalVue Measuring Software, highly enhance the quality control;

    l  Imported contact probe and powerful function 3D Measuring Software, highly enhance the quality control.




    Technical Specification


    Commodity

    3D Multi-sensor   Vision Measuring Machine

    Mode

    iMS-322R

    Code#

    521-260R

    Marble Table

    458x358mm

    Glass Table

    356x248mm

    X/Y/Z Travel

    300x200mm

    Z-axis Travel

    High-precision linear guide, working travel 200mm

    X/Y/Z 3-Axis Linear Scale

    High Accuracy A-grade linear scale, Resolution: 0.0005mm

    X/Y axis Guidance Mode

    High precision linear guide, toothless rod and fast-moving locking device

    Base and Pillar

    High Accuracy Marble Base and gantry Pillar

    3D probe measuring system

    Renishaw MCP-K Probe

    3D measuring system

    100mm calibration block or optional 25mm calibration ball

    Accuracy

    E1xy ≤2.2+L/200(um)

    E1z ≤4+L/200(um)

    Repeatability

    2um

    Vision Touch Sensor

    High Resolution digital camera

    6:5:1 High Resolution Electronic Zoom Lens

    Magnification: 0.7X~4.5X; Video Magnification: 26X~172X

    Illumination System (Software Adjustment)

    Surface: Stepless adjustable LED Cold Illumination.

    Coaxial: LED Parallel Illumination

    Contour: LED Parallel Illumination

    LED Laser Navigation Light

    Measuring Software

    RationalVue Measuring Software

    Load Capacity

    20Kg

    Operation System

    Support WIN 10, 32/64 operating system

    Language

    English, Korean, Chinese, Spanish, German, Korean etc.

    Power Supply

    220V/50Hz; 110V/60Hz

    Dimension(WxDxH)

    838x667x1000mm

    Packing Size(WxDxH)

    1080x780x1290mm

    Net /Gross Weight

    185Kg/275Kg



    Standard Delivery

    iMS-322R 3D Multisensor Vision Measuring Machine 3

    Optional Accessories


    iMS-322R 3D Multisensor Vision Measuring Machine 4
