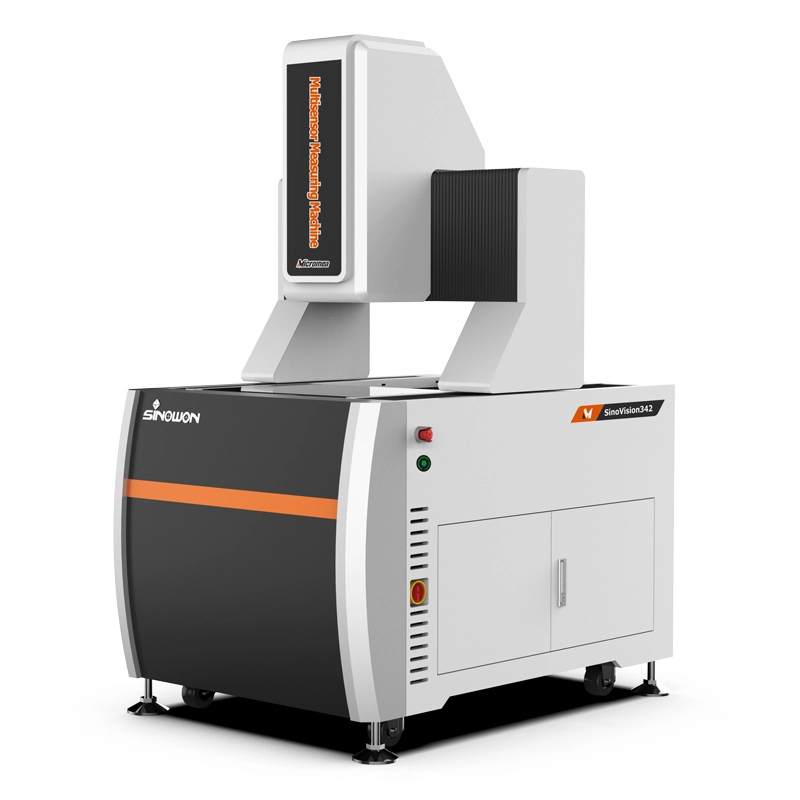

Multisensor Measuring Machine SinoVision342

    oops...!

    no product data.

    Go to homepage

    Product Characteristic:

    lMoving Bridge type structure, measuring is stable;

    lFour-axis CNC fully auto close loop control, can achieve auto measurement;

    lImported Indian black granite base and pillar, stable and reliable;

    lImported Germany linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

    lImported high definition digital color industry camera to meet the needs of clear observation and accurate measurement;

    l13.3x high-resolution motorized confocal laser zoom lens, accurate doubling and one times pixel correction only needed;

    lWith programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division;

    lPowerful function and easy operation iMeasuring Software to enhance quality control.



    Structural Design Features:

    Multisensor Measuring Machine  SinoVision342 2










     Multisensor Measuring Machine  SinoVision342 3

    l   Imported Indian black granite base and pillar, with CMM to   strictly control the quality during production, ensure stable and reliable;

    l   With 6061 aviation standard aluminum alloy, high toughness,   not easy to deform after processing, to ensure long-term stable accuracy   performance;

    l   Import Germany Heidenhain Linear scale, with a resolution of   0.1um, high precision and good stability;

    l   Imported German INA ultra-high precision G1-SP Linear Guide,   grinding grade ball screw and Japanese Panasonic AC servo motor to ensure the   stability of the positioning accuracy of the machine motion system;

    l   Using professional structural design simulation analysis   system for analysis and optimization, the structure is more reasonable.



    Technical Specifications

    Commodity

    2.5D Automatic Laser-Scan & Vision Multisensor Measuring Machine

    Model

    SinoVision342A

    Code#

    528-180H

    Sensor-Type

    Confocal Laser Zoom Lens

    X/Y-axis Travel

    (300*400)mm

    Z-axis Travel

    200mm

    X/Y/Z-3 axis Linear Scale

    European Linear Scale Resolution: 0.1um

    Guidance Mode

    High-precision SP-grade Linear Guide , double-track double slider guide.

    Operation Mode

    Joystick controller, Mouse operation, automatic detection program.

    Accuracy*

    XY-axisE1: 1.2+L/200um; E2 2+L/200um

    Z-axis1.2+L/200(um), Note: The verification area is within the high magnification and laser stroke

    Repeatability

    ±1.8um

    Video System**

    1/1.8" High-Definition Digital Color Camera

    13.3X Motorized Confocal Laser Zoom Lens

    Optical Magnification: 0.6X~8X; Video Magnification: 25X~333X (21.5” monitor)

    Illumination

     System

    Contour

    LED Parallel Contour Illumination

    Surface

    0~255 grade continue adjustable 5-ring 8-division LED surface illumination

    Coaxial

    Coaxial LED light source

    Measuring Software

    iMeasuring Software

    Load Capacity

    30Kg

    Working Environment

    Temperature 20℃±2℃Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz

    Power Supply

    220V/50Hz/10A

    Dimension (W*D*H)

    (1165mm*880mm*1650)mm

    Packing Size

    (1800*1400*2000)mm

    Net Weight

    1380Kg

    Note

    L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

    **Magnification is approximate value, it is related to the dimension of monitor and resolution.

    Field of view(mm) = (diagonal*Horizontal*Vertical)

    0.5X or 2X objective is optional available and realize image magnification: 10X~85X or 40X~340X.
