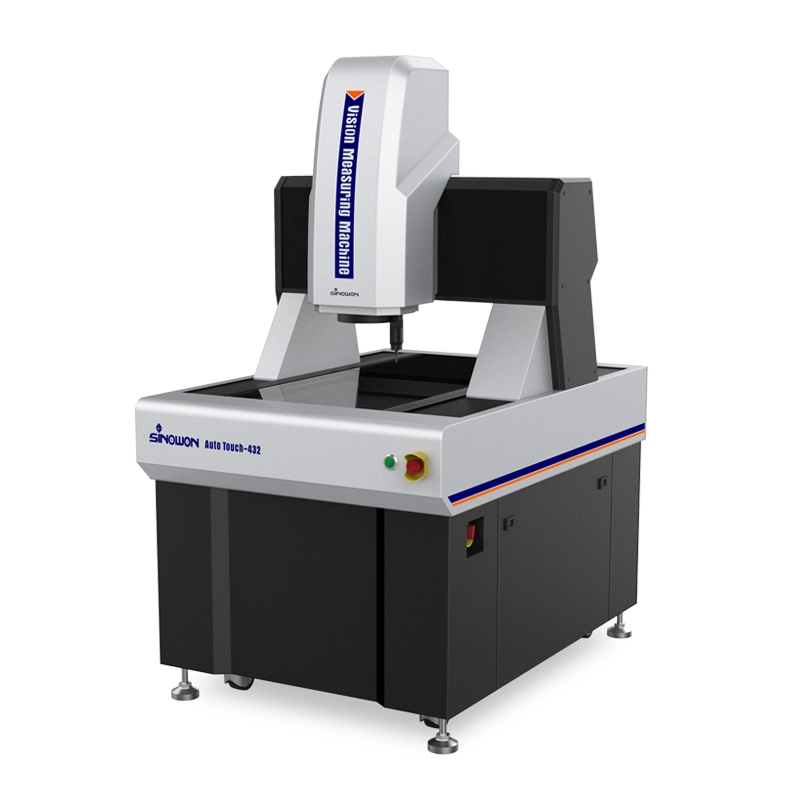

    AutoTouch432R 3D Automatic Multisensor Vision Measuring Machine 2



    Application:

    Sinowon AutoTouch 432R is multisensor vision coordinate measuring machine, it not only can measure the linear size, such as: point, line, cycle, arc, angle, rectangular hole, but also can measure the geometrical size, such as: straightness, flatness, circularity, cylindricity, perpendicularity, parallelism, angularity, concentricity, symmetry, position, profile, surface In the workshop and laboratory, most of measurement job can be done by multisensor measuring machine, it is widely applied to measure the dimension of Hardware, Mold, Machining, Precision Manufacturing, Automotive Parts, Stampings, Aerospace Components, Plastic & Rubber Products, Mobile Phone Industry, PCB Boards, Electronic Components, Semiconductor Components, Flat Glass (Touch Panels & LCD Panels), Medical Devices , tools and other fields, etc.


    Product Features:

    ²  Moving Bridge type structure, measuring workpiece is fixed;

    ²  Four-axis CNC fully auto close loop control, auto measurement;

    ²  Marble base and pillar, good stability;

    ²  Imported linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

    ²  Imported HD color camera to meet the needs of clear observation and accurate measurement;

    ²  6.5x high-resolution motorized zoom lens, accurate doubling and one times pixel correction only needed;

    ²  With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;

    ²  Equipped with imported R20 Probe to perform 3D measurement;

    ²  Powerful function and easy operation RationalVue Measuring Software to enhance quality control;

    ²  Optional Laser Sensor Module. Machines can be customized according to customers’ requirements.






    Technical Specification


    Commodity

    3D Automatic Multisensor Vision   Measuring Machine

    Model

    AutoTouch432R

    Code#

    521-121R

    X/Y-axis Travel

    400x300mm

    Z-axis Travel

    200mm

    X/Y/Z-3 axis   Linear Scale

    Rsf Linear Scale Resolution: 0.1um

    Guidance Mode

    Precision   linear guide, double-track double slider guide

    Operation   Mode

    Joystick   controller, Mouse operation, automatic detection program

    Accuracy*

    E1xy ≤1.8+L/200(um)

    E1z ≤4+L/200(um)

    Repeatability

    ±2um

    3D probe measuring system

    TELES R20 Probe

    3D measuring system

    Ring Gauge or optional 25mm calibration ball

    Vision Touch   Sensor

    1/1.8" High Definition   Color CCD Camera, Image navigation system

    6.5X Motorized Coaxial Zoom Lens

    Optical Magnification: 0.7X-4.5X

    Field of

    View(mm)

    D*H*V

    Magnification

    0.7x

    1x

    2.0x

    3.0x

    4x

    4.5x

    1/1.8"Camera

    12.86x10.29x7.71

    9.00x7.20x5.40

    4.50x3.60x2.70

    3.00x2.40x1.80

    2.25x1.80x1.35

    2.00x1.60x1.20

    Illumination

     System

    Contour

    LED parallel contour illumination

    Surface

    0~255 Stepless   adjustable 5-ring 8-division LED surface illumination


    Coaxial

    LED Parallel   Illumination

    Measuring Software

    RationalVue Measuring   Software

    Operation System

    Support WIN 10, 32/64 operating   system

    Working   Environment

    Temperature 20±2

    Humidity Range<2/hr

    Humidity 30~80%

    Vibration<0.002g, <15Hz

    Language

    English, Korean, Chinese, Spanish, German, Korean etc.

    Power Supply

    220V/50Hz; 110V/60Hz

    Load Capacity

    25Kg

    Dimension(W*D*H) (cm)

    1160x800x1650mm

    Packing Size

    1200x1400x1910mm

    Net Weight

    650Kg

    Gross Weight

    768Kg


    Standard Delivery

    Commodity

    Code #

    Commodity

    Code #

    3D Measuring Software

    RationalVue

    Motorized Coaxial Zoom Lens

    421-151

    Controller

    526-111

    5-ring 8-division LED surface illumination

    425-141

    0.1um Linear Scale

    581-201

    LED parallel   contour illumination

    425-131

    Video Capture Card

    527-131

    LED parallel coaxial illumination

    425-111

    Dongle

    581-451

    1/2” Color Camera

    484-123

    Ring Gauge

    581-831

    RS232 Data Cable

    581-931

    Glass Calibration Plate

    581-811

    AV video cable

    581-941

    Joystick controller

    581-871

    R20 Probe

    581-751

    Product Certification, Warranty Card

    ------

    Dell PC with 24” Monitor

    581-971

    Operation Manual, Packing List

    ------

    Anti-dust Cover

    521-911
