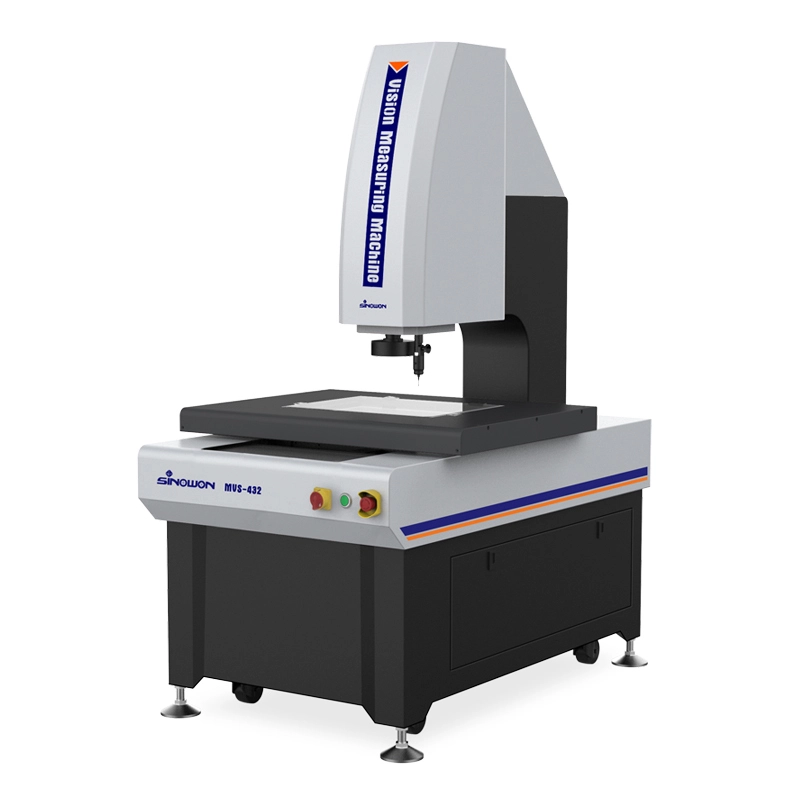

MVS-432R 3D Automatic Multisensor Vision Measuring Machine

Application:

Sinowon MVS-432R is multisensor vision coordinate measuring machine, it not only can measure the linear size, such as: point, line, cycle, arc, angle, rectangular hole, but also can measure the geometrical size, such as: straightness, flatness, circularity, cylindricity, perpendicularity, parallelism, angularity, concentricity, symmetry, position, profile, surface In the workshop and laboratory, most of measurement job can be done by multisensor measuring machine, it is widely applied to measure the dimension of Hardware, Mold, Machining, Precision Manufacturing, Automotive Parts, Stampings, Aerospace Components, Plastic & Rubber Products, Mobile Phone Industry, PCB Boards, Electronic Components, Semiconductor Components, Flat Glass (Touch Panels & LCD Panels), Medical Devices , tools and other fields, etc.

Product Features:

²  Moving Bridge type structure, measuring workpiece is fixed;

²  Four-axis CNC fully auto close loop control, auto measurement;

²  Marble base and pillar, good stability;

²  Imported linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

²  Imported high-resolution digital camera, to ensure clear image without distortion;

²  6.5x Electronic zoom lens, accurate doubling and one times pixel correction only needed;

²  With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;

²  Equipped with imported R20 Probe to perform 3D measurement;

²  Powerful function and easy operation RationalVue Measuring Software to enhance quality control;

²  Optional Laser Sensor Module. Machines can be customized according to customers’ requirements.

Technical Specification：

Standard Delivery：
