autofocus digital microscope wholesale for cast iron
Model:
VM-457
Code#:
451-457
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Application:
Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection and other fields.
Product Feature
◆ Sample and generous design, easy to use;
◆ HDMI camera and clear image, by USB or SD card storage pictures and video;
◆ 0.7~4.5X Horizontal continuous zoom lens, easy change the objective lens and save your time;
Specification

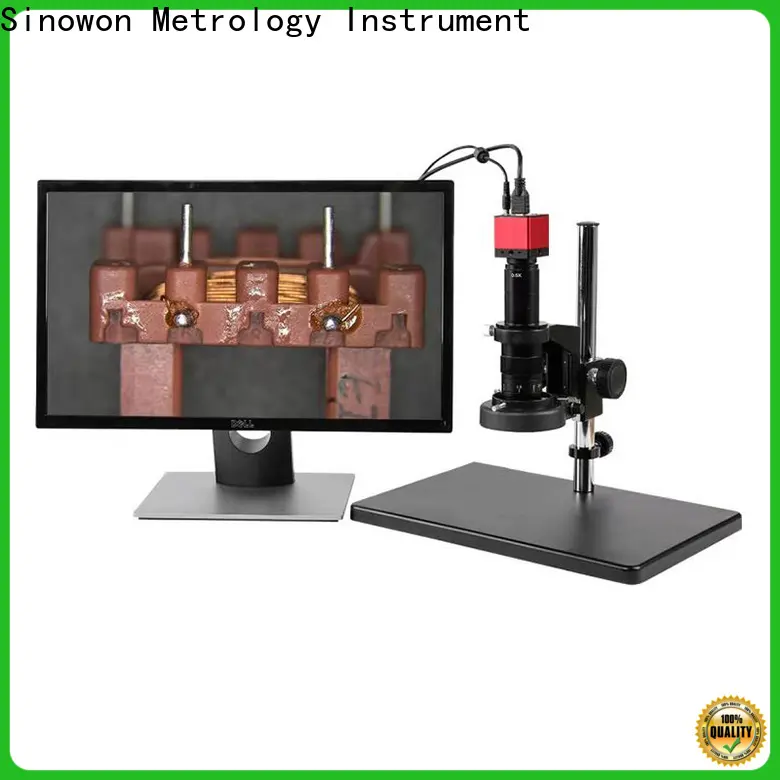

| Product Name | HD Video Measuring Microscope VM-457 |
| Model | VM-457 |
| Code# | 451-457 |
| Electronic Magnification | 33.47~215.19X( HDMI 16:9 21.5''monitor) |
| Optical Objective | 0.7X~4.5X zoom Lens |
| Magnification ratio：6.5:1 | |
| 1X C-mount Camera Adapter | |
| Camera Parameters | 2 Mega pixel (1920*1080) |
| Target size: 1/3inch | |
| Number of frames：30fps | |
| Camera Function | Manual Focus |
| Cross Line | |
| Take picture and video | |
| HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Light System | Surface light: Adjustable LED Surface Iight |
| Ring Fiber source (option) | |
| Microscope Stand | Z-axis Travel: 480mm |
| Coarse adjustment | |
| Electrical Parameters | AC90~240V；50~60HZ |
| Dimension | 450*310*525mm |
| Weight | ≈12KG (without monitor) |
Standard Delivery
| Commodity | Model | QTY |
| HD Measuring video Microscope | VM-700 | 1set |
| Power cable | 250V/6A | 1pc |
| Power adapter | DC12V | 1pc |
| HDMI 16:9 21.5” monitor | DELL | 1PC |
| Certificate/ Operation manual/ Packing list | Documents | 1 pc each |
| Mouse | 1pc |
Optional Delivery
| Commodity | Model | QTY |
| 0.5X Auxiliary objective | 423*053 | 1pc |
| 2X Auxiliary objective | 423*203 | 1pc |
| 16GB USB | 484-465 | 1pc |
