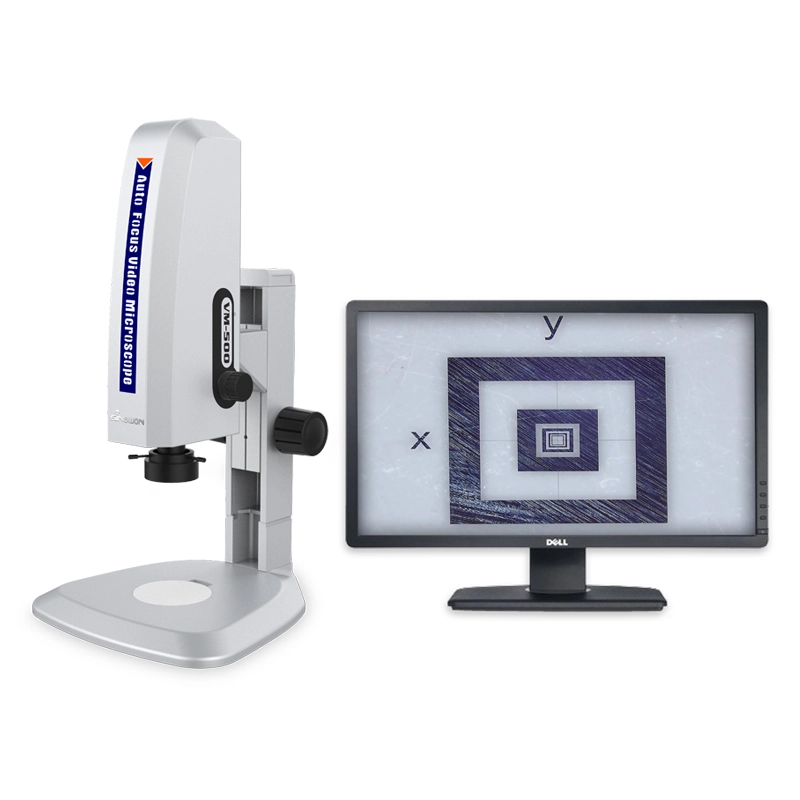

Auto Focus Video Measuring Microscope 1
Auto Focus Video Measuring Microscope 1

Auto Focus Video Measuring Microscope

    oops...!

    no product data.

    Go to homepage

    Auto Focus Video Measuring Microscope 2

    Application:
    It can be applied to incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.


    Product Feature


     Integral design, exquisite, fashion, generous;

     Built-in high-definition HDMI integrated camera, directly connected to HDMI display, can take pictures or videos;

     With high definition 0.7~4.5X parallel continue zoom lens, it is much more convenience and fast to switch objective magnification;

     With adjustable LED surface reflection illumination, is able to control brightness independently;

     With 2 mega pixel auto focus camera, no need to waste time for manual focus frequently;

     Multiple optional mobile control platform, ensure precision position measurement;

     With its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements.



    Measurement Function Introduction


    Auto Focus Video Measuring Microscope 3


    Auto Focus Video Measuring Microscope 4


    Auto Focus Video Measuring Microscope 5


    Field of View


    Auto Focus Video Measuring Microscope 6

    Auto Focus Video Measuring Microscope 7


    Specification


    Product Name

    Auto Focus Video Measuring Microscope

    Model

    VM-500Plus

    Code#

    #451-450P

    Electronic Magnification

    32X-206X ( HDMI 16:9 24”Monitor

    Optical Objective

    0.7X~4.5X Zoom Lens

    Zoom ratio6.5:1

    0.5X C-mount camera adapter mirror

    Camera Parameters

    2MPixel1920*1080

    Image Size:1/2.8”

    Frames1080P@60fps

    Measuring Function

    Linear dimensions such as distance, perimeter, area, angle,   radian, width, height, and radius elements are measured

    Measurement Accuracy

    0.02mm~0.003mm

    Illumination

    Adjustable LED Surface Illumination

    Microscope Stand

    Z-axis Travel: 100mm

    Electrical Parameters

    AC90~240V/50~60HZ

    Dimension

    375*285*500 mm

    Weight

    6.5Kg

    Application


    Auto Focus Video Measuring Microscope 8


    Optional Accessories

    Auto Focus Video Measuring Microscope 9
