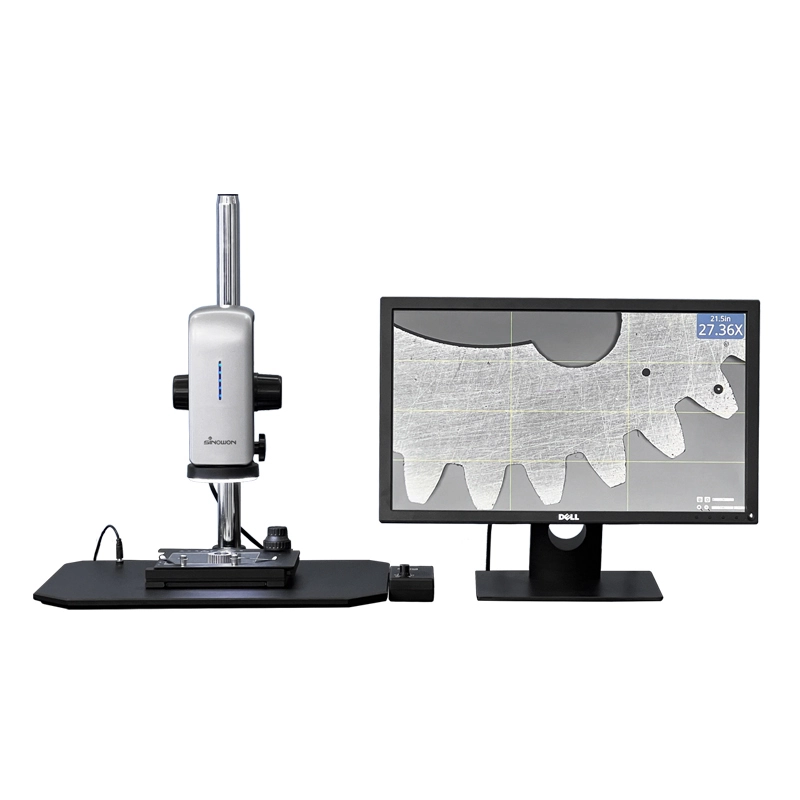

Autofocus FOV Video Measuring Microscope VM-300T

Application:

It can be applied to incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.

Introduction：

Autofocus FOV Video Measuring Microscope is powerful easy operation microscope with HD resolution and clear image. VM-300T have excellent optics in a rugged, widely travel range 190mm design. A wide range of objectives, illumination and accessories are available to tailor this series to fit your application.

Product Feature：

Step-Motor Driven Zoom; Auto Focus; Take Video; Take Picture; Measurement Function

lFlexible configuration options deliver excellent image quality and optical 27X-163X Electronic Zoom.

lLarge field of view and long working distance. Column Z travel range up to 300mm, measuring travel range is 190mm and working distance 110mm.

lVM300T with HDMI support monitor 1080P@60Hz or 1080P@50Hz

lLanguage: Chinese/ Traditional Chinese/English/Japanese

lVM300T can measure 2D straight lines, angles, concentric circles, parallel lines, point-to-line distance, point and line to concentric circles, diameter, circumference and area, length and width of rectangle. All the corresponding measurement report can be output to U disk.

lEasy and fast operation by motor driven control system, one time calibration and consistency operation.

lLED Magnetic ring light source easy to change and install.

Specification：

Exceptional images：

Full HD video brings out every detail, and manual and automatic focusing gives you ultra-sharp images every time. Even large subjects which would defeat lesser microscopes are brought into complete top-to-bottom focus thanks to VM300T’s focus stacking capability.

Intuitive simplicity：

Out of the box, VM 300T can be set-up in minutes. Then simply turn the camera on and begin viewing and capturing full HD images.  M300T intuitive controls make it easy to use from the start, and the multi-language on-screen menu let even minimally trained operators can get to work straightaway.

Illumination：

Standard LED Magnetic ring light source surface light, Adjustable brightness Light naturally has no flicker;

Optional LED Bottom light source.
