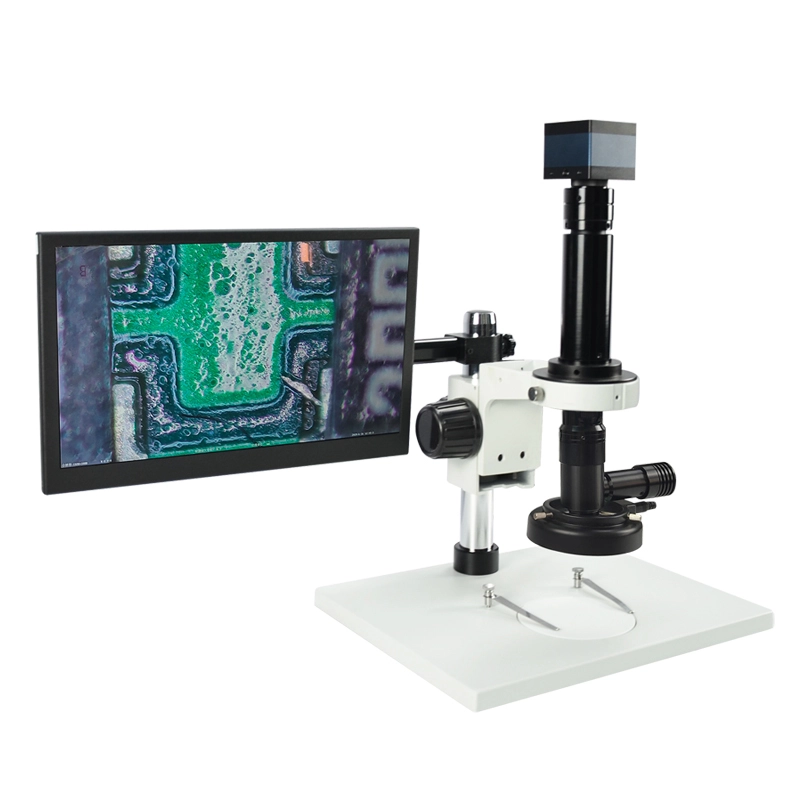

    Video Microscope VM-7513 2

    Product Introduction:

    Video microscope is a fixed frame fixed magnification monocular video microscope, using a unique elimination of stray light and large depth of field technology, with clear imaging, strong stereo and long working distance, wide field of view, etc., and high-definition color CCD and monitor or computer matching use.



    Product Feature


     Measurement/photography/video functions, compatible with 256M-32G U disk of various brands;

     2 million pixel progressive scan high definition images with excellent color reproduction performance;

     Images are stored without compression to ensure the best image quality;

     Convenient mouse interface with powerful OSD menu, exactly the same as operating a computer;

     HDMI output port, supporting all HDMI displays on the market;

     Magnification 10~200 times;

     Precise measurement function, can support line, circle, angle, rectangle and other kinds of measurement;

     12 sets of crosshairs horizontally and vertically, very convenient for setting crosshairs and measuring operations;

     2 million pixels progressive scan high definition image, excellent color reproduction performance;

     Automatic saving of all parameter settings;

     Unique SENSOR dustproof structure design,beautiful overall product shape.


    Product Applications


    This product can be used in a wide range of fields, such as microelectronics, molds, powder metallurgy, precision machinery, jewelry, clocks and watches, jewelry, fingerprint identification, ticket identification, printing, fiber optics, cell phone repair, archaeology, biological anatomy, and school demonstration. It is especially suitable for observing the microstructure of the surface of large objects.



    Specification


    Commodity

    Video Microscope

    Model

    VM-7513

    Code#

    451-141

    Microscope Magnification

    10~200X

    Main Objective Lens

    0.7X-4.5X

    Photographic Eyepieces

    0.5X

    Lift Range

    240mm

    Handwheel Focus Range

    50mm

    Center Distance

    150mm(Standard)

    Column Diameter

    32mm

    Data Interface

    VGA/HDMI Interface

    Lens Interface

    C/CS Interface

    Lens Interface Diameter

    76mm

    Camera Parameters

    SENSOR  Size

    1/2.8" Color

    Effective Pixel

    1600H×1200V2 million image elements

    White Balance

    Manual White Balance / Auto White Balance

    Color Mode

    Color, Monochrome, Sepia, Negative

    Scanning Method

    Progressive Scan (electronic rolling shutter)

    Exposure Control

    Automatic/Manual

    Mirroring Function

    Support Up and Down, Left and Right Mirroring

    Programmable Control

    Image Taking, Exposure Time, GAMMA, Contrast, Sharpness, R/G/B Gain,   Color Saturation, Screen Flicker Elimination

    OSD

    Support English / Simplified Chinese / Traditional Chinese Menu

    Parameter Saving Function

    Exit menu auto save Can save 5 groups of parameters

    Mouse Cursor Style

    Arrows/Full Screen Crosshairs

    Measurement Function

    Straight line length measurement, circle diameter, circumference, area   measurement, rectangle length \ width, circumference,

    area measurement, polygon perimeter, area measurement, circle center   distance (circle center to circle center distance) measurement, ellipse   perimeter \ area measurement, circular arc arc, arc length measurement, angle   measurement within the circle, angle measurement, a set of screen scale (can   be arbitrarily moved position and set the scale)

    Storage Function

    Can set the file name to store the date, and save the marking line,   measurement graph, marker, scale with the picture

    Marking Line

    12 sets of crosshairs with arbitrary mouse-moveable position and menu   fine-tuning. 3 sets of circle markers with arbitrary mouse-moveable position   and menu fine-tuning. One group of circle scale (360°/1 group) Two angle   lines 0 to 180 ° adjustable, step: 0.1 ° can set 6 colors

    Total Height of Bracket

    240mm

    Base Size

    320x260x16mm

    Auxiliary Objective

    0.5X2X( Selection   )

    Optional

    Universal Bracket


    Measurement Function Introduction


    The main function modules of the main catalog include: file, photo and video, marker line, same screen comparison (supported by some models), measurement, scale, marker, image parameters, measurement calibration, device parameters, help, etc.

    Support straight line length measurement, circle diameter, perimeter, area measurement, rectangle length \ width, perimeter, area measurement, polygon perimeter, area measurement, circle center distance (circle center to circle center distance) measurement, ellipse perimeter \ area measurement, arc arc radius, arc length measurement, circle inside angle measurement, angle measurement, a set of screen scale (you can move the position and set the scale arbitrarily), etc.
