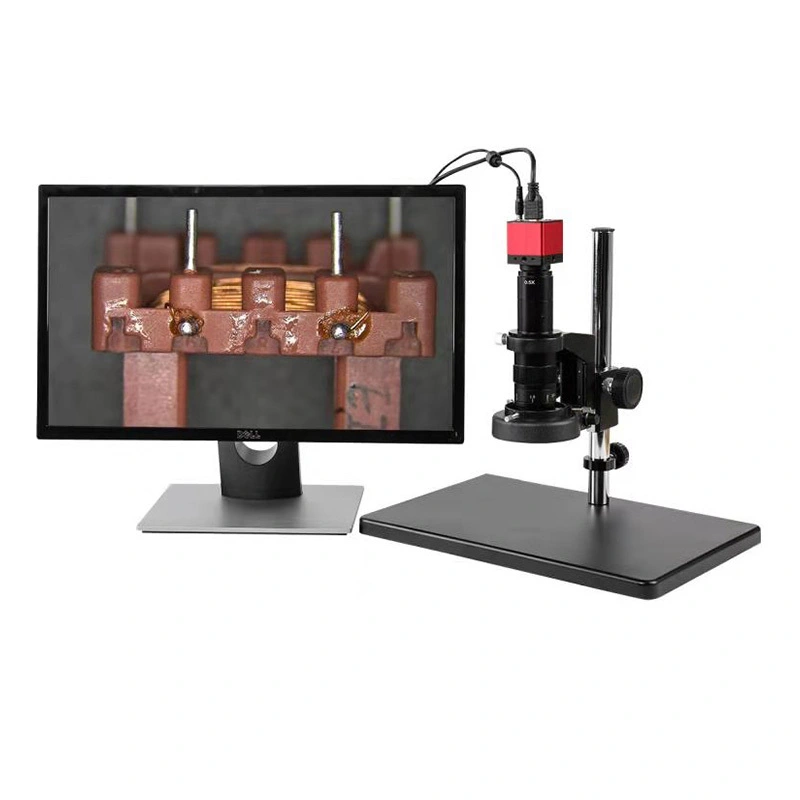

    HD Video Measuring Microscope VM-457 3

    Application:

    Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection and other fields.



    Product Feature


     Sample and generous design, easy to use;

     HDMI camera and clear image, by USB or SD card storage pictures and video;

     0.7~4.5X Horizontal continuous zoom lens, easy change the objective lens and save your time;


    Specification



    Product NameHD Video Measuring Microscope VM-457
    ModelVM-457
    Code#451-457
    Electronic Magnification33.47~215.19X( HDMI 16:9 21.5''monitor)
    Optical Objective0.7X~4.5X zoom Lens
    Magnification ratio:6.5:1
    1X C-mount Camera Adapter
    Camera Parameters2 Mega pixel (1920*1080)
    Target size: 1/3inch
    Number of frames:30fps
    Camera FunctionManual Focus
    Cross Line
    Take picture and video
     HDMI
    White Balance; Brightness Control; Digital Noise Reduction
    Light SystemSurface light: Adjustable LED Surface Iight
    Ring Fiber source (option)
    Microscope StandZ-axis Travel: 480mm
    Coarse adjustment
    Electrical ParametersAC90~240V;50~60HZ
    Dimension450*310*525mm
    Weight

    12KG (without monitor)


    Standard Delivery



    CommodityModelQTY
    HD   Measuring video MicroscopeVM-7001set
    Power   cable250V/6A1pc
    Power   adapterDC12V1pc
    HDMI   16:9 21.5” monitorDELL1PC
    Certificate/   Operation manual/ Packing listDocuments1 pc each
    Mouse
    1pc


    Optional Delivery


    CommodityModelQTY
    0.5X   Auxiliary objective423*0531pc
    2X   Auxiliary objective423*2031pc
    16GB   USB484-4651pc
