◆ Auto-stage, Auto-Turret, Auto-measurement and Vickers testing system;

◆ Loading-force: Precise dead weights ensures the loading force system reliably and precisely;

◆ Optical-path: High-resolution optical microscopy path makes image of indention sharply and excellent;

◆ Auto-Turret: the switch position of Vickers indenters and 10x/20x objectives is repeatable and accurately;

◆ Auto-stage: it is driven by precise step motor with large travel size 100x100mm and heavy load ability ;

◆ Auto-Measurement: automatic hardness testing and measurement software：3A can control hardness tester and data communication, includes the switch of 10x, 20x objectives and Vickers indenter, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate CHD depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.

Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. "Macro" Vickers loads can range up to 50 kg or more.

Macro Vickers hardness methods are used to test on metals, and composites - almost any type of material. Since the test indentation is small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

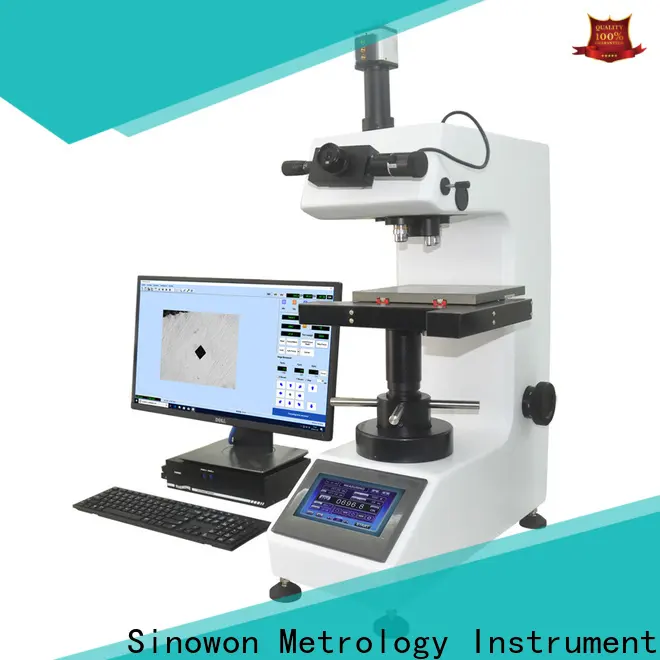

Commodity		Automatic Marco Vickers Hardness Tester
Model		AutoVicky ZHV-30A
Code#		822-320A
Focus-Mode		Manual-focus
Load-System		High-precision-weight
Test Load	Kgf	0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30
	Nf	2.942/ 4.903/ 9.807 / 29.421 / 49.035 / 98.07 /   196.14 / 294.21
Objective	Standard	10x  and 20x
	Option	5x, 40X
Loading-Mode		Automatic loading, dwell and unloading
Dwell Time		5 ~ 99 s can be adjustable
Turret System		Automatic
160mm Dual Optical Microscopy System		High-resolution Optical Microscopy Path 10x digital measuring eyepiece 20x objective for Vickers measurement 0.5x C-mount with camera for dual vision   measurement
Magnification		Optical observation magnification : 100x ( 10x   Objective and 10x Eyepiece )
		Optical measurement magnification :200x ( 20x   Objective and 10x Eyepiece )
		Digital observation magnification: 350x
		Digital measurement magnification: 700x
Light Source		LED parallel Illuminator
Digital Image System		0.5x C-adapter and 1.3Mpixel CMOS camera
Max. Specimen Height		200mm
Max. Specimen Depth		160mm
Hardness Scale		HV0.3/HV0.5/HV1/HV3/HV5/HV10/HV20/HV30
Auto-Stage	Type	Motorized
	Dimensions	200 × 180 mm
	X-Y Travel	100 × 100 mm
	Motorized	Step motor
	Resolution	0.5um
Driving Controller		Vickycontrol2000
Hardness Testing Software		3A: Auto-stage; Auto-measurement
PC system		DELL OptiPlex3046MT
LCD monitor		21.5” Dell LCD Monitor
Executive Standard		ASTM E-92, ISO 6507, GB/T4340
Dimensions		W 226 × D 560 × H 660 mm
Net. Weight		72Kg
Power Supply		AC 220V/50Hz or 110V/60 Hz
