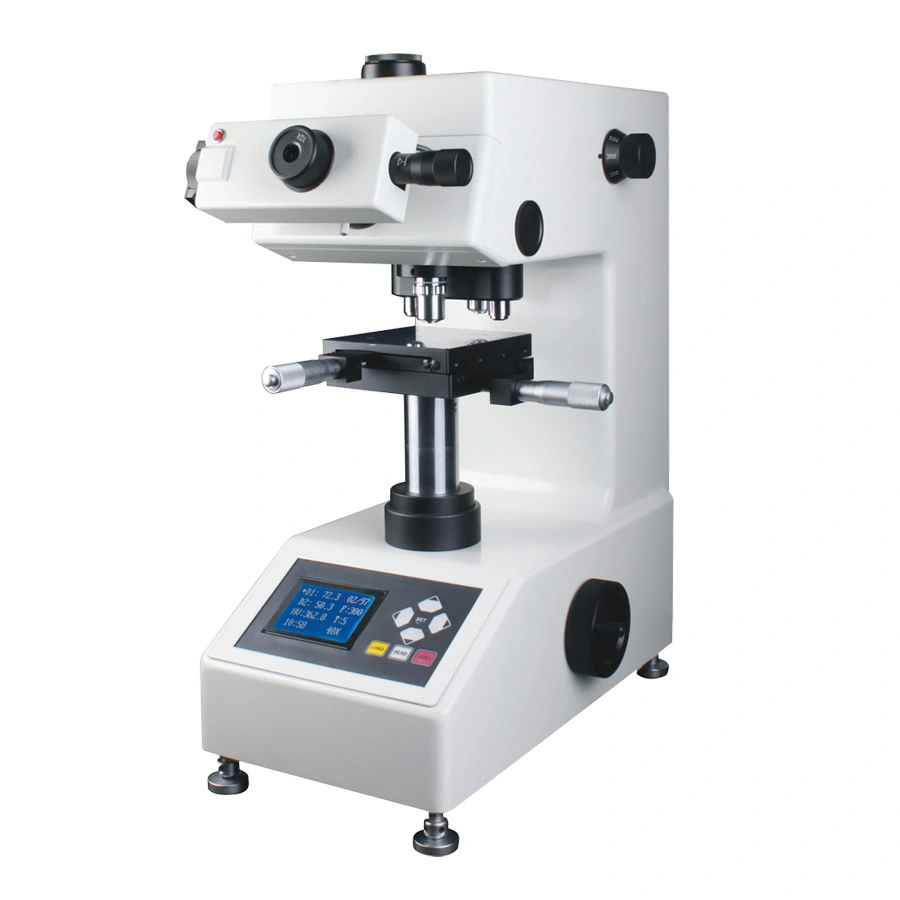

Vexus MHV-1000Z Series Advanced Digital Micro Vickers Hardness Tester

Model:

Vexus MHV-1000Z

Code#:

823-113

Warranty:

12 month

Delivery Time:

15-30days

Standard:

ISO 6507，ASTM E92，JIS Z2244，GB/T4340

Certificate:

Inquiry

Write a Review

Vexus MHV-1000Z Series Advanced Digital Micro Vickers Hardness Tester 2

Characteristics

◆ Vexus MHV-1000Z Series are precision micro Vickers hardness testing machines integrated the technology of optics, mechanics and compute, and it is focus on the vickers testing under the small force, and mainly applicable to measure the hardness value of ferrous metals and non ferrous metals;

◆ Vexus MHV-1000Z Series equipped with a LCD screen, the operation is more directly and clearly;

◆ Vexus MHV-1000Z Series can display the measuring methods, testing force, indentation length, hardness value, dwell time of the testing force as well as the number of measurement;

◆ Vexus MHV-1000Z Series can save and revise the date, record the measuring results, compute the data, output the information with the printer;

◆ Vexus MHV-1000Z Series hardness conversion among 4 hardness scales, and linking to PC in RS 232 interface and cable;

◆ Vexus MHV-1000Z Series adopt the design of double indenters, it equips with HV and HK indenter together, It is more suitable to measure the hardness of IC thin sections, coatings , ply metals; Glass, ceramics, agate , precious stones and other brittle and hard material.

Specification

Product Name		Single-Indenter Digital Micro Vickers Hardness Tester	Double-Indenter Digital Micro Vickers Hardness Tester
Model		Vexus MHV-1000Z	Vexus MHV-1000ZK
Code#		823-113	823-123
Test Force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	gf	10、25、50、100、200、300、500、1000
Indenter		HV Indenter	HV and HK Indenter
Indentation Measurement		Digital Sensor Measurement
Lens & Indenter Switch		Auto-Turret
Loading Control		Automatic (Loading, Dwell, Unloading)
Magnification of Microscope		Observation:10x; Measurement:40x
Digital Eyepiece		Magnification:10x
Auto Hardness Conversion		HV，HRC，HB
Dwell Time		Adjustable 1~99s
Testing Range		1HV-2967HV
X-Y Anvil		Size:100x100mm; Travel:25 x25mm; Resolution:2um
Illumination		Adjustable LED 6V, Cold light-source
Display		D1、D2 、HV/HRC/HB/HK、Time
Max Height of Specimen		90mm
Instrument Throat		95m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		490×250×395mm
Packing Dimension		530 x450 x750mm
Gross / Net Weight		50Kg/40Kg
Execution Standard		ISO 6507，ASTM E92，JIS Z2244，GB/T4340

Software Introduction
