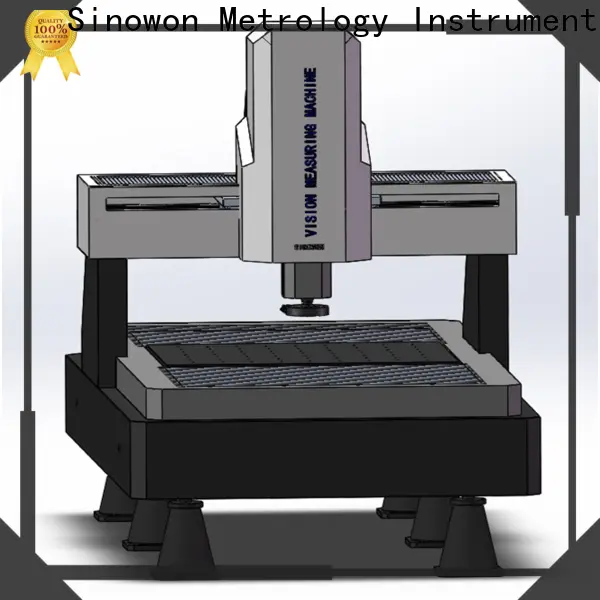

3D Automatic Coordinate Measuring Machine AutoTouch1653P

Requires sampling test product 2D dimension, shape and position tolerance, and automatically output the report.

Test sample size: within 1600*500*300mm

Application: Semiconductor、electronic

Product name		3D Automatic Vision Coordinate Measuring Machine
Model		AutoTouch 1653P
Code#		523-181S
X-Y Travel（mm）		1600x500mm
Z Travel（mm）		300mm
X/Y/Z 3-axis Linear Scale mm		GSI Open metal patch scale， Resolution：0.0001mm
X/Y/Z Guidance Mode		THK P grade linear guide，Dual rail dual slider guide； Panasonic AC servo closed motor and drive module ；
Z-axis probe measuring system (option，customized)		Renishaw MCP-K Probe 3D measuring system 100mm calibration black or 25mmcaliration ball
Laser Measuring (option，customized)		Keyence LK-G30A Laser and professional software to achieve flatness and height measurement. (Optional);
Operate method		Joystick controller, Mouse operation, automatic detection program
Accuracy*		X/Y：≤2.4+L/200(um)
		Z：≤4+L/200(um)
Repeatability		±2um
Vision System**		1/2"TEO colorful CCD camera
		12.5X Automatic Zoom Lens;
		Optical Magnification：0.58X-7.5X，Video Magnification：18X~236X
Illumination	Contour	LED Parallel Contour Illumination
	Surface	5-ring 8-division 0~255 grade continue adjustable
Software System		iMeasuring 4.2 Fully Auto Measuring Software
Load Capacity		800Kg
Working Environment		Temperature 20℃±2℃ Humidity Range<2℃/hr Humidity 30~80%, Vibration<0.002g,<15Hz
Power		220V/50Hz/10A
Dimension		236011001750mm
Package size		260012501880mm
Weight		1680Kg

* L is measuring length，unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

**Magnification is approximate value, it is related to the dimension of monitor and resolution.

Customers can choose 0.5X or 2X optional objective, and realize image magnification: 9X~118X or 36X~472X.

FOV(mm)

Magnification

0.7x

2.0x

3.0x

4.5x

1/2”CCD

11.43x9.14x6.86

8x6.4x4.8

4x3.2x2.4

2.67x2.13x

1.6

2x1.6x1.2

1.78x1.42x

1.07

FOV(Field of View)=（Diagonal *Horizontal*Vertical）

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
