    Product Feature


    The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

    Coating process reflector, clearer image and great dustproof;

    Adjustable contour and surface illumination, to meet with difference workpiece demand;

    Imported high light and long using life LED illumination ,to ensure precision measurement demand;

    High resolution optical system with clear image and magnification error is less than 0.08%;

    Powerful Bi-axial fan cooling system,highly increase using life;

    Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

    Built-in Mini-printer, can print and save data;

    With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot switch ,clamp, etc.


    Specification

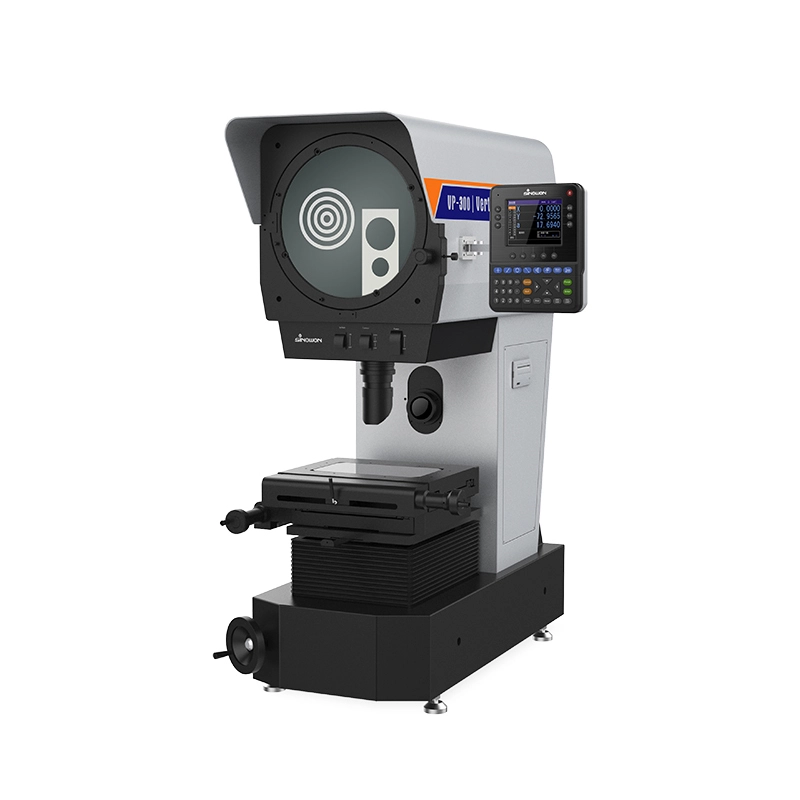

    Product NameØ300mm Digital Vertical Profile Projector
    Reverse ImageVP300-1510A (#511-330A)VP300-2010A (#511-340A)
    Obverse ImageVP300-1510AZ(#511-330AZ)VP300-2010Z(#511-340AZ)
    Metal Stage Size258x308mm258x358mm
    Glass Stage Size148x206mm148x256mm
    Stage Travel150x100mm200x100mm
    Product Dimension(L×W×H)988x563x1157mm988x563x1157mm
    Packing Dimension(L×W×H)1200x800x1500mm1200x800x1500mm
    Focusing90mm
    Accuracy≤3+L/200(um)
    Resolution0.0005mm
    Load Capacity10Kg
    ScreenDia:φ312mm,Measurement Range ≤ Ø300
    Rotation Angle 0~360° ;Resolution: 1 or 0.01°,Accuracy 6’
    Digital ReadoutDP400 (510-340) Multifunction colorful LCD digital readout

    Illumination

    Contour Illumination:3.2V/10W LED   Surface Illumination:3.2V/10W LED

    Working Environment

    Temp 20℃±5℃,Humidity 40%-70%RH
    Power SupplyAC110V/60Hz; 220V/50Hz,150W
    Cold-air Blowing System3-axis Powerful Fan
    Gross/Net Weight210/165kg240/180kg
