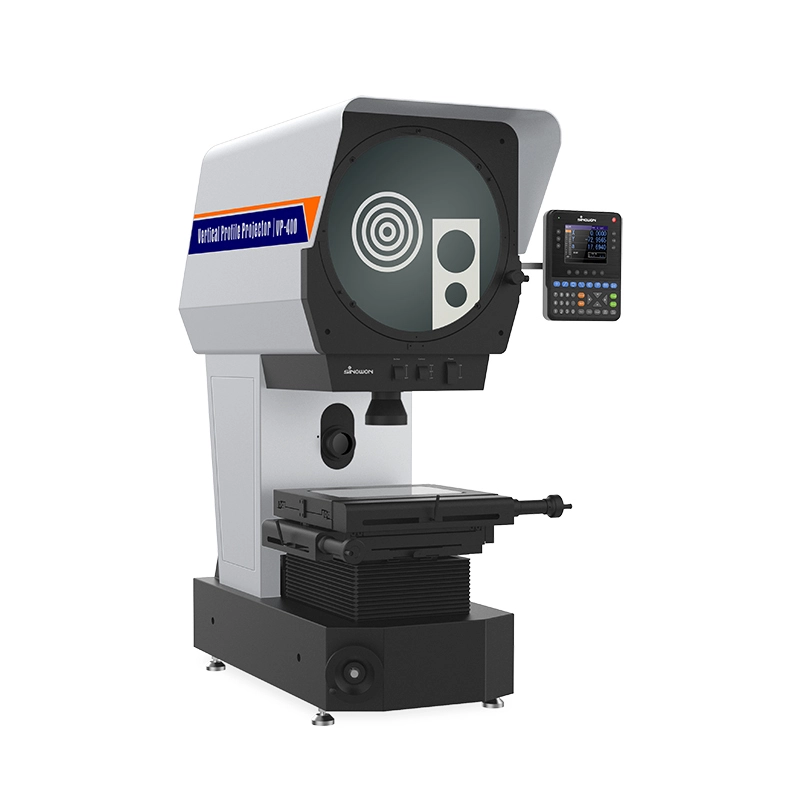

Digital Vertical Profile Projector VP400 Series Ø400mm

Model:

VP400-2010

Code#:

#511-410

Accuracy:

≤3+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Digital Vertical Profile Projector VP400 Series Ø400mm 2

Product Feature

◆ The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

◆ Coating process reflector, clearer image and great dustproof;

◆ Adjustable contour and surface illumination, to meet with difference workpiece demand;

◆ Imported high light and long using life LED illumination ,to ensure precision measurement demand;

◆ High resolution optical system with clear image and magnification error is less than 0.08%;

◆ Powerful Bi-axial fan cooling system，highly increase using life;

◆ Powerful and colorful DRO DP400，realized fast and accurate 2D Measurement;

◆ Built-in Mini-printer, can print and save data;

◆ With standard 10X objective, optional 5X,20X，50X，100X objective，rotary table, foot switch ,clamp, etc.

Specification

Product Name	Ø400mm Digital Vertical Profile Projector
Reverse Image	VP400-2010 (#511-410)	VP400-2515 (#511-420)	VP400-3020(#511-430)
Obverse Image	VP400-2010Z(#511-410Z)	VP400-2515Z(#511-420Z)	VP400-3020Z(#511-430Z)
Metal Stage Size	308x408mm	308x408mm	458x358mm
Glass Stage Size	198x306mm	198x306mm	356x248mm
Stage Travel	200x100mm	250x150mm	300x200mm
Product Dimension(L×W×H)	1003x617x1309mm	1003x617x1309mm	1003x617x1309mm
Packing Dimension(L×W×H)	1200x800x1580mm	1200x800x1580mm	1200x800x1580mm
Focusing	100mm
Accuracy	≤3+L/200(um)
Resolution	0.0005mm
Load Weight	10Kg
Screen	Dia:φ412mm,Measurement Range ≤ Ø400
Screen	Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6
Digital Readout	DP400 (510-340) Multifunction colorful LCD digital readout
Illumination	Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED
Working Environmental	Temp 20℃±5℃，Humidity 40％－70％RH
Power Supply	AC110V/60Hz; 220V/50Hz,150W
Gross/Net Weight	280/230kg	280/230kg	280/230kg
