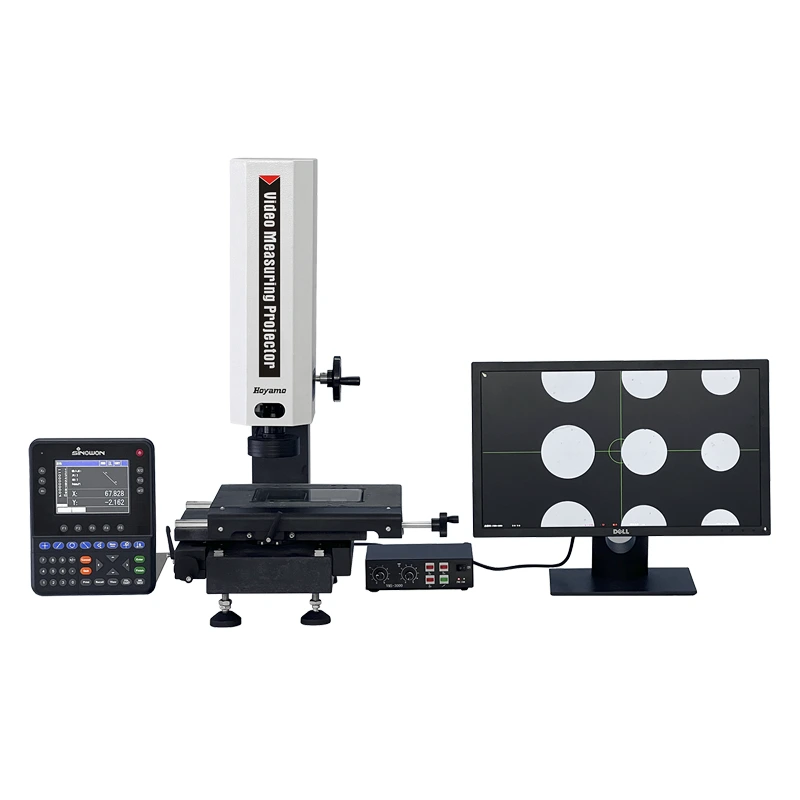

Video Measuring Projector VMD Series

Sinowon Video Measuring Projectors deliver high-precision optical metrology for manufacturing and quality control. Combining advanced imaging, precision optics, and robust software, our systems provide fast, micron-accurate measurements of complex components without contact. Designed for industries like automotive, aerospace, and medical devices, Sinowon projectors feature CNC automation, multi-sensor compatibility, and advanced analysis tools for GD&T, contour comparison, and 3D inspection.

Built for demanding production environments, our industrial-grade systems ensure repeatable accuracy in R&D, machining, and QC applications. With user-friendly interfaces and durable construction, Sinowon simplifies precision measurement while maximizing efficiency. Trusted by global manufacturers, we provide reliable, cutting-edge metrology solutions for critical dimensional inspection needs.

Model:

VMD-1510/VMD-2010/VMD-2515/VMD-3020/VMD-4030/VMD-5040

Code#:

525-020DP/525-020EP/525-020FP/525-020GP/525-020HP/525-020JP

Accuracy:

≤3+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Standard:

ISO10360

Certificate:

Inquiry

Write a Review

Video Measuring Projector VMD Series 5

Product Feature

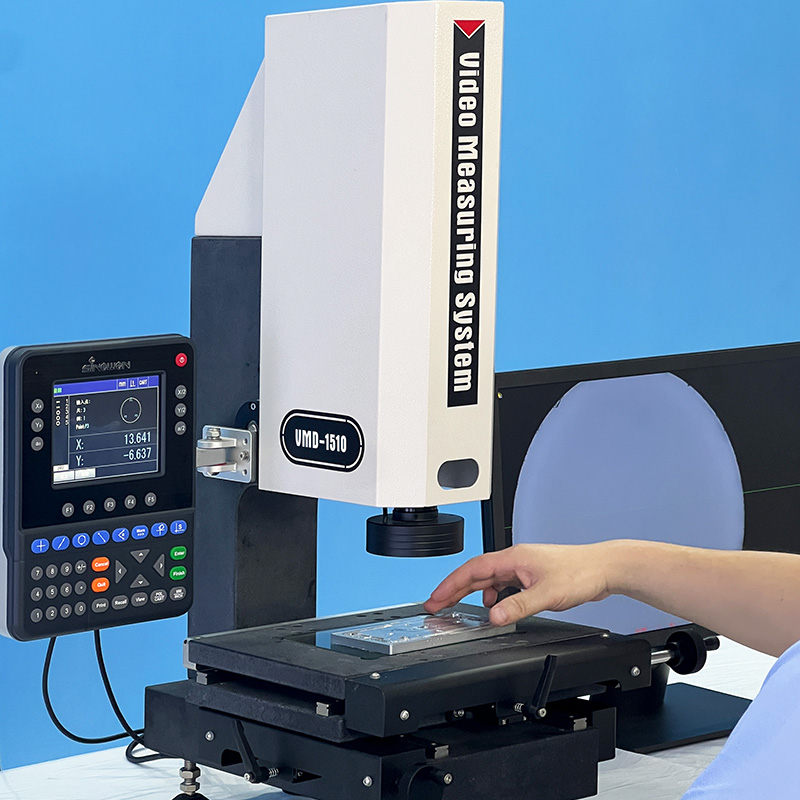

Adopts granite stone base and column to ensure the stability and precision of the machine;
Adopts toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;
Adopts high-precision instrument optical ruler and precision worktable to ensure E1 accuracy of the machine is within ≤3+L/200um;
Adopts zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;
Adopts LED cold surface light source and bottom LED parallel light source as projector illuminations;
Adopts to adjust the suitable color of Cross line to aim the measured points;
Adopts high-quality color screen metrology multifunction digital readout DP400 as data process system.

Specification

Commodity		Video Measuring Projector VMD Series
Model		VMD-1510	VMD-2010	VMD-3020	VMD-4030
Granite Stage		(310*220) mm	(390*220)mm	(505*350)mm	(605*450)mm
Glass Stage		(179.5*129.5) mm	(229.5*129.5)mm	(356*248)mm	(456*348)mm
X/Y Axis Travel		(150*100) mm	(200*100)mm	(300*200)mm	(400*300)mm
Z Axis Travel		100mm	100mm	200mm	200mm
Linear Scales		Resolution: 0.5um
Instrument Base and Column		High Precision Granite Stone
Measurement Accuracy*	E1x,y	3+L/200um
	E1xy	5+L/200um
	E1z	5+L/200um
Repeatability Accuracy		2um
Illumination System		LED cold surface light
		Bottom LED parallel light
		Optional coaxial light
HDMI Camera		1/3" 2MPixel High Resolution Camera: 1920*1080@30fps
Video Magnification		6.5X High-Resolution Zoom lens with Optical Magnification: 0.7X~4.5X,
		Video Magnification: 26X~172X (21.5' Monitor)
Wireless Mouse		Applied to adjust the suitable color of Cross line to aim the measured points
HDMI LCD Monitor		21” HDMI LCD Monitor
Measurement Data Process		Digital readout DP400 with Multilanguage English, Traditional Chinese, Optional Other Language Versions
Power Supply		AC220V/50Hz; 110V/60Hz
Dimension (WxDxH)		(462401725) mm	(477452725)mm	(7446431075)mm	(9087761070)mm
Gross/Net Weight		60/48Kg	65/50Kg	275/208Kg	283Kg

Models and Specifications

Model	Code#	Model	Code#	Model	Code#
VMD-1510	525-020DP	VMD-2010	525-020EP	VMD-2515	525-020FP
VMD-3020	525-020GP	VMD-4030	525-020HP	VMD-5040	525-020JP

The Measuring Space of VMD Series

Travel mm	Model	Code#	X Axis Travel mm	Y Axis Travel mm	Z Axis Standard Travelmm	Z-axis Maximum Customized Travel mm
150x100x100	VMD-1510	525-020DP	150	100	100	------
200x100x100	VMD-2010	525-020EP	200	100	100	200
250x150x200	VMD-2515	525-020FP	250	150	200	300
300x200x200	VMD-3020	525-020GP	300	200	200	400
400x300x200	VMD-4030	525-020HP	400	300	200	400
500x400x200	VMD-5040	525-020JP	500	400	200	400

Multifunction Digital Readout of Video Measuring Projector DP400

Video Measuring Projector VMD Series 6

Features

5.6〃Color Screen and Sealed silicone touch button, with full information, friendly operation, long using life;
Save 100 permanent image elements, can set and save current date;
Multi-function Measurement: Point, line, circle, angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset, construction, and so on;
Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC (record)function, and Cycle measurement;
Section and linear compensation are available for 3-axis, highly ensure measurement accuracy;
Can connect foot switch, printer, optical edge detection and other multiple auxiliary measurement tools;
With polar and coordinate system, and can display millimeter and inch, and can shift easily;
With independent password permission function, to prevent the possibility of data deviation by wrong operation, it can also change the original setting by password permission;
Support multiple language: Chinese, English and other language.

Specification

Commodity	Multifunction Digital Readout of Video Measuring Projector
Model	DP400
Code#	510-340
Language	Chinese, Portuguese, German and English, etc.
LCD Screen Size	115mm×85mm
LCD Screen Resolution	640*480
Digital Display Range	8Digits (With Decimal Point)
Display Axis	3-axis (X,Y,Z/Q)
Z/Q Display Model	Length or Angle
Angle Display Model	Degree, Minutes and Second or Degree
Signa of Linear Scales	TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA
Linear Scale Resolution	0.1um,0.2um,0.5um, 1um,2um,5um
Baud Rate	4800,9600,14400,19200,38400,57600
Data Output Port	RS232，DB-9 Parent interface
Operation Keyboard	Sealed Silicone touch-type keyboard
Expansion port	Foot Switch, Printer, Optical Edge Finder, etc
Input Power Supply	AC90V-240V,15W
