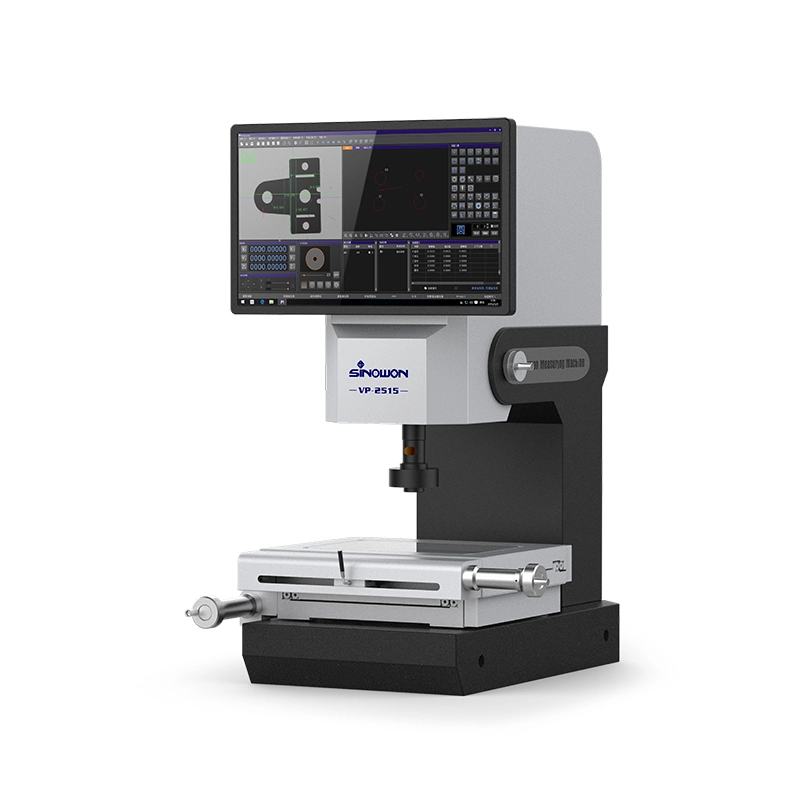

Vertical Video Projector VP Series

Model:

VP-2010

Code#:

541-200

Accuracy:

≤3+L/200um

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Vertical Video Projector VP Series 2

Product Feature

◆ The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;

◆ With precision toothless rod and fast movement locking device, ensure return error is within 2um;

◆ High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200mm;

◆ HD zoom lens and HD color digital camera, ensure clear image without distortion;

◆ With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;

◆ With powerful iMeasuring2.1 software system , to enhance the control quality;

◆ Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;

◆ Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption.

Specification

Product Name		Vertical Video Projector
Model		VP-2010		VP-2515				VP-3020
Code#		541-200		541-210				541-220
Working Stage Travel		200x100mm		200x150mm				300x200mm
Focusing Travel		150mm
Measurement Accuracy*		≤3+L/200um
Resolution		0.0005mm
Load Capacity		10kg
CCD		HD700 TVL Color CCD
Zoom Objective Lens **		HD 6.5X Detented Zoom Lens
		Optical Magnification:0.7X-4.5X; Video Magnification:26X~172X(21.5” LCD)
Field of View (mm) DiagonalHorizontalVertical	Lens Magnification	0.7X	1X		2.0X	3.0X	4X		4.5X
	1/3”CCD	8.57x6.86x5.14	6x4.8x3.6		3x2.4x1.8	2x1.6x1.2	1.5x1.2x0.9		1.33x1.07x0.8
Illuminating System (Software Control)		Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination
		Contour: LED Parallel illumination
		LED Laser navigation illumination
Working Environment		Temp：20℃±2℃，Temp Variation＜2℃/hr， Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ
Measurement Software		iMeasuring 2.1
System		Support XP, WIN7, WIN8，WIN10 32/64 Bit
Power		AC110V/60Hz; 220V/50Hz,600W
Dimension(L×W×H)		1460x1120x580mm		1725x675x620mm				1725x675x760mm
Weight		280kg		330kg				380kg
