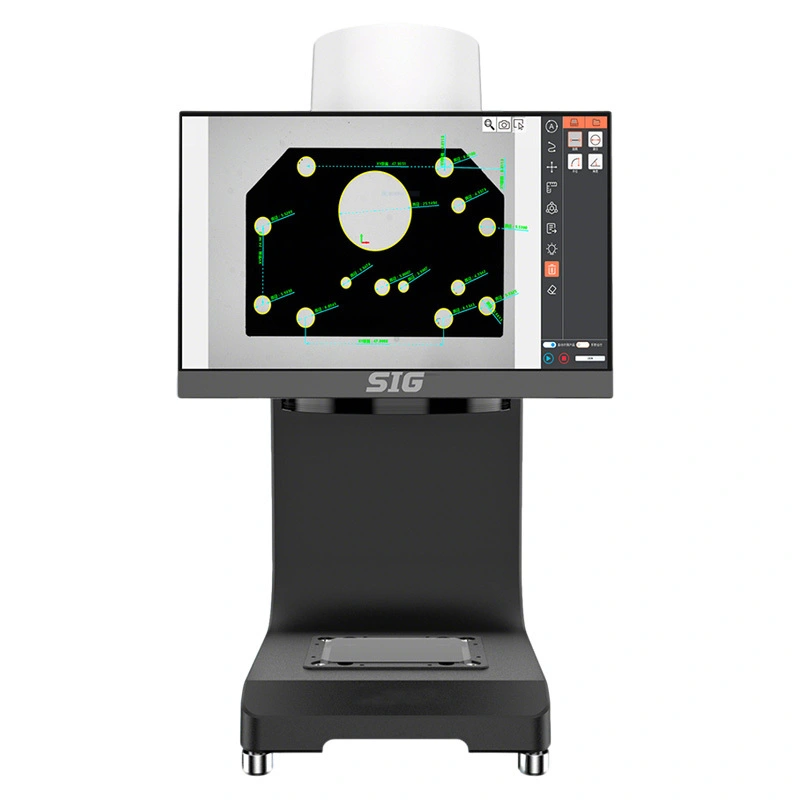

Smart Dimensional Projector
5.0
Model:
IVP-100
Code#:
500-011
Accuracy:
±8μm
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Feature
- Desktop design, small and stable, does not occupy space, easy to carry;
- After placing, it can be measured only by pressing a key, which is easy to operate;
- Double telecentric lens with measuring space of 115*75*30mm;
- Equipped with green LED contour light source and white LED ring light source, suitable for lighting different products and obtaining clear images;
- Intelligent measurement mode, one-click identification of product element characteristics, convenient and rapid measurement operation;
- Touch screen design, you can quickly create features and dimensions by sketching elements with your fingers, which is easy to get started and what you see is what you get;
- In the measuring field of vision, the product can be placed at will, and rapid measurement can be realized without fixture or positioning;
- Automatically realize accurate surface edge finding, and filter invalid areas by boundary clutter;
- The corresponding program can be automatically called according to product identification, and the measurement report can be automatically output without manual switching and importing;
- The flash meter can work normally for 24 hours continuously;
- Program modification is diversified, and program modification and optimization can be completed by touching.
Specification
|
Commodity |
Smart Dimensional Projector |
|
|
Model |
IVP-100 |
|
|
Code# |
500-011 |
|
|
Measuring range |
Measurable range |
115*75mm |
|
Maximum height |
30mm |
|
|
Resolution ratio |
0.1μm |
|
|
Precision |
Measurement accuracy |
±8μm |
|
Repeatability |
5μm |
|
|
Precision guaranteed temperature range |
Temperature: 20 2℃ |
|
|
Image sensor |
2000W pixel color camera |
|
|
Illuminating system |
Transmission illumination |
Green LED light source |
|
Annular lighting |
White LED ring light source |
|
|
Measuring table |
Dimensions of stage glass |
135*95mm |
|
Maximum bearing capacity |
10kg |
|
|
Display device |
15.6 inch touch screen |
|
|
External input and output |
USB*4、LAN*1 |
|
|
Power Supply |
Power supply specification |
220V±10%，50Hz |
|
Power consumption |
100W |
|
|
Noumenon |
Appearance size |
366*425*665mm |
|
Quality |
30kg |
|
