automatic portable hardness tester inquire now for measuring

Company Advantages
1. The processing of Sinowon portable hardness tester for steel involves several basic steps: plasticizing, mixing, calendering or extrusion, forming, punching, cutting, vulcanizing and deflashing. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
2. Sinowon Innovation Metrology Manufacture Limited. provides high-qualified portable hardness tester products, competitive price and excellent service to all our customers. Its packing is made seriously to guarantee the safety during shipment
3. Due to the strict quality control system, the performance of the product is greatly improved. The product is well used in many large engineering projects

◆ VicVision main apply in testing hardness of metal material and scientific research.

◆ VicVision Hardness range from soft materials to very hard materials.

◆ Except very thin and coated layers, can test almost the metals.

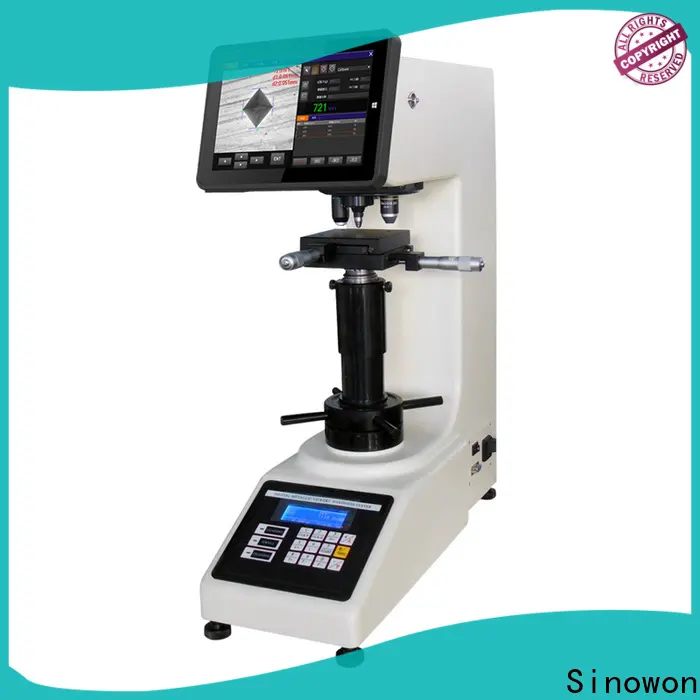

VicVision is intelligentized Vickers system, adopted vision measuring technical and auto measuring indenter system, and auto output reports. There is no need to aim indentation and reading dialog line, and can avoid human error when measure dialog line, largely improve accuracy and efficiency.

Product Name		Vision Vicker Hardness Tester
Model		VH-5	VH-10	VH -30	VH-50
Code#		821-201V	821-210V	821-220V	821-230V
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Auto Rotating Turret
Loading Control		Auto loading dwell and unloading
Illumination		LED / Halogen adjustable
Dwell Time		5-60s adjustable
Measuring System		iVicky 3.0 Auto Measuring Vickers System
PC System	Operation System	Win10
	Screen size	10.6”
	CPU	Intel I3
	USB	Double USB (could insert USB and soft dog)
	RAM	2GB
	Hard Disc	32GB
	Camera	1.3MP Pixel, 1/2”CMOS Color Camera
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. As a major exporter of China portable hardness tester, Sinowon Innovation Metrology Manufacture Limited. has strong research and development capabilities.
2. Sinowon Innovation Metrology Manufacture Limited. has rapid expansion for customers with the help of high quality vickers hardness test and advanced technology.
3. Sinowon Innovation Metrology Manufacture Limited. aims to fully introduce durometer into the international market. Welcome to visit our factory!
