    Automatic Vibratory Polisher VP-300A 2

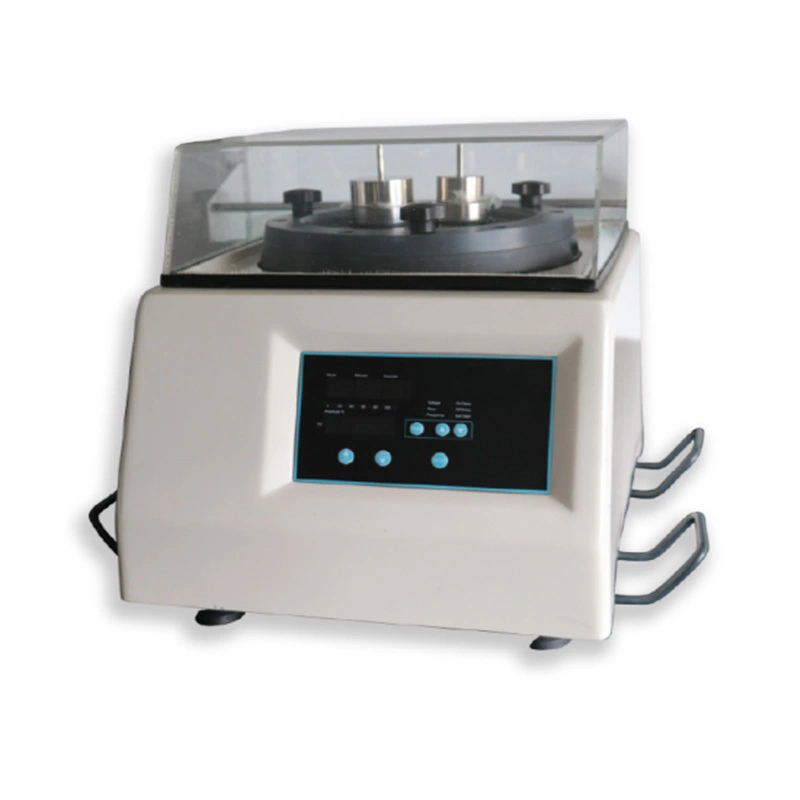

    VP-300A is an automatic vibratory polisher designed to prepare high quality polished surfaces on a wide variety of materials, especially for electron-backscatter diffraction (EBSD) applications. The high frequency vibration in horizontal motion produces a very effective polishing action to remove minor deformation remaining after mechanical preparation and reveal the stress-free surface. Ideal for EBSD specimens preparation.



    Product Feature


    ● Frequency and voltage controls. By adjusting the vibrating frequency, different size specimens can be polished. By changing the applied voltage, the speed of the polishing action can be easily controlled;

    ● Timer control. Stop automatically;

    ● Capable of handling small or large specimens;

    ● Multiple size holders (1-inch up to 2-inch diameter, others can be customized);

    ● Robust and durable design;

    ● Easy to use and service;

    ● Ideal for all materials.


    Specification


    Commodity

    Automatic Vibratory Polisher

    Model

    VP-300A

    Code#

    712-412

    Bowl Size (mm)

    Ø305mm /12 Inch

    Vibratory Frequency

    0~240Hz

    Power Supply

    110V/60Hz, 220V/50Hz

    Motor

    550W

    Dimension (WxDxH)

    530*660*470

    Weight

    135Kg

    Specimen Holder, 1.25inch

    ● 3PCS

    Holder Weights, 1.25inch

    ● 3PCS

    Lever Plate for 1.25inch

    ● 1PCS

    Polishing Pad

    ● 1PCS

    Other Holders

    Weights

    and Lever plate

    ○ 1inch  ○ 1.5inch  ○ 2inch

    Optional Available

    ●StandardOption
