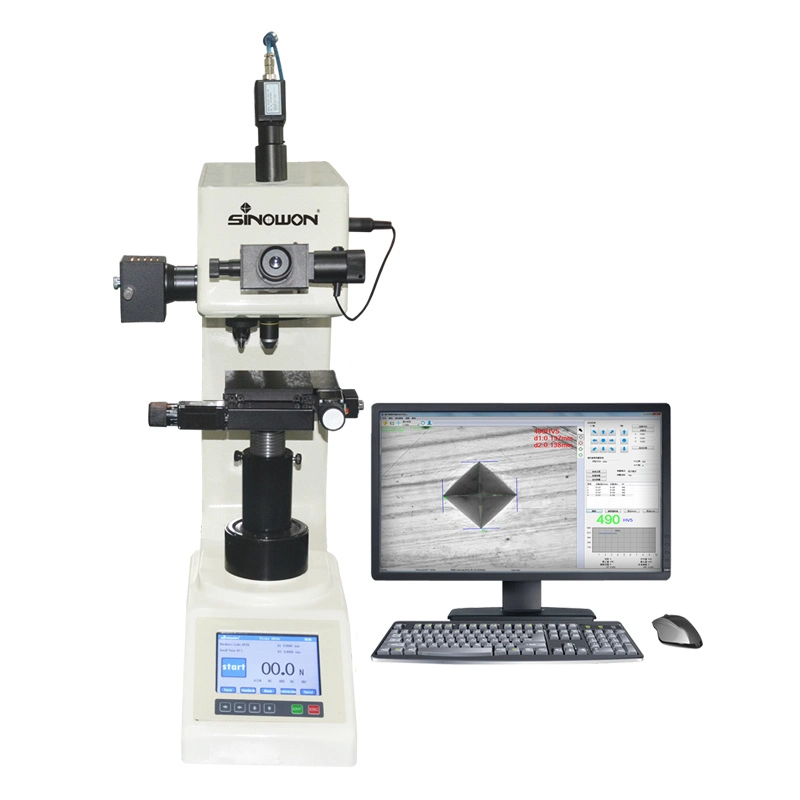

Automatic Vickers HardnessTester Complete Vickers and KnoopTesting AutoVicky ZHV-F
AutoVicky ZHV-Fseries Auto vickers hardness tester equips with high definition USB camera, motorized X-Y table, auto indentation measurement and case depth measurement, maximally eliminate human operation error, largely improves working efficiency, makes hardness measurement more accurate and uncomplicated.
Feature
◆ Close-loop control: equips with close-loop loading sensor, ensure loading force more precision, iVicky 6.0 control software realize auto loading, dwell and unloading.
◆ Auto Turret: indenter and objectives controlled by iVicky 6.0 software.
◆ Motorized Platform: precision X-Y movement to realize specific position hardness measurement.
◆ Auto Focus: Apply high resolution optic system and auto focus technology, MV-500 can realize auto focus and auto hardness evaluation only the specimen surface Ra≦0.8um.
◆ Auto Measurement Software: iVicky 6.0 can control hardness tester and data communication, includes objectives and indenter switch, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.
Specification
| Product Name | Auto Vickers Hardness Tester | ||||
| Model | AutoVicky ZHV-5F | AutoVicky ZHV-10F | AutoVicky ZHV-30F | AutoVicky ZHV-50F | |
| Code# | 821-220F | 821-240F | 821-260F | 821-280F | |
| Loading Force | N | 2.94、4.9、9.8、19.6、24.5、29.4、49.0 | 2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0 | 4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294 | 9.8、19.6、24.5、29.4、49.0、98.0、196、294、490 |
| Kgf | 0.3、0.5、1、2、2.5、3、5 | 0.3、0.5、1、2、2.5、3、5、10 | 0.5、1、2、2.5、3、5、10、20、30 | 1、2、2.5、3、5、10、20、30、50 | |
| Optic System | Objectives: 10X/40X; Digital Eyepiece: 10X | Objectives: 10X/40X; Digital Eyepiece: 10X | Objectives: 10X/20X; Digital Eyepiece: 10X | Objectives: 10X/20X; Digital Eyepiece: 10X | |
| Turret | Auto Turret | ||||
| Loading Control | Auto loading dwell and unloading | ||||
| Data Transferring | RS232 | ||||
| Camera Adapter | C-mount | ||||
| Hardness Conversion | HRA, HRB, HRC, HK, HBW, etc. | ||||
| Display | 5.2” Color touch screen, resolution 640*480 | ||||
| Dwell Time | 5-60s adjustable | ||||
| Measuring Range | 1HV-2967HV | ||||
| Resolution | 1HV | ||||
| Vision system | USB high definition USB camera | ||||
| Motorized XY Platform | Size :100x100mm; Travel :50x50mm; Resolution:1um | ||||
| Illumination | Adjustable halogen lamp | ||||
| Vertical Space | ≤ 170mm | ||||
| Horizontal space | ≤ 130mm | ||||
| Voltage | AC220/50Hz | ||||
| Dimension/ Packing Dimension | 535x190x585/610x450x770mm | ||||
| Gross / Net Weight | 75Kg/55Kg | ||||
| Conform Standards | ISO 6507, ASTM E92, JISZ2244, GB/T4340 | ||||
| Software | iVicky 6.0 Auto Vickers Measurement Software | ||||
| Computer | Dell, OS Win7, office2010 | ||||
