autoscan best cmm machine directly sale for commercial
1. Sinowon Innovation Metrology Manufacture Limited. only uses environmentally friendly raw materials for best cmm machine . The quality is reliable and the service life is long
2. There is no doubt that it really contributes to cut electricity costs. People can invest in this product to save money. A quality control system is implemented for the product
3. best cmm machine is intensively developed by Sinowon Innovation Metrology Manufacture Limited. due to its superior characteristics of mitutoyo quick vision apex factory . The product is well known for high accuracy and great stability
4. Almost all users find that best cmm machine we manufactured are mitutoyo quick vision apex factory . It is easy to operate, with fast speed
5. best cmm machine is provided with features of mitutoyo quick vision apex factory . The product is CE certified for the European market

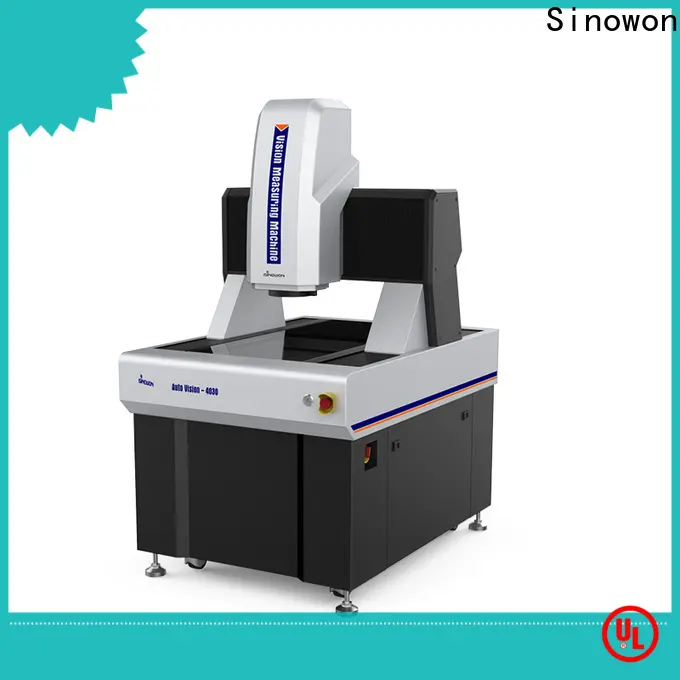

2.5D AutoVision is a Gantry Fully Auto Vision Measuring Machine, it is designed for high accuracy and large dimension measurement. Equipped with movable bridge structure, the workpiece is fixed, which can ensure measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.
Product Characteristics
◆ Moving Bridge type structure, measuring workpiece is fixed;
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ Marble base and pillar, good stability;
◆ Imported linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;
◆ Imported HD color camera to meet the needs of clear observation and accurate measurement;
◆ 6.5x high-resolution motorized zoom lens, accurate doubling and one times pixel correction only needed;
◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;
◆ Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control;
◆ Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’ requirements.
Technical Specification
| Product Name | 2.5D Automatic Vision Measuring Machine | ||||||||||
| Model | AutoVision432 | AutoVision542 | AutoVision652 | AutoVision862 | |||||||
| Code# | 520-121 | 520-131 | 520-141 | 520-151 | |||||||
| X/Y-axis Travel（mm） | 400x300mm | 500x400mm | 600x500mm | 800x600mm | |||||||
| Z-axis Travel（mm） | 200mm | ||||||||||
| X/Y/Z 3-axis Linear Scale（mm） | Imported Open Linear Scale, resolution：0.1um | ||||||||||
| Guidance Mode | Imported H grade Linear Guide，Double-Track Double Slider Guide | ||||||||||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program | ||||||||||
| Measurement Accuracy | XY-axis：≤2+L/200(um) | ||||||||||
| Z-axis：≤5+L/200(um) | |||||||||||
| Repeatability | ±2um | ||||||||||
| Video System | 1/1.8" Color CCD Camera | ||||||||||
| 6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | |||||||||||
| Field of View(mm) Diagonal * Horizontal*Vertical） | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | ||||
| 1/1.8"CCD | 12.86x10.29x7.71 | 9.00x7.20x5.40 | 4.50x3.60x2.70 | 3.00x2.40x1.80 | 2.25x1.80x1.35 | 2.00x1.60x1.20 | |||||
| Illumination | Contour | LED Parallel Contour Illumination | |||||||||
| Surface | 5-ring 8-division 0~255 grade continue adjustable | ||||||||||
| Software System | iMeasuring 4.1 Fully Auto Measuring Software | ||||||||||
| Load Capacity | 30Kg | 30Kg | 30Kg | 30Kg | |||||||
| Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | ||||||||||
| Power | 220V/50Hz/10A | ||||||||||
| Dimension | 1160x800x1650mm | 1450x950x1650mm | 1600x1050x1650mm | 2000x1200x1650mm | |||||||
| Packing Dimension | 1380x1170x1910mm | 1690x1300x2000mm | 1800x1400x2000mm | 2300x1700x2000mm | |||||||
| Weight | 650Kg | 780Kg | 1380Kg | 2000Kg | |||||||
Product Details
Company Features
1. Through our relentless effort of exploiting the market, the sales of best cmm machine has been always increasing.
2. Our quality system, ISO-9001 certification is today the fundamental key to our optimized processes in the workflow. It constantly drives improvements and systematically implements corrective processes in order to avoid mistakes to be repeated.
3. Our role in society goes beyond supplying services and products to our customers. We strive to make a positive impact in the communities that we serve – the places where our people and customers live and work. Inquire online!
