A professional manufacturer of measuring & testing equipment.

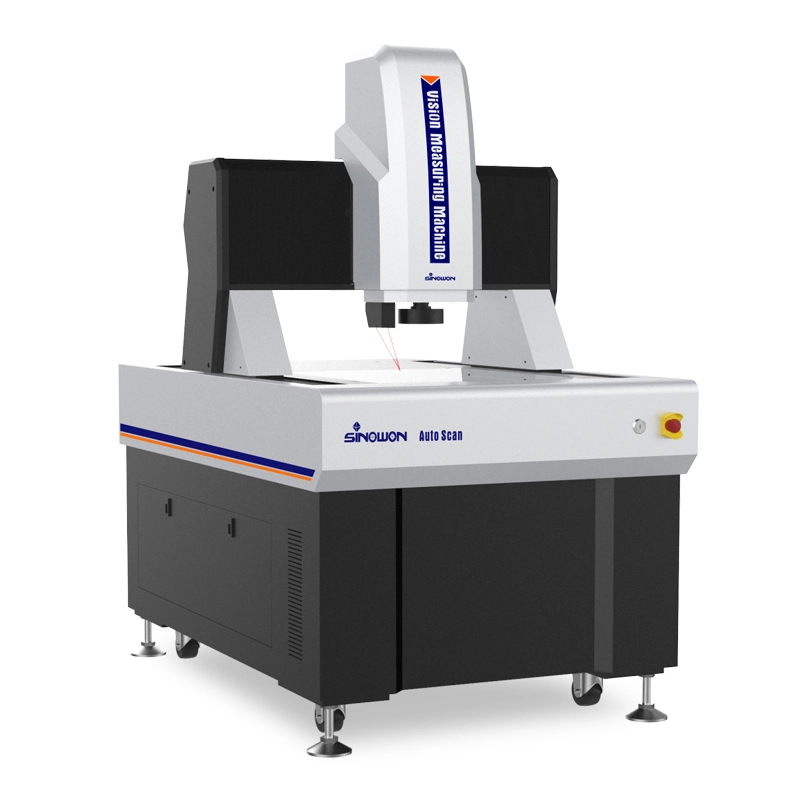

2.5D AutoScan Automatic Vision Measuring Machine 1
2.5D AutoScan Automatic Vision Measuring Machine 1

2.5D AutoScan Automatic Vision Measuring Machine

    oops...!

    no product data.

    Go to homepage

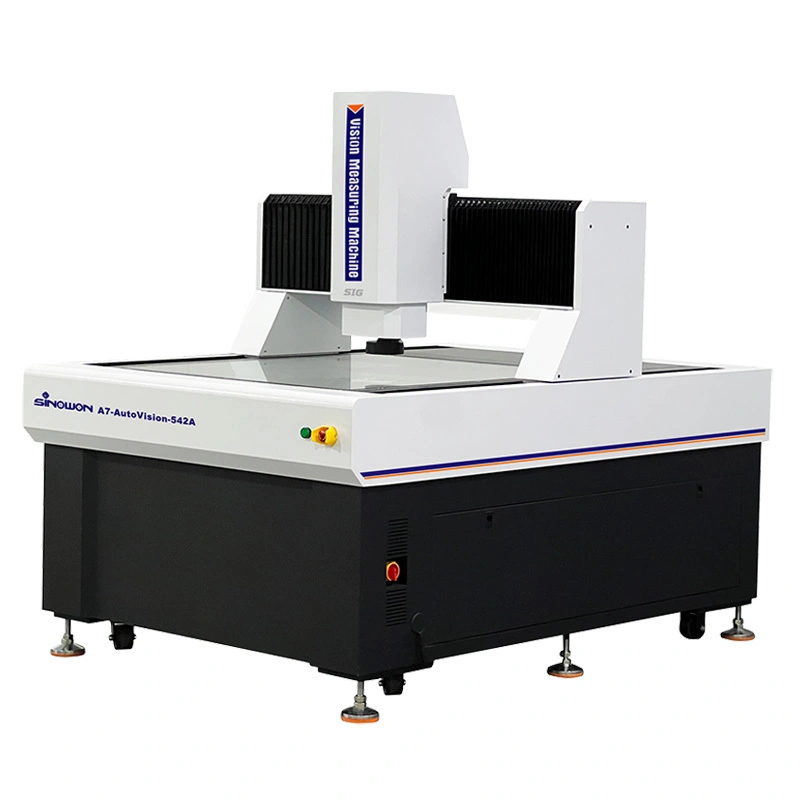

    2.5D AutoScan Automatic Vision Measuring Machine 2

    AutoScan is equipped with non-contact laser sensor to realize 3D measurement. It is widely used in non-contact measurement, and able to realize thickness, flatness and scan measurement.


    Product Characteristics


     Moving bridge structure, measurement workpiece is fixed;

     Four-axis CNC fully auto close loop control, auto measurement;

    ◆ Marble base and pillar, stable and reliable;

    ◆ Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;

     Imported P grade linear guide,, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;

    ◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;

     6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;

     Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

     With imported non-contact laser sensor, realize thickness and flatness and other measurement;

     With proprietary fully auto measuring software iMeasuring 5.0, powerful function, simple operation;

     Optional touch probe, coaxial illumination and other accessory, it can also be customized according to customer request;


    Technical Specification



    Commodity

    2.5D Automatic Vision Laser-scanning Measuring Machine

    Model

    AutoScan 432

    AutoScan 542

    AutoScan 652

    AutoScan 862

    Code#

    522-121

    522-131

    522-141

    522-151

    X/Y-axis Travel(mm)

    400x300mm

    500x400mm

    600x500mm

    800x600mm

    Z-axis Travel(mm)

    200mm

    X/Y/Z 3-axis Linear Scale(mm)

    High precision linear scale,resolution:0.1um

    Guidance Mode

    Precision linear guide,double-track double slider guide

    Operation Mode

    Joystick controller, Mouse operation, automatic detection program


    Measurement Accuracy

    XY-axis:≤1.8+L/200(um)

    Z-axis:≤5+L/200(um)

    Repeatability

    ±2um


    Video System

    High definition 1/1.8" Color CCD Camera

    6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor)

    Field of View(mm)

    (Diagonal *Horizontal*Vertical)

    Lens Magnification

    0.7x

    1x

    2.0x

    3.0x

    4x

    4.5x

    1/1.8"CCD

    12.86x10.29x7.71

    9.00x7.20x5.40

    4.50x3.60x2.70

    3.00x2.40x1.80

    2.25x1.80x1.35

    2.00x1.60x1.20


    Illumination

    Contour

    LED Parallel Contour Illumination

    Surface

    5-ring 8-division 0~255 grade continue adjustable

    Software System

    diMeasuring 5.0 Fully Auto Measuring Software

    Load Capacity

    30Kg

    30Kg

    30Kg

    30Kg

    Working Environment

    Temperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz

    Power

    220V/50Hz/10A

    Dimension

    1160x800x1650mm

    1450x950x1650mm

    1600x1050x1650mm

    2000x1200x1650mm

    Packing Dimension

    1380x1170x1910mm

    1690x1300x2000mm

    1800x1400x2000mm

    2300x1700x2000mm

    Weight(Kg)

    650Kg

    780Kg

    1380Kg

    2000Kg


    Product Details



    2.5D AutoScan Automatic Vision Measuring Machine 3
    2.5D AutoScan Automatic Vision Measuring Machine 4
