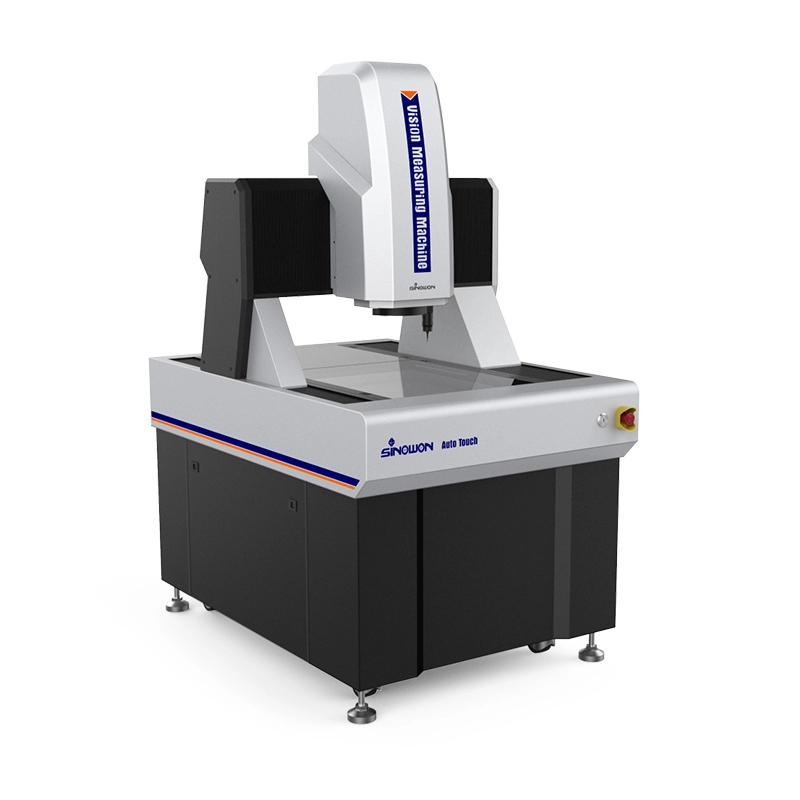

    3D AutoTouch is equipped with Touch Probe to realize 3D Measurement. Four-axis is motorized control and measurement, it is very easy to operate and can meet with widely application for precision industry measurement.


    Product Characteristics


     Moving Bridge type structure, measuring workpiece is fixed;

     Four-axis CNC fully auto close loop control, auto measurement;

     Marble base and pillar, good stability;

     Imported linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

     Imported HD color camera to meet the needs of clear observation and accurate measurement;

     6.5x high-resolution motorized zoom lens, accurate doubling and one times pixel correction only needed;

     With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;

     Equipped with imported MCP Probe to perform 3D measurement;

     Powerful function and easy operation iMeasuring 4.2 Measuring Software to enhance quality control;

     Optional Laser Sensor Module. Machines can be customized according to customers’ requirements.



    Technical Specification



    Product Name

    3D Autotouch Automatic Vision and Touch-probe Compound Measuring Machine

    Model

    AutoTouch 432

    AutoTouch 542

    AutoTouch 652

    AutoTouch 862

    Code#

    521-121

    521-131

    521-141

    521-151

    X/Y-axis Travel(mm)

    400x300mm

    500x400mm

    600x500mm

    800x600mm

    Z-axis Travel(mm)

    200mm

    X/Y/Z 3-axis Linear Scale(mm)

    Imported Open Linear Scale, resolution:0.1um

    Guidance Mode

    Imported P grade linear guide,double-track double slider guide

    Operation Mode

    Joystick controller, Mouse operation, automatic detection program


    Measurement Accuracy

    XY-axis:≤1.8+L/200(um)

    Z-axis:≤5+L/200(um)

    Repeatability

    ±2um


    Video System

    High definition 1/1.8" Color CCD Camera, Image navigation system

    6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor)

    Field of View(mm)

    (Diagonal *Horizontal*Vertical)

    Lens Magnification

    0.7x

    1x

    2.0x

    3.0x

    4x

    4.5x

    1/1.8"CCD

    12.86x10.29x7.71

    9.00x7.20x5.40

    4.50x3.60x2.70

    3.00x2.40x1.80

    2.25x1.80x1.35

    2.00x1.60x1.20


    Illumination

    Contour

    LED Parallel Contour Illumination

    Surface

    5-ring 8-division 0~255 grade continue adjustable

    Software System

    diMeasuring 4.2 Fully Auto Measuring Software

    Load Capacity

    30Kg

    30Kg

    30Kg

    30Kg

    Working Environment

    Temperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz

    Power

    220V/50Hz/10A

    Dimension

    1160x800x1650mm

    1450x950x1650mm

    1600x1050x1650mm

    2000x1200x1650mm

    Packing Dimension

    1380x1170x1910mm

    1690x1300x2000mm

    1800x1400x2000mm

    2300x1700x2000mm

    Weight(Kg)

    650Kg

    780Kg

    1380Kg

    2000Kg
