    AutoVicky ZVK-MH1010F Automatic Twin Micro Vickers/Knoop Hardness Tester 2

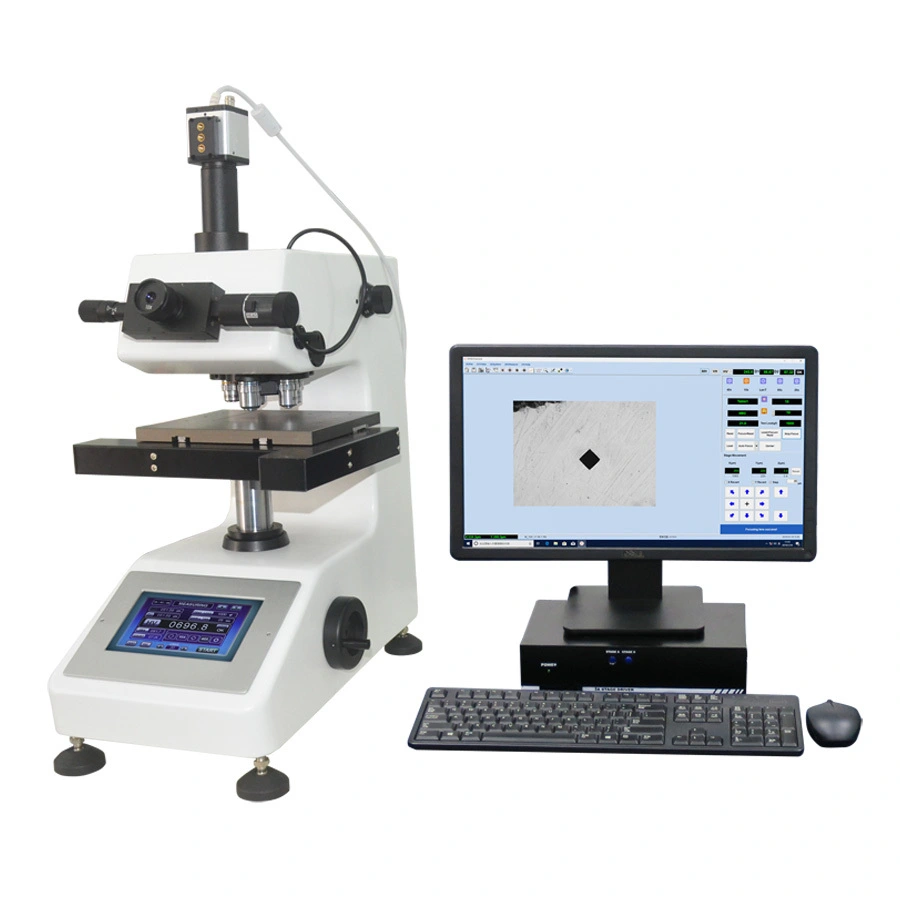

    Sinowon AutoVicky ZVK-MH1010F is Automatic micro Vickers and Knoop hardness tester with outfit of motorized X-Y auto-stage, auto-focus system, it has auto-measurement about the indentation of Vickers and Knoop together, and it can make measurement of case depth automatically, it eliminates human operation error, largely improves working efficiency, makes hardness testing measurement more accurate and uncomplicated.



    Product Characteristics


    ◆ Auto-stage, Auto-focus, Auto-measurement and Twin-Vickers/Knoop indenter system;

    ◆ Loading-force: Precise dead weights ensures the loading force system reliably and precisely;

    ◆ Optical-path: High-resolution optical microscopy path makes image of indention sharply and excellent;

    ◆ Auto-Turret: the switch position of HV/HK indenters and 10x/40x objectives is repeatable and accurately;

    ◆ Auto-stage: it is driven by precise step motor with large travel size 100x100mm and heavy load ability ;

    ◆ Auto-Focus: Apply high resolution optic system and auto focus technology, 3A software can realize auto focus and auto hardness evaluation if the indention size is larger than 8um ;

    ◆ Auto-Measurement: automatic hardness testing and measurement software:3A can control hardness tester and data communication, includes the switch of 10x, 40x objectives and Vickers and Knoop indenter, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate CHD depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.



    Product Application


    Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.

    Micro Vickers and Knoop hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.



    Specification


    Commodity

    Automatic Twin Micro Vickers/Knoop Hardness Tester

    Model

    AutoVicky ZVK-MH1010F

    Code#

    823-160F

    Focus-Mode

    Twin Auto-focus/Manual-focus

    Load-System

    High-precision-weight

    Test Load

    gf

    10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000

    mN

    98.07/ 245.2/ 490.3/ 980.7/ 1961/ 2942/ 4903/ 9807

    Loading-Mode

    Automatic loading, dwell and unloading

    Dwell Time

    5 ~ 99 s can be adjustable

    Turret System

    Auto-Turret

    160mm Dual Optical

    Microscopy System

    High-resolution Optical Microscopy Path

    10x digital measuring eyepiece

    40x objective for Vickers measurement

    Independent 40x objective for Knoop measurement

    0.5x C-mount with camera for dual vision   measurement

    Magnification

    Optical observation magnification : 100x ( 10x   Objective and 10x Eyepiece )

    Optical measurement magnification :400x ( 40x   Objective and 10x Eyepiece )

    Digital observation magnification: 350x

    Digital measurement magnification: 1400x

    Light Source

    LED parallel Illuminator

    Digital Image System

    0.5x C-adapter and 1.3Mpixel CMOS camera

    Max. Specimen Height

    90mm

    Max. Specimen Depth

    110mm

    Hardness Scale

    Switch between HV and HK

    Auto-Stage

    Type

    Motorized

    Dimensions

    200 × 180 mm

    X-Y Travel

    100 × 100 mm

    Motorized

    Step motor

    Resolution

    0.5um

    Driving Controller

    VickyControl2000

    Hardness Testing Software

    3A: Auto-stage; Auto-focus; Auto-measurement

    PC system

    DELL OptiPlex3046MT

    LCD monitor

    21.5” Dell LCD Monitor

    Executive Standard

    ASTM E-92, ISO 6507, GB/T4340

    Dimensions

    W190 × D 430 × H 520 mm

    Net. Weight

    80Kg

    Power Supply

    AC 220V/50Hz or 110V/60 Hz
