    Castable Vacuum Mounting CMP-250S 2

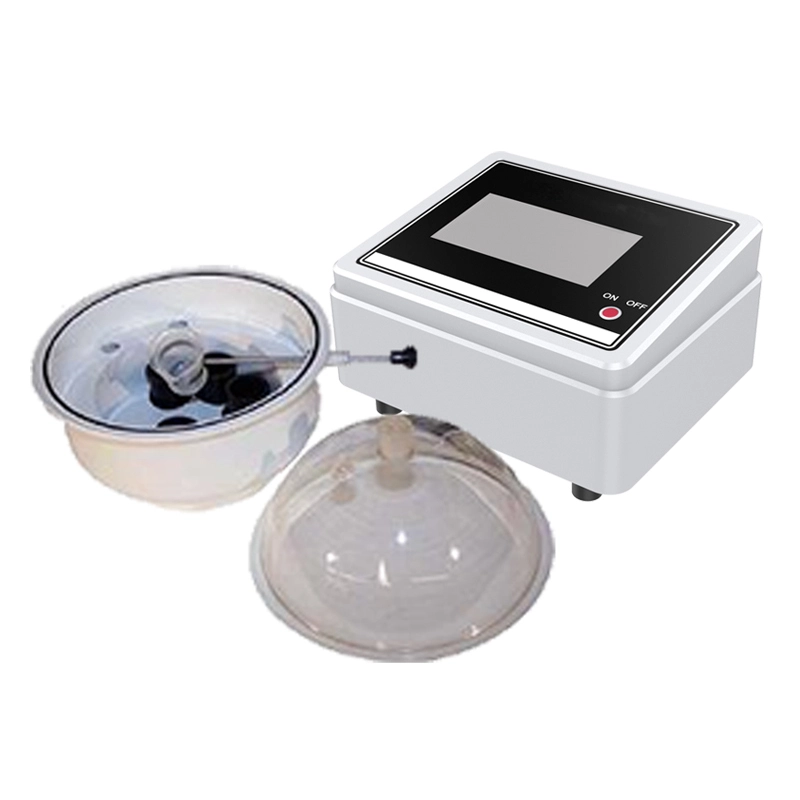

    The CMP-250S is a castable vacuum chamber for cold mounting. It can significantly improve penetration of voids and provide better edge retention. This machine is designed for impregnation of porous materials, such as specimens for failure analysis with cracks, porous casts, electronic components, rocks minerals, ceramics, etc. Its large vacuum chamber allows for 11 1.5inch molds to be processed simultaneously. Coloured HMI touch screen and built-in vacuum pump allows the users to set pressure and time easily.


    Product Feature


     4 inch coloured touch screen, easy to use;

     Built-in vacuum pump and pressure sensor keeps user setting vacuum in the chamber;

     The vacuum pump stops automatically when time is over;

     Large vacuum chamber;

     Transparent cover, easy to observe samples;

     Retractable arm, easy to use;

     Applications: epoxies resins, acrylic resins, Polyester resin, etc.



    Specification


    Description

    CMP-250S

    Ultimate Vacuum

    80Pa

    Mold size

    ● 30mm 1,1.25,1.5, 2.0inchRectangular

    Power

    110-220V50/60Hz, Single   Phase

    Chamber (WxDxH)

    300*300*300

    Pump(WxDxH)

    180*150*110

    Weight

    4Kg

    Epoxies resins

    ● 1sets

    Mould Release

    250ml

    ●StandardOption




    Castable Vacuum Mounting CMP-250S 3

    Insert hard mould silicone soft film

    Castable Vacuum Mounting CMP-250S 4

    Epoxy Set

    Castable Vacuum Mounting CMP-250S 5

    Acrylic Suit
