certificated optical gaging products factory price for small areas
Model:
VP420-3020
Code#:
#511-450
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. With the advanced equipment, Sinowon optical measurement systems is manufactured in a high efficient manner. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
2. Using this product means less human error. It can perform repetitive tasks and is less likely to make mistakes than an employee. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. This product has good fiber elasticity. When it is pulled to a certain length for a certain period of time, its original shape can still be retained. Its quality and accuracy are improved every year
4. It has good chemical stability. It does not readily react with light, heat, acids, bases and organic solvents. It is up to both domestic and international standards
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. takes an important part and will have a wide development prospects in optical gaging products field.
2. We have built up an in-house team of professional designers. Throughout the design stage, they are able to bring innovative design ideas to our customers and support them all the time.
3. Sinowon Innovation Metrology Manufacture Limited. is committed to doing domestic vertical projector into a first brand. Check now!
1. With the advanced equipment, Sinowon optical measurement systems is manufactured in a high efficient manner. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
2. Using this product means less human error. It can perform repetitive tasks and is less likely to make mistakes than an employee. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. This product has good fiber elasticity. When it is pulled to a certain length for a certain period of time, its original shape can still be retained. Its quality and accuracy are improved every year
4. It has good chemical stability. It does not readily react with light, heat, acids, bases and organic solvents. It is up to both domestic and international standards
Product Feature
◆ Ø400mm optical projection screen;
◆ Projector body lifting focus system;
◆ Stage can bear 30Kg Large load capacity;
◆ Telecentric Cold LED lightsoruce;
◆ High powerful and colorful DRO DP400;
◆ Optional 5x optical objective is available;
Specification

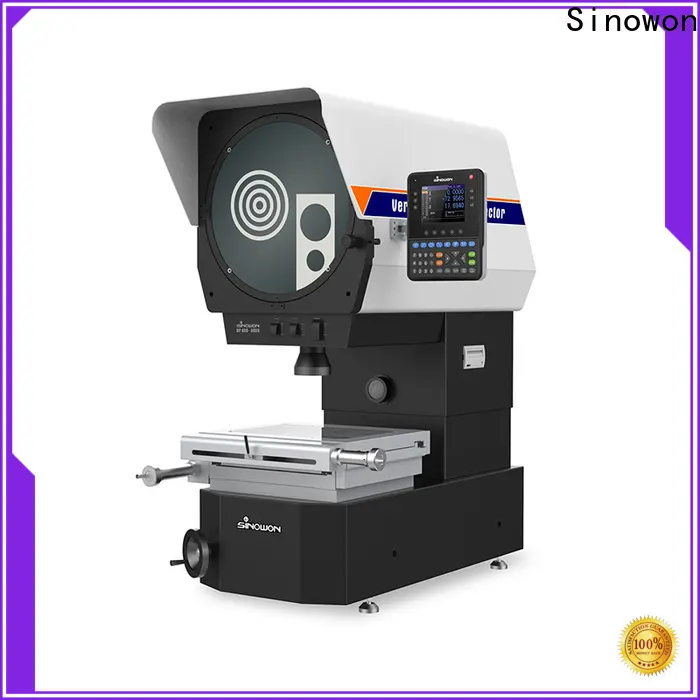

| Product Name | Ø400mm Digital Vertical Profile Projector |
| Reverse Image | VP420-3020(#511-450) |
| Obverse Image | VP420-3020Z(#511-430Z) |
| Metal Stage Size | 458x358mm |
| Glass Stage Size | 356x248mm |
| Stage Travel | 300x200mm |
| Product Dimension(L×W×H) | 1003x617x1309mm |
| Packing Dimension(L×W×H) | 1200x800x1580mm |
| Focusing | 100mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Load Weight | 30Kg |
| Screen | Dia:φ412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6 | |
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout |
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED |
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,150W |
| Gross/Net Weight | 280/230kg |
Objective lens:
| Magnification | VP400-5X | VP400-10X | VP400-20X | VP400-50X |
| Code # | 511-100 | 511-150 | 511-160 | 511-170 |
| Field of View | φ80mm | Φ30mm | Φ15mm | Φ6mm |
| Working Distance | 65mm | 80mm | 67.5mm | 51.4mm |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. takes an important part and will have a wide development prospects in optical gaging products field.
2. We have built up an in-house team of professional designers. Throughout the design stage, they are able to bring innovative design ideas to our customers and support them all the time.
3. Sinowon Innovation Metrology Manufacture Limited. is committed to doing domestic vertical projector into a first brand. Check now!
