    CMOS Industrial Eyepiece Camera SMC200 2

    SMC200 with 2-million-pixel color CMOS industrial camera, it is developed for binocular microscopes that can only be observed under the microscope with the naked eye. The miniature camera is processed into the eyepiece shape, inserted into the eyepiece tube, and the image is observed and photographed in real time. Electronic eyepiece from the beginning of simple image processing to the current high definition, high color reproduction.

    Product Feature


     High-resolution image sensor, high definition;

     1/3.2 inch progressive scan image sensor and 2million pixel;

     USB2.0 Digital transmission port, Max speed up to 480mps;

     It is brightness, contrast, saturation, sharpness and gamma value software adjustable, etc;

     Automatic white balance, automatic exposure;

     Support Windows2000\XP2\Vista\Win7 system, do not need drive;

    Max resolution is 1600*1200;

    Hardware and software support exposure time, color difference, brightness, contrast, saturation, etc. Post-image enhancement;


     Specification



    1/3.2” Colorful 2million pixel COMS

    Resolution1600*1200 Effective Pixels

    Pixel size

     2.8Umm*2.8um

    Frame rate

    15fps@ 1600*1200/30 fps @640*480

    Shutter

     Electronic shutter

    Signal noise ratio

    42.3dB

    Scanning method

    line-by-line scan

     Working Temperature

    0-50℃

    Sensitivity

    1.8v/1ux-sec@550nm

    Spectral response

    400nm-1000nm

    Data interface

     USB2.0(480 Mbit/sec)

    Power Supply

    No need external supply

    Current

    200Ma

    White balance

    automatic / manual

    Automatic exposure control

    Automatic

    Software

     Image display / image capture / video

    Application

    Microscopic imaging / general image acquisition / macro imaging, etc



    Note

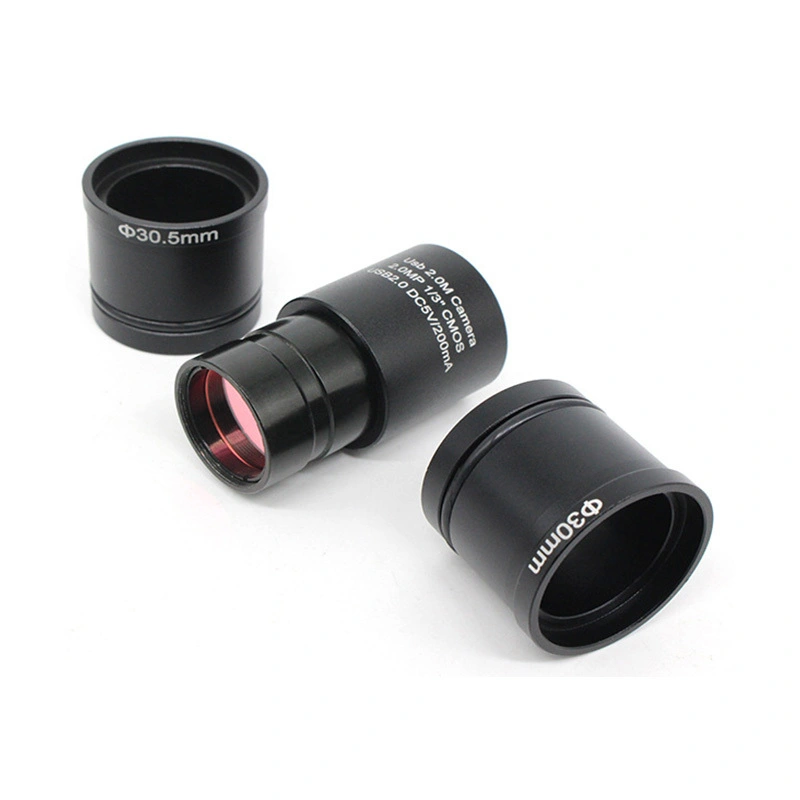

    Electronic eyepieces have two interfaces: bio-electronic eyepieces and stereo electronic eyepieces:The stereo eyepiece is equipped with an interface that is commonly used 30MM; the biological electronic eyepiece has no interface, and the electronic eyepiece can be directly inserted into the lens barrel.


    CMOS Industrial Eyepiece Camera SMC200 3

    CMOS Industrial Eyepiece Camera SMC200 4
