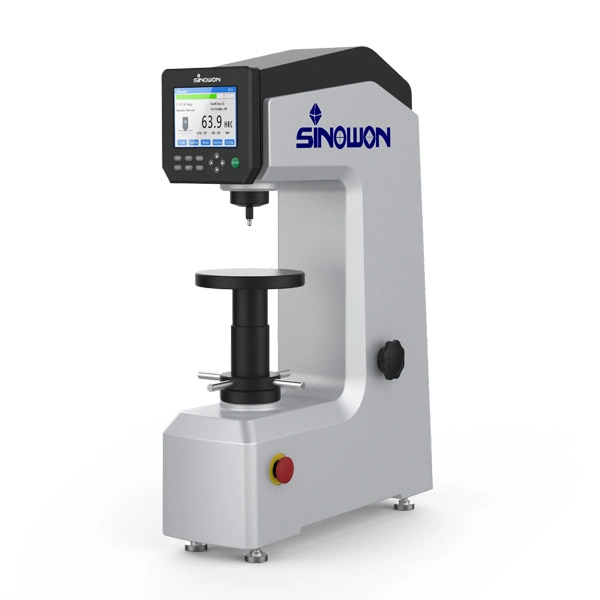

DigiRock DS3 Digital Superficial Rockwell Hardness Tester
5.0
Model:
DigiRock DS3
Code#:
811-230
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
GB/T230.2, EN-ISO 6508 , ASTM E-18
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Feature
◆ Semi automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.
◆ Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
◆ Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
◆ Auto hardness conversion to others scales, no need to check table and improve working efficiency.
◆ Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
◆ With 2000 single testing results and 1000 group results. Reviewing results and analysis.
◆ Optional bluetooth mini printer is available.
Specification
| Product Name | Digital Superficial Rockwell Hardness Tester |
| Model | DigiRock DS3 |
| Code# | 811-230 |
| Rockwell Scales | HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
| Preliminary Test Force | 3Kgf(29.42N) Permitted Error：±2.0% |
| Addtional Test Fore | 147.1N(15kg)、294.2N(30kg)、441.3N(45kg) Permitted Error:±1.0% |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | 5.2” Touch Screen, Resolution:640x480 |
| Resolution | 0.1HR |
| Loading Control | Auto Loading/Dwell/Unloading |
| Hardness Conversion | HRC、HV、HBS、HBW、HK、HRA、HRD、HRB |
| Conversion Standard | ASTM、DIN |
| Language Option | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Correction Range | -3.0HR to +3.0HR, Step 0.1HR |
| Data Memory | 2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis |
| Data Output | Optional Blue Tooth Mini Printer |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | GB/T230.2, EN-ISO6508, ASTME-18 |
