Custom determining hardness micro vickers hardness tester hardness variations Sinowon

Company Advantages
1. The performance of micro vickers hardness tester can be adjusted with micro hardness tester price.More than 10,000 pcs have been delivered and installed
2. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology. always putting customer first in the first place is essential for the development of Sinowon.
3. As the central of micro vickers hardness testing procedure, micro vickers is both qualified with high performance and high quality. The product is analyzed and tested cautiously before packing
4. It is very efficient for hardness testing machine to reduce the energy cost of micro vickers hardness tester price. The product is CE certified for the European market

◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

◆ It is equipped with 10X and 40X HD lens and HD USB camera, the instrument measured images in optical imaging system and video of great quality;

◆ Combined with MV-1000 video measuring devices, It improves efficiency, reduces visual fatigue of the operator.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

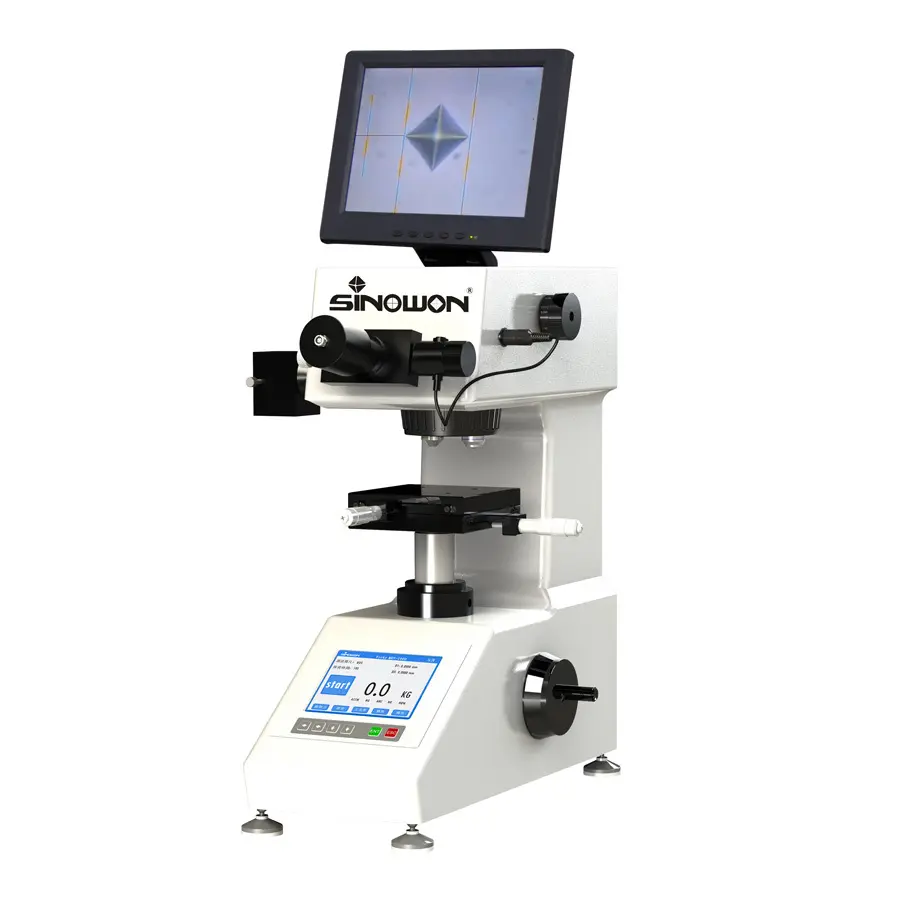

Product Name		Micro Hardness Tester with Measurement Monitor
Model		MV-1000V
Code#		823-101V
Loading force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	Kgf	10、25、50、100、200、300、500、1000
Indentation Measuring Device		MV-100
Switch of Objectives and Pressure Switch		Auto-turret
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x/40x；Measurement：10x/40x
Video System		CMOS Measuring Eyepiece, 8 "Display
Dwell Time		5-60s
Measuring Range		1HV-2967HV
X-Y Anvil		Size：100X100mm；  Travel：25mm X 25mm;Resolution：2um
Maximum Height and Width of Specimen		Maximum Height：70mm; Maximum Width：95mm
Power supply		AC220/50Hz; AC110V/60Hz
Dimension		425X245X490mm
Gross/Net Weight		45kg/35Kg
Executive Standard		GB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384

Company Features
1. Our experienced team, in conjunction with leading industry experts from our supply partners utilise our state of the production equipment to develop the innovative micro vickers hardness tester you need.
2. Providing the customers with the best micro vickers and service is the the goal of Sinowon. Get info!
