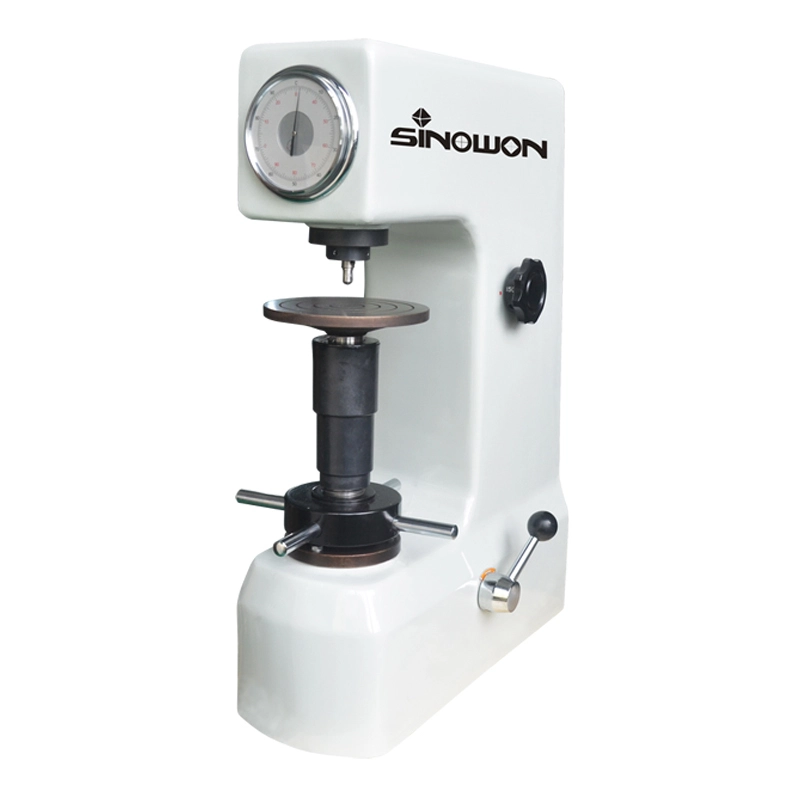

    Dial Reading Manual Rockwell Hardness Tester HR-150A 2



    Product Feature


     HRA is widely used to measure hardness of carbide alloy, quenched hardening steel after carbonized, hardened thin steel strip and plate, etc. For materials HRC > 67,  it is more likely to damage the diamond indenter if we use 1471 test force. For those materials, we had better choose HRC hardness scale which has small test force and indentation.

     HRB is suitable to test medium hardness materials such as low and medium carbon steel after annealing treatment, malleable iron, all kinds of brass, bronze, hard aluminum alloy after solution treatment and so on. The applicable scope is 20~100 HRB. when the material hardness is under 20HV, on account of the creep of metal the specimen deformation will last for a long time under the test force. The needle on indicator dial or optical projection scale moves slowly, causing difficulty in measuring precision. While when the material hardness exceeds 100 HV, the shallow indentation depth decreases sensitivity affecting measuring precision.

     HRC is most applicable to testing carbon steel after quenching or low tempering, alloy steel, tool steel, die steel, as well as chilled cast iron, titanium alloy and so on. Generally, we apply HRC scale to test materials HRB>100, and HRB scale to test materials HRC<20 avoiding influence caused by glide of indenter.


    Specification



    Product   name

    Manual   Rockwell Hardness Tester

    Model

    HR-150A

    Code   #

    811-112

    Measuring   range

    20-88HRA, 20-100HRB,20-70HRC

    Dial   pointer range

    A,C   (black) :0-100B(red):30-130

    Preliminary   test force

    10kgf   (98.07N)

    Rockwell   test force

    60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N)

    Hardness   indication

    Dial   Reading

    Resolution

    0.5HR

    Loading   control

    manual

    Max   height of specimen

    170mm

    Instrument   throat

    135mm

    Dimension

    470 x 240 x 630mm

    Packing   dimension

    540 x 420 x 700mm

    Power   supply

    AC 220V/50Hz;AC110V/60Hz

    Gross/   Net weight

    65Kg/56Kg

    Execution   standard

    GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTME-18


    Application

    Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

    Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

    Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
