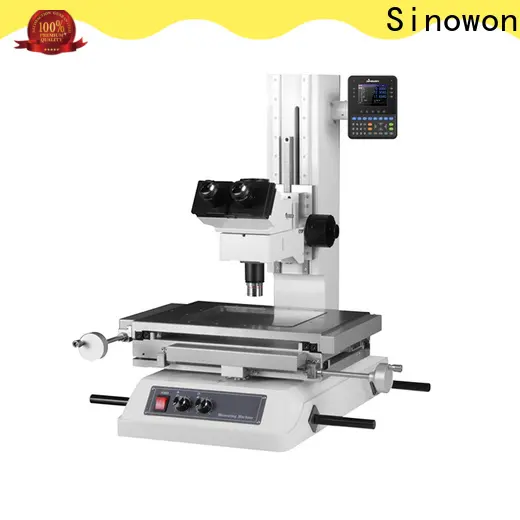

digital function of microscope inquire now for soft alloys
Model:
STM-3020A
Code#:
532-160
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. The design of Sinowon function of microscope offers a unique combination of aesthetics and functionality. The quality is reliable and the service life is long
2. The product helps improve foot stability and prevent slips and falls, and it ensures the natural movement of the feet. The product is well used in many large engineering projects
3. The product always operates stably due to high precision electric components. Its electric boards, conductor, and resistor are fabricated to withstand vibration and impact. It, up to the requirements from different industries, is widely applied
4. The product is highly resistant to wear and tear. Made of textile fibers which feature high breaking strength and fastness to rubbing, it has long durability. The Gost certificate has been obtained for the Russian market
![digital function of microscope inquire now for soft alloys 8]()
![digital function of microscope inquire now for soft alloys 9]()
![digital function of microscope inquire now for soft alloys 10]()
![digital function of microscope inquire now for soft alloys 11]()
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a global leader in function of microscope industry.
2. We possess a wide range of manufacturing facilities, covering advanced manufacturing and testing machines. These machines run in an efficient manner and enable us to meet customers' requirements in a short period of time.
3. Sinowon Innovation Metrology Manufacture Limited. makes every attempt to create products which meet customer requirements. Get more info!
1. The design of Sinowon function of microscope offers a unique combination of aesthetics and functionality. The quality is reliable and the service life is long
2. The product helps improve foot stability and prevent slips and falls, and it ensures the natural movement of the feet. The product is well used in many large engineering projects
3. The product always operates stably due to high precision electric components. Its electric boards, conductor, and resistor are fabricated to withstand vibration and impact. It, up to the requirements from different industries, is widely applied
4. The product is highly resistant to wear and tear. Made of textile fibers which feature high breaking strength and fastness to rubbing, it has long durability. The Gost certificate has been obtained for the Russian market
Product Feature
◆ Bright field observation, clear and flare less obverse image, wide field of view;
◆ Long working distance objectives, up to optical 1000x magnification;
◆ Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature;
◆ The quick-release system, which is especially useful in long-stroke measurements;
◆ Focus and measure using the fine/coarse movement handle with the large-size grips on both sides of the column;
◆ Zero-set switches (X- and Y-axis) are also located near the stage feed handles;
Specification
| Microscope Model | STM-2015A | STM-3020A |
| Code # | 532-150 | 532-160 |
| X/Y-axis travel | 200x150mm | 300x200mm |
| Scale Resolution | 0.0005mm | |
| XY Stage Measuring Accuracy at 20ºC. | (2+L/200) μm L: measuring length | |
| Observation Image | Obverse image | |
| Eyepiece Tube | Binocular Eyepiece: WF10/20 | |
| Objective Lens | Only 5x is standard delivery; Optional: 10X, 20X, 50x 100x | |
| Contour Illumination | Adjustable LED | |
| Surface Illumination | Adjustable LED | |
| Z Axis Travel Range | Standard focus travel:150mm, 200mm is optional | |
| Z Axis Focusing | Manual focusing (Coarse/fine) | |
| XY Stage Floating Function | Quick release mechanism | |
| Display Unit Function | Zero setting, Direction switching, Data output via RS-232 | |
| Power Supply | AC220/50HZ; AC110V/60Hz | |
| Optional Accessories | High-Precision Rotary Table RT4(D:165mm), RT5(262mm) | |
| Digital Readout DP300 | ||
| Quickmeasuring Measuring Software QM2.0 | ||
| CCD adapter and CCD camera | ||
Optical Specification:
| Name | Objective | Eyepiece WF10/22 | |||||
| N.A. | W.D.(mm) | f(mm)’ | R(um) | ±▽p(um) | Magnification | Visual Field（mm） | |
| 5x | 0.15 | 11.6 | 40 | 2.1 | 16.3 | 50x | ¢4.4 |
| 10x | 0.3 | 6.3 | 20 | 0.9 | 3.1 | 100x | ¢2.2 |
| 20x | 0.4 | 10.3 | 10 | 0.69 | 1.8 | 200x | ¢1.1 |
| 50x | 0.8 | 2 | 4 | 0.34 | 0.4 | 500x | ¢0.44 |
| 100x | 0.8 | 1.96 | 2 | 0.34 | 0.2 | 100x | ¢0.22 |
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a global leader in function of microscope industry.
2. We possess a wide range of manufacturing facilities, covering advanced manufacturing and testing machines. These machines run in an efficient manner and enable us to meet customers' requirements in a short period of time.
3. Sinowon Innovation Metrology Manufacture Limited. makes every attempt to create products which meet customer requirements. Get more info!
