digital hardness testing machine series for small areas
1. The latest manufacturing machines have been used in the production of Sinowon hardness tester price . It is fabricated by injection, stamping, wiredrawing, or polishing machines.
2. This product is highly durable in use, and is resistant to stains and fading. Even after many years of using, it will still look brand new.
3. Water purity is extremely important to pharmaceutical and biochemical industries, hence, the product is very useful for these industries.
Product Feature
◆ Semi automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.
◆ Motorized control loading, dwell and unloading, eliminates error by manual operation.
◆ Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
◆ Auto hardness conversion to others scales, no need to check table and improve working efficiency.
◆ Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
◆ Save 2000 single testing results and 1000 group results for reviewing and analysis.
◆ Optional blue tooth mini printer is available.
Specification

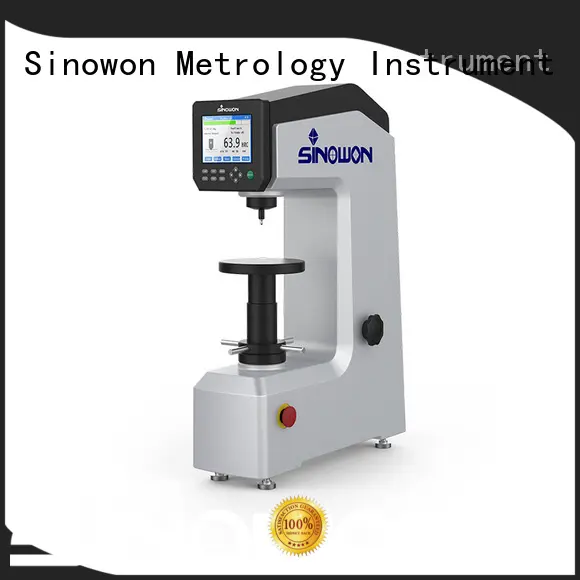

| Product Name | Digital Rockwell Hardness Tester |
| Model | DigiRock DR3 |
| Code# | 811-130 |
| Rockwell Scales | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRP、HRR、HRS、HRV |
| Preliminary Test Force | 10Kgf(98.07N) Permitted Error：±2.0% |
| Addtional Test Fore | 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) Permitted Error：±1.0% |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | 5.2” Color Touch Screen, Resolution:640x480 |
| Resolution | 0.1HR |
| Loading Control | Auto Loading/Dwell/Unloading |
| Hardness Conversion | HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、 HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB |
| Conversion Standards | ASTM、DIN |
| Language Option | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Correction Range | -3.0HR to +3.0HR, Step 0.1HR |
| Data Memory | 2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis |
| Data Output | Optional Blue Tooth Mini Printer |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | GB/T230.2, EN-ISO6508, ASTM E-18 |
Standard Delivery:
| Product Name | Code# | Product Name | Code# |
| Instrument Main Body | 811-130 | 1/16" Ball Indenter | 811-411 |
| Hardness Block (57-70) HRC | 811-641C | 1/16" Ball | 811-421 |
| Hardness Block (20-33) HRC | 811-611C | Diamond Spheroconical Indenter | 811-401 |
| Hardness Block (85-100) HRB | 811-641B | Weight A | 811-741 |
| Ø 150mm Flat Anvil | 811-541 | Weight B | 811-751 |
| Ø 60mm Flat Anvil | 811-521 | Weight C | 811-761 |
| Ø 40mm V-grooved Anvil | 811-511 | Power Cable | 811-801 |
| Accessories Box | 811-901 | Instrument Manual | DigiRock DR3 |
Application
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a reliable manufacturer and supplier of hardness tester price . We boast a wealth of experience in designing and manufacturing high-quality products.
2. From technicians to production equipment, Sinowon has strong technical force.
3. Sinowon Metrology Instrument will keep following the purpose of 'Think for customers, supply high quality products'. Check it! Sinowon holds the belief that pursuing the excellence will bring more benefits for itself. Check it! We aim to supply the best hardness testing machine with most competitive price. Check it! Sinowon Innovation Metrology Manufacture Limited. firmly believes that quality above everything. Check it!
