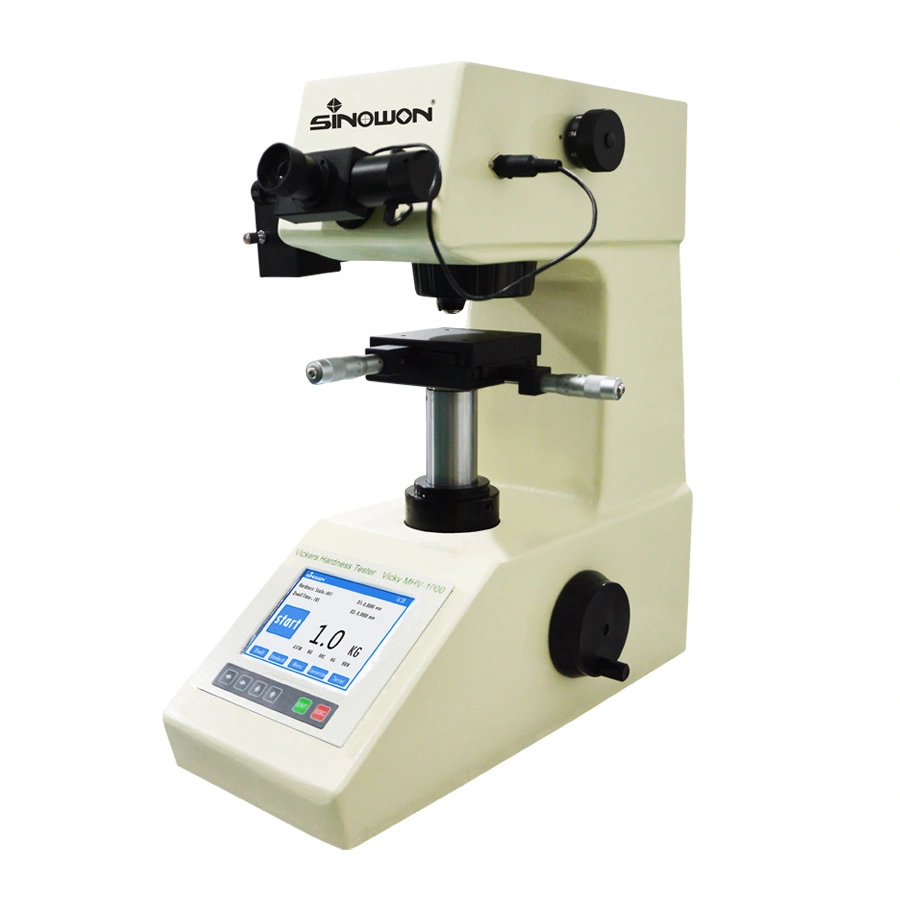

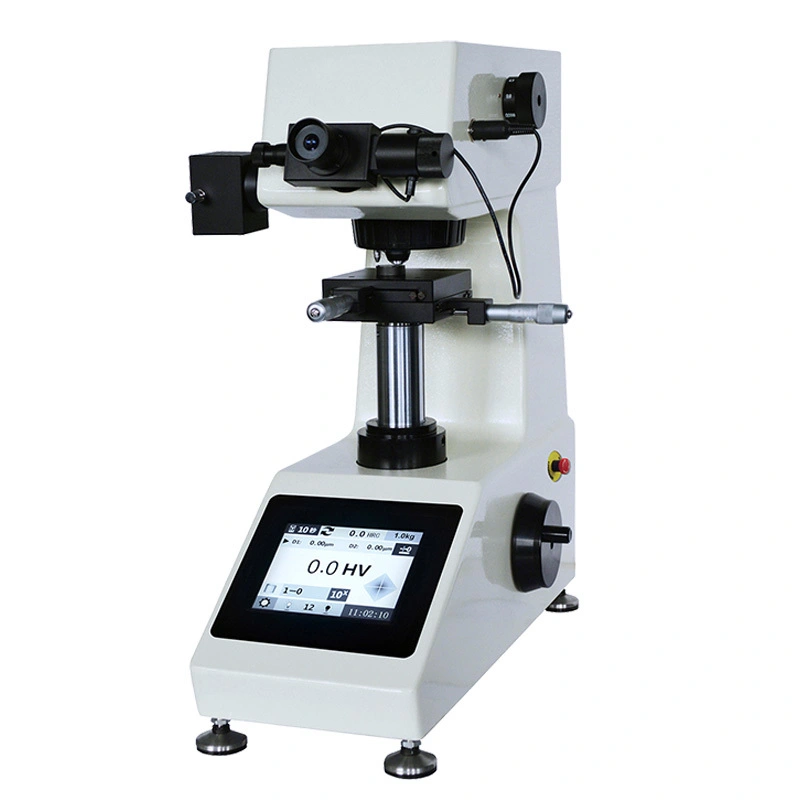

Vicky MHV-1000 Color Touch Screen Digital Micro Vickers Hardness Tester 1
Vicky MHV-1000 Color Touch Screen Digital Micro Vickers Hardness Tester 1

Vicky MHV-1000 Color Touch Screen Digital Micro Vickers Hardness Tester

    oops...!

    no product data.

    Go to homepage

    Vicky MHV-1000 Color Touch Screen Digital Micro Vickers Hardness Tester 2


    Characteristics


    ◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, max loading force at 1Kgf(Vicky MHV-1000).

    ◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

    ◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

    ◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

    ◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

    ◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

    ◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error. MV series vickers software is recommended, includes USB camera, C-mount adapter and computer.



    Application Range


    ◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

    ◆ Measuring hardness of the surface of a part, small parts or small areas;

    ◆ Measuring individual micro-structures;

    ◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.




    Specification


    Product NameColor Touch Screen Digital Micro Vickers Hardness Tester
    ModelVicky MHV-1000
    Code#823-160
    Loading forceN0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
    Kgf 10、25、50、100、200、300、500、1000
    Lens & Indenter SwitchAuto Turret
    Data TransferBluetooth;RS232 is optional
    Hardness Resolution1HV
    Measuring Range1HV~2967HV
    Loading ControlAuto Loading, Dwell and Unloading
    Magnification of ObjectiveObservation:10x/40x;Measurement:10x/40x
    Hardness Conversion

    HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB

    Eyepiece10x Digital Eyepiece
    Dwell TimeAdjustable 5~60s
    X-Y AnvilSize:100*100mm;Travel:25*25:Resolution:2um
    IlluminationLED Cold Light(Brightness adjustable)
    Display 5.2" Touch Screen, Resolution 640*480
    Conversion StandardASTM、DIN
    LanguageChinese, English, German, Portuguese, Turkish,  Czech, Korean
    Max Height of Specimen70mm
    Instrument Throat95mm
    Power SupplyAC220V/50Hz
    Dimension/Packing Dimension478 x 162 x 518mm/500 x 490 x 700mm
    Gross/Net Weight45Kg/35Kg
    Conform standardsGB/T4340、JIS Z2245、ASTM—E92、ISO6507
