A professional manufacturer of measuring & testing equipment.

digital heighten hardness Sinowon Brand application of brinell hardness test manufacture 1
digital heighten hardness Sinowon Brand application of brinell hardness test manufacture 2
digital heighten hardness Sinowon Brand application of brinell hardness test manufacture 1
digital heighten hardness Sinowon Brand application of brinell hardness test manufacture 2

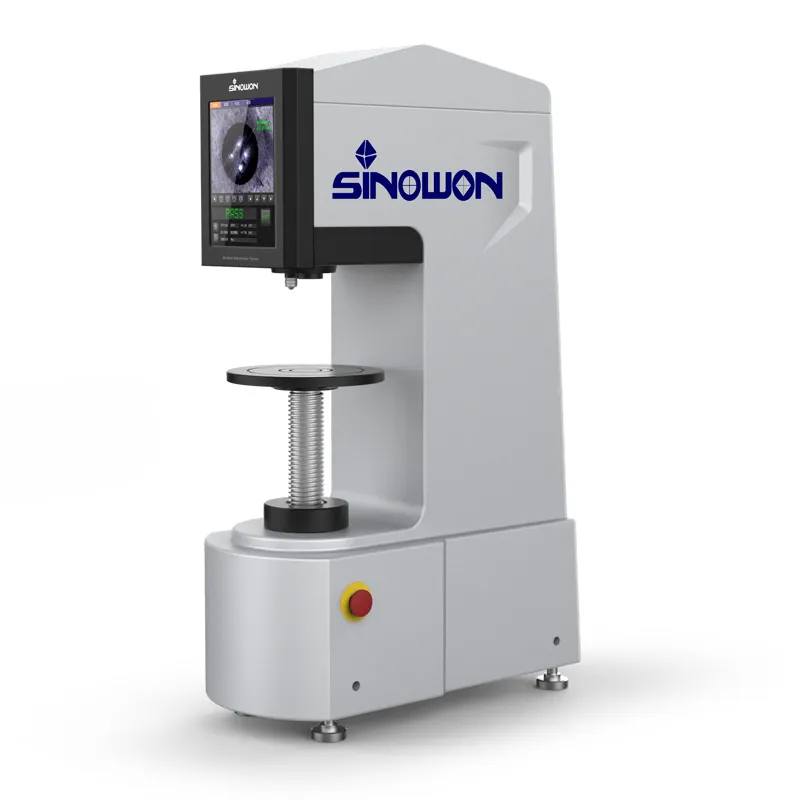

digital heighten hardness Sinowon Brand application of brinell hardness test manufacture

Model:
AutoBrin AB-3000V
Code#:
831-160
Accuracy:
≤± 3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243
Certificate:
CE
Inquiry
Company Advantages
1. A quality control system is implemented for the product. Thanks to the unique design of application of brinell hardness test, we are proud to present Sinowon products to customers all over the world. A quality control system is implemented for the product
2. The product is well used in many large engineering projects. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. Thanks to the excellent properties of brinell hardness machine, brinell hardness test is popular among customers. The product is CE certified for the European market
4. The product is highly praised in many exhibitions such as Shanghai Electronica China Show. Superior king brinell hardness tester and remarkable king hardness tester creates Sinowon.
5. brinell hardness can meet the more and more complicate requirements from the market with brinell hardness test unit, whcih has wide development prospects. It is up to both domestic and international standards


digital heighten hardness Sinowon Brand application of brinell hardness test manufacture 3



Product Feature


Equips with OS Win10, and already installed BrinScan V3.0 Auto Brinell Measurement software.

Apply vision measurement technology, one key operation, realize auto loading, dwell, unloading and indentation measurement.

AutoBrin AB-3000V can display data statistics, hardness conversion, limitation setting, graph, measurement mode setting, etc.

Loading by high accuracy force sensor , and can compensate force loss during loading by micro central processing unit.


Specification



Name

Full Auto Brinell Hardness Tester

Model

AutoBrin AB-3000V

Code#

831-160

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range

(8-650) HBW

Hardness Resolution

0.1HBW

Measurement

Automatically

Objective

1x and 2x

Software

Win 10 OS, MS Office Brinell Measurement Software BrinScan V3.0

Vertical Space

260mm

Horizontal Space

150mm

Dimension

622x313x992mm

Gross/Net Weight

180Kg/150Kg

Power Supply

AC 220V/110V±5%,50~60 Hz

Conform Standard

GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12  JIS Z2243

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has a front-runner status when speaking of brinell hardness test.
2. Let Sinowon Metrology Instrument build and manage a team of professionals for your business.
3. The Core Values of Sinowon Innovation Metrology Manufacture Limited. is creating value for customers. Ask online!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
