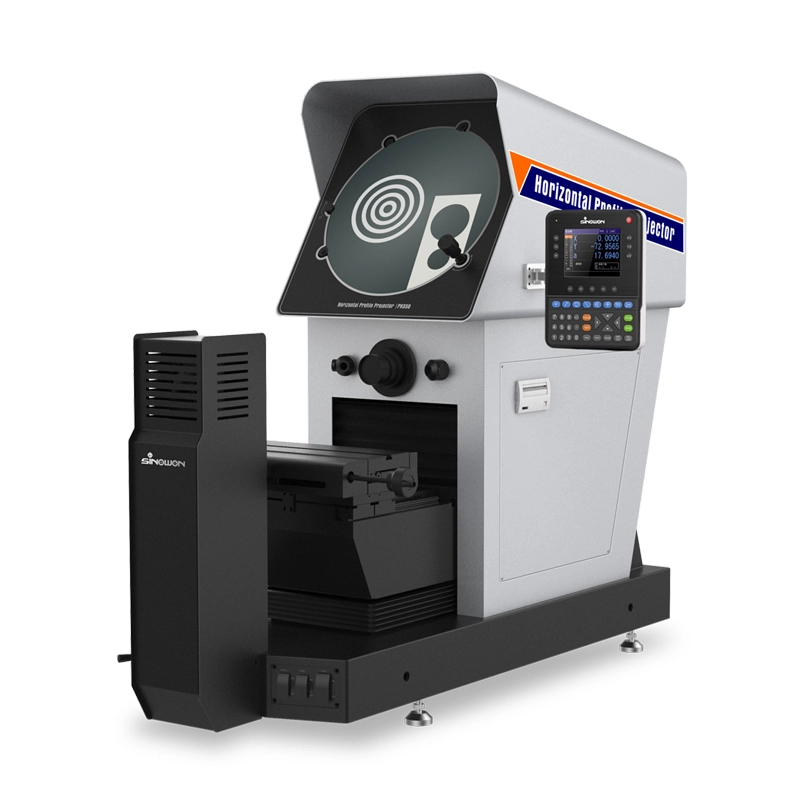

Digital Horizontal Profile Projector PH350-2010 Ø350mm 1
Digital Horizontal Profile Projector PH350-2010 Ø350mm 1

Digital Horizontal Profile Projector PH350-2010 Ø350mm

    oops...!

    no product data.

    Go to homepage

    Digital Horizontal Profile Projector PH350-2010 Ø350mm 2



    Product Feature


     The lifting system adopts linear guide rail and precision screw drive, which makes lifting drive more comfortable and stable;

     Coating process reflector, clearer image and great dustproof;

     Adjustable contour and surface illumination, to meet with difference workpiece demand;

     Imported high light and long using life LED illumination ,to ensure precision measurement demand;

     High resolution optical system with clear image and magnification error is less than 0.08%;

     Powerful Bi-axial fan cooling system,highly increase using life;

     Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

     Built-in Mini-printer, can print and save data;

     With standard 10X objective, optional,20X,50X objective,rotary table, foot switch ,clamp, etc.


    Specification



    Product NameØ350mm Digital Horizontal Profile Projector
    ModePH350-2010
    Code #512-350
    Working Stage Size355x126mm
    Working Stage Travel200x100mm
    Focusing90mm
    Accuracy≤3+L/200(um)
    Resolution0.0005mm
    Loading Weight15Kg
    Screen

    Screen diameter:φ380mm, Effective range ≥ Ø350mm

    Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’
    Digital ReadoutDP400 (510-340)Multifunction colorful LCD digital readout
    IlluminationContour Illumination:3.2V/10W LED; Surface Illumination:220V/130W halogen lamp
    Working EnvironmentalTemp:20℃±5℃,Humidity:40%-70%RH
    Power SupplyAC110V/60Hz; 220V/50Hz,200W


    Optional Objectives


    Magnification10X20X50X
    Field of Viewφ35mm φ17.5mm φ7mm
    Working Distance75mm69mm44mm


    Product Details



    Digital Horizontal Profile Projector PH350-2010 Ø350mm 3
    Digital Horizontal Profile Projector PH350-2010 Ø350mm 4
    Digital Horizontal Profile Projector PH350-2010 Ø350mm 5
    Digital Horizontal Profile Projector PH350-2010 Ø350mm 6
