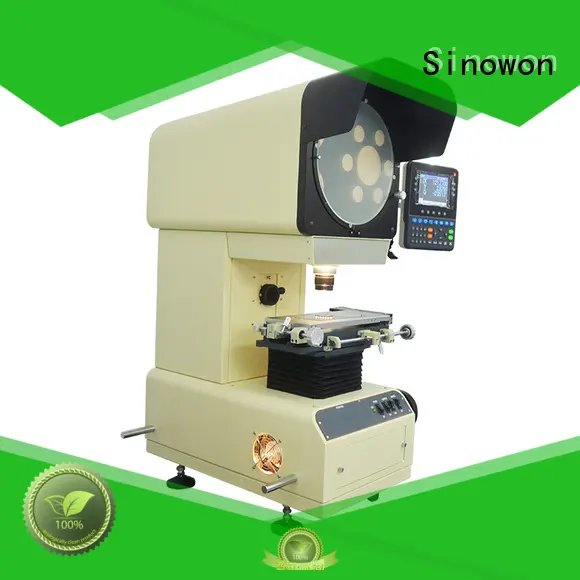

Digital Profile Projector ø300mm Comparator VT12-1505 DRO DP400

Model:
VT12-1505
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Product Comparison
Sinowon has professional production workshops and great production technology. optical measurement instruments we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.Compared with similar products, Sinowon's optical measurement instruments has the following advantages.
  • Digital Profile Projector ø300mm Comparator  VT12-1505 DRO DP400 6
    v s
    Digital Profile Projector ø300mm Comparator  VT12-1505 DRO DP400 7
Company Advantages
1. Sinowon Innovation Metrology Manufacture Limited. adopts imported raw materials to achieve high-end quality.
2. The product is rather competitive with the excellent performance and long service life.
3. Thanks to its easy operation and maintenance during its service life, this product can greatly help reduce operation costs.
4. The product directly contributes to improving productivity. Because it can work much faster than human and reduce errors, saving time for production.


Digital Profile Projector ø300mm Comparator  VT12-1505 DRO DP400 8

It can effectively test all kinds of workpieces with complex shapes, such as templates, punching pieces, cams, gears, threads by profile comparative and coordinate measuring ways. It is widely used in different measuring departments and inspection stations of following industries: machinery, watch-making, electron, instruments & meters, science & research academes etc, including spaceflight & aviation industry.


Product Feature


Two kinds of illuminations (high and low levels) meet the  measuring requirements of various workpieces.

Non-sphere mirror illumination system is processed by special technology, which makes view field symmetry & clear, and assures a higher accuracy.

Axial flow fan helps to radiate heat, so it has a very strong cooling effect, this is incomparable in analogy products .

Small bulk, low weight, so it is very easy to move about.

Long-life illuminating bulb is suit for long time use.

Various optionals of components make measurement more convenient and rapid.

It is equipped with multifunction counter and miniature printer.

Reflection illumination system is convenient to adjust, which is stable and reliable and operation is comfortable.

The door of base is designed to open from front door, which makes maintenance more convenient.


Specification



Screen Diameterφ300mm
Rotating Range0°~360°
Indicator scale of rotating angle1’
Accuracy of rotating angle6’
Worktable Size340mm×152mm
X Coordinate150mm
Y Coordinate50mm
Z Coordinate80mm
Accuracy of X,Y axis(4+L/25) μm “L” is indicated with “mm”


Objective lens:


Magnification of objective lensView field of object (mm)Working distance of objective lens
10XΦ3075
20XΦ1569
50XΦ626
100XΦ326


Product Details



Digital Profile Projector ø300mm Comparator  VT12-1505 DRO DP400 9
Digital Profile Projector ø300mm Comparator  VT12-1505 DRO DP400 10
Digital Profile Projector ø300mm Comparator  VT12-1505 DRO DP400 11
