A professional manufacturer of measuring & testing equipment.

durable brinell hardness test experiment factory price for cast iron 1
durable brinell hardness test experiment factory price for cast iron 2
durable brinell hardness test experiment factory price for cast iron 1
durable brinell hardness test experiment factory price for cast iron 2

durable brinell hardness test experiment factory price for cast iron

Model:
QB-500
Code#:
838-390
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T4340, ISO6506/6507,ASTM E10-12/E92 JIS Z2243
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon automatic brinell hardness tester is sophisticatedly designed. It is an outcome of the vast technical expertise of building systems, materials and computer devices and constant alteration of models. Its packing is made seriously to guarantee the safety during shipment
2. Due to its bright market prospects, this product has won many attentions so far. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. The product will always deliver the desired consistency. It is programmed for precise and repetitive motion, which is less likely to make mistakes. The product is CE certified for the European market
4. This product is not easy to collect bacteria. The antibacterial agent is added to the fabric, and the antibacterial effect is up to 99%. A team of experienced talents is gathered to support the product sales

durable brinell hardness test experiment factory price for cast iron 3



Introduction

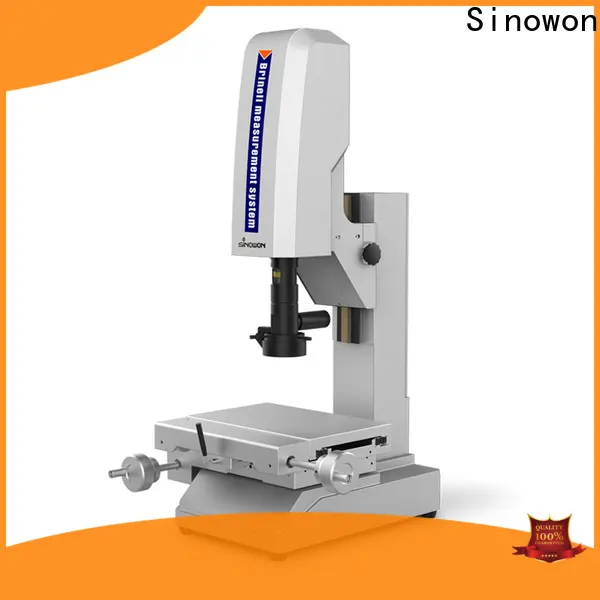

QB-500 high accuracy Brinell optic measurement system mainly used to test accuracy of hardness block for manufacturer and verification lab, also available for specimens Brinell indentation measurement.



Features


◆ Apply telecentric zoom lens, can measurement Brinell indentation accurately on mirror surface and rough surface.

◆ High accuracy microscope stage with travel 100 x 50mm, supportt specimen weight at max 15Kg.

◆ Non-touch optical measurement, with laser navigation, easily to find indentation.

◆ By BrinScan V2.0 software, realize auto measurement.



Specification



Name

High accuracy Brinell optic measurement system

Model

QB-500

Code#

838-390

Hardness Resolution0.01HB
Repeatability±1HB
Specimen Weight15Kg
Stage Travel100X50mm
Z Axis Travel50mm
Z Axis GuidingDovetail groove and manual driven
IlluminationAdjustable LED cold light source, coaxial light source
SoftwareBrinscan V2.0
Operation OSWin8、Win10,32/64bit;Office
Working EnvironmentTemperature 20℃±1℃, Humidity 30~80%
Voltage220V/50HZ
Weight20Kg
Dimension

440x410x700mm





Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a trustworthy Chinese manufacturer of automatic brinell hardness tester . Our extensive manufacturing expertise was constructed over the past decades.
2. The quality of our brinell hardness test experiment still keeps unsurpassed in China.
3. Respect for customers is one of the values of our company. And we have succeeded in teamwork, collaboration, and diversity with our customers. Inquire!
