durable hardness testing machine series for small areas

Company Advantages
1. Sinowon hardness tester machine price is made by conducting stringent quality checks throughout the production process to ensure compliance with the specifications of the tent industry.
2. Our dedicated and professional team guarantees the product to be of high quality and stable performance.
3. Sinowon Innovation Metrology Manufacture Limited. is globally diversified with a worldwide reach.
4. This product provides various usage options.

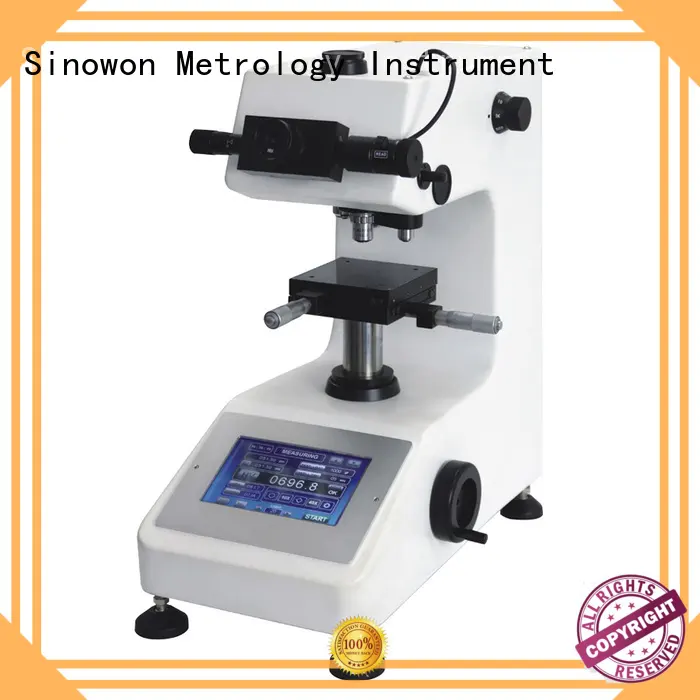

◆ Micro-Vickers hardness tester with colour touch screen;

◆ 8 inches colour touch screen , high resolution , easy to operate;

◆ Strong and stable body;

◆ LED illumination , light , adjustable , long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 250 lines encode with more precise measurement;

◆ Conversion between different scales;

◆ Two indenters available (Vickers and Knoop);

◆ Can be developed to semi-automatically or full-automatically system.

Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.

Micro Vickers and Knoop hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Model			MicroVicky VH1010
Code#			823-118
Test   Load	gf		10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000
	mN		98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807
Loading Mechanism			Automatic loading   and releasing method 50 ~100 µm/s
Dwell Time			5 ~ 99 s
Turret Mechanism			Automatic
Objective			40x/10x
Magnification of   Microscope			For measurement   :400x ( Objective 40X and Eyepiece 10X )
			For observation :   100x ( Objective 10X and Eyepiece 10X )
Mix. Measuring unit			0.1µm   (0.01µm for TS type)
Max.Specimen   Height			90mm
Max.Specimen Depth			110mm
Measuring Hardness   Scale			HV,  HK
X-Y Stage		Type	Manual
		Dimensions	200 × 180 mm
		Max. movement	100 × 100 mm
		Min. micro   graduation	1/100 mm
Light Source			LED Illuminator
Accuracy			Conform to :  JIS B -7735, ASTM E-384 and ISO 146
Photographic Device			Capable to mount   photographic device  ( Option)
Dimensions			W190 × D 430 × H   520 mm
Weight			50Kg
Power Supply			Single phase AC 220   V  50/60 Hz
