Ultrasonic Testing Stand
5.0
Model:
MU-100/MU-200/MU-300/MU-400
Code#:
882-410
Warranty:
15-month
Delivery Time:
15-day
Standard:
ASTM A1038-2017; DIN50159-2009; GB/T 34205-2017
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

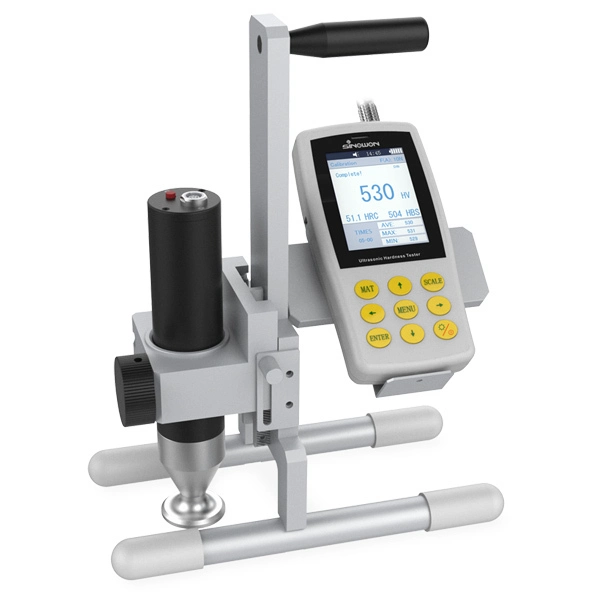

MU-100/MU-200H/MU-300H testing stand is applied with ultrasonic hardness tester for the accurate measurement in the laboratory,MU-200M/MU-300M/MU-400 are application with motorized ultrasonic hardness tester for the convinent and quick measurement.
Specification
| Commodity | Stationary Stand of Manual Probe | Portable Stand of Rotogravure roller | Portable Stand of Rotogravure roller | Portable Magnetic Testing Stand | Portable Magnetic Testing Stand | Stationary Stand of Motorized Probe |
| Model | MU-100 | MU-200H | MU-200M | MU-300H | MU-300M | MU-400 |
| Code# | 882-301 | 882-201H | 882-201M | 882-101H | 882-101M | 882-401 |
| Material | Stainless Steel | Aluminum alloy | Aluminum alloy | Aluminum | Aluminum | Stainless Steel |
| Weight | 8.8Kg | 1.6Kg | 1.6Kg | 4.5Kg | 4.5Kg | 9.5Kg |
| Dimension(LxWxH) | 200x200x332mm | 205x142x284mm | 205x142x284mm | 200x120x348mm | 200x120x348mm | 200x200x332mm |
| Packing Dimension | 320x320x440mm | 405x340x580mm | 405x340x580mm | 398x310x540mm | 398x310x540mm | 398x398x530mm |
| Application | Stationary Stand of Manual Probe | Manual Probe Test Stand For Roller Materials | Motorized Probe Test Stand For Roller Materials | Manual Probe Magnet Test Stand | Motorized Probe Magnet Test Stand | Stationary Stand of Motorized Probe |
