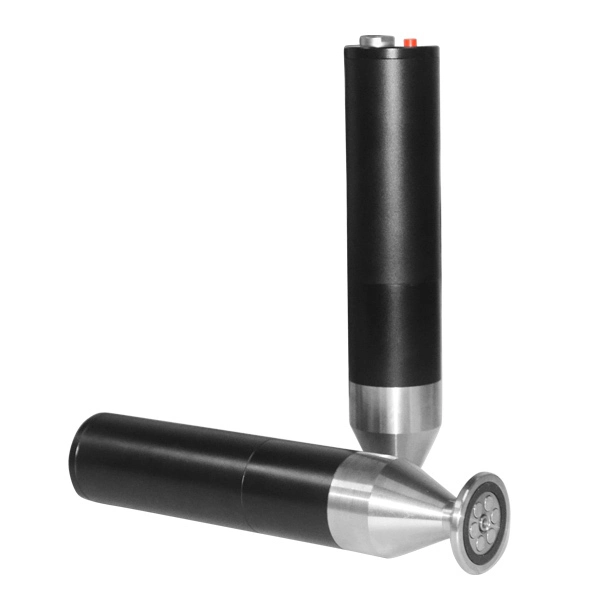

Motorized Ultrasonic Testing Probe
5.0
Model:
MP-200/300/500/800/1000
Code#:
882-241
Accuracy:
±3% HV, ±1.5HR, ±3%HB
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
ASTM A1038-2017; DIN50159-2009; GB/T 34205-2017
Certificate:
ASTM A1038-2017; DIN50159-2009; GB/T 34205-2017
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT Feature
◆ Introduced latest ultrasonic sensor technology
◆ Obtain accurate hardness value without auxiliary devices
◆ Excellent human engineering design easy to hold
◆ Quick and accurate measuring for edge and fixed position of specimen
◆ Micro indentation, no destructive for specimen
◆ Motorized control, one key fast measuring
◆ Eliminate hand shake error by manual probe, higher accuracy and repeatability
◆ More suitable for thin pieces, coating layer hardness
Specification
| Commodity | Motorized Ultrasonic Testing Probe of Ultrasonic Hardness Tester | |||
| Probe Type | MP-300 | MP-500 | MP-800 | MP-1000 |
| Code# | 882-221 | 882-231 | 882-241 | 882-251 |
| Remark Optional | Optional | Optional | Optional | Optional |
| Loading Force | 3N | 5N | 8N | 10N |
| Diameter | 46mm | 46mm | 46mm | 46mm |
| Length | 200mm | 200mm | 200mm | 200mm |
| Oscillating Rod Diameter | 3.7mm | 3.7mm | 3.7mm | 3.7mm |
| Min weight of test material | 0.3kg | 0.3kg | 0.3kg | 0.3kg |
Min thickness of test material | 2mm | 2mm | 2mm | 2mm |
Application
