    SU-330C Lengthened Ultrasonic Hardness Tester 2

    Introduction

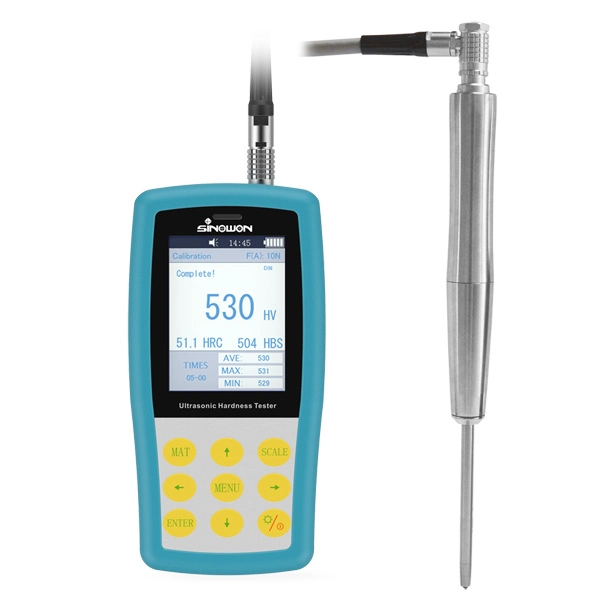

    l  SU-300C Lengthened Ultrasonic Hardness Tester is a special manual portable durometer with Lengthened probe HP-1C made by Sinowon group. It applies method of ultrasonic contact independence to make hardness testing at the spot.

    l  SU-330C is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of finished products, such as, the deep hole of mold, the tooth of gear, inclined plane of rails, etc.

    l  SU-330C conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.

    Application

         SU-330C with extended probe used to test hardness of gear and deep hole specimen, under extreme space limitation or on the floor of grooves.

    Features

    l  Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB

    l  Microscopic Indentation—— Only high-power microscope can observe the indentation.

    l  Quick Measurement——Result in 2 seconds.

    l   Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.

    l  Friendly Operation——Operate well after short training.

    l  Promised Warranty——2-Year warranty for main unit (Excludes Probe).

    l  Mass Storage——Save 1000 groups measurement data.

    l  Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.


    Specification

    Commodity Lengthened Ultrasonic Hardness Tester
    ModelSU-330C
    Code#882-141C
    ProbeStandard 10N:HP-1C;Optional 20N:HP-2C
    Hardness Range(ASTM)

    HRC:20-68;HRB:55-100;HRA:37-85;HBW:50-650;HV:100-1500;Mpa:255-2180N/mm

    Measuring Accuracy(%)

    Scales﹤250HV250~500HV500~800Hv﹥800HV
    HV0.16789
    HV0.36789
    HV0.85567
    HV15567
    HV55555
    HV105555
    Hardness ScalesVickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
    LCDColor Screen
    Data DisplayLCD Backlight, Adjustable
    LanguageChinese, English, German, Portugese, Turkish
    Data OutputRS232 Hyper Terminal/Bluetooth Printer
    printBluetooth
    Data StorageTo save 1000-groups of measuring data and 20-groups of calibration data
    Word inputLetters and numerals
    Working EnvironmentTemperature: -10°C to 50°C Humidity :30%-80% R.H.
    Battery VoltageRechargeable lithium battery ; Voltage :4.2V, 4800mAh
    Recharger VoltageAC220V/50Hz, 110V/60Hz
    Main unit Dimension and WeightMain unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
    Packing Dimension and WeightPacking Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight (Standard Delivery)4.3Kg


    Standard Delivery:


    Product NameCode #Product NameCode #Product NameCode #
    Instrument Main Body882-141C10N Manual Extended  Probe882-321CAnti Vibration Case882-901
    Standard Rockwell Block882-641Probe Cable882-801Screw882-951
    USB Recharger882-851COM Cable882-810Operation Manual/SU-330C
    Qualification CertificateSU-330CPacking ListSU-330CWarranty CardSU-330C


    Application
