efficient color video camera factory for precision industry
1. Compliance with recognized safety standards is necessary for Sinowon vision computer software to be recognized. These can be in the form of test reports from recognized testing laboratories. Many international famous manufacturers choose this product for its premium quality
2. QC is strictly incorporated into every procedure of the production of this product. It, up to the requirements from different industries, is widely applied
3. One huge benefit of this product is its incredible durability. Made of hard materials, it is unlikely to get scratched or damaged by basically anything. The production is supported by professional engineers
4. Containing no heavy metals such as lead, cadmium, and mercury that can not biodegrade, it causes no pollution to the land and water. The product performs well in program control and material use reduction
5. The product has a long service life. The design of this product has been optimized to maximize the efficiency and performance of the refrigeration system. It is aimed at more than 60 countries and regions for exports

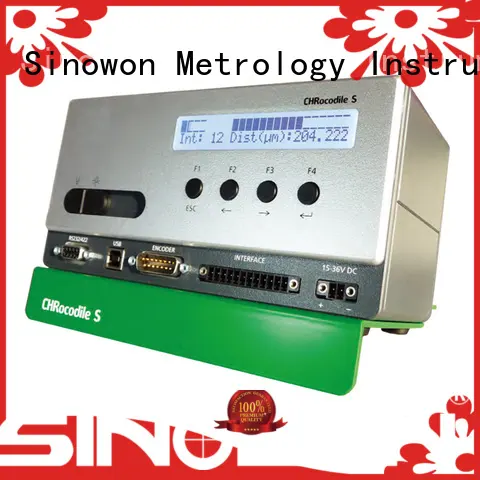

The CHRocodile S optical sensor is the all-rounder with an excellent price/performance ratio. It is perfectly suited for challenging measuring tasks, such as the non-contact measurement of topography and thickness. The sensor employs two different methods of measurement and thus is able to measure thicknesses of a wide measuring range.
The extraordinarily high dynamic response and the outstanding signal-to-noise ratio of the CHRocodile sensors ensure the best measuring results on surfaces with differing reflectivity and from different angles.
Characteristics
EFFICIENT
◆Precise
◆Rapid
◆Non-contact
VERSATILE
◆Distance and topography
◆Wide thickness measuring range
◆Measurements on all surfaces
◆Inline and offline
User Friendly
◆Maintenance-free
◆Simple to integrate
◆Nondestructive measurement
◆Robust
◆Automatic light control
Specification
Application | Distance, thickness |
Measurements /second | 32 - 2000 |
Interferometric Measuring Range 1) | 3 μm - 180 μm |
Chromatic Measuring Range | Depends on optical probe |
Pitch Error 2) | < 10 -3 |
Linearity Error 2) | < 3.3 x 10 -4 x upper measuring range limit |
Resolution | 10 -7 x upper measuring range limit |
Reproducibility | 9 x 10 -5 x upper measuring range limit |
Number of measuring channels | 1 |
Synchronization with external devices | Trigger input, synchronizing output, 3 encoder inputs |
Interface | USB, RS-232, RS-422, 2 x analog (0 V to 10 V, 16 Bit), LVDT 3) |
Transfer Rate | RS-232 (9600 - 921600 Baud); RS-422 (9600 - 921600 Baud); USB: virtual comport (921600 Baud) |
Light Source | LED |
Length Optical Fiber4) | 2 m - 40 m (multi mode fiber) |
Fiber Connection | E 2000 |
Operating Temperature | +5°C up to +50°C |
Dimension (w x h x d) | 200 mm x 100 mm x 93 mm |
Weight | 1.1 kg |
Supply Voltage | 16 - 30 V DC (with separate power supply 90 - 264 V AC) |
Rated Power | 10 W |
1) Optical length
2) Measuring accuracy = linearity error + (pitch error x measuring value)
3) Optional
4) Metal cover up to 15 m also available
Company Features
1. Sinowon has made great achievements in color video camera industry.
2. By virtue of solid technical foundation, Sinowon Innovation Metrology Manufacture Limited. becomes forefront in machine vision software industry.
3. Our positive commitment to socially and environmentally responsible practices define the way we operate. All of our facilities employ strict energy management and waste-minimization procedures, following the principles of lean manufacturing.
