efficient micro vickers hardness tester factory for small parts

Company Advantages
1. The whole production process of Sinowon micro vickers hardness tester is guided and supervised by experienced professionals. A team of experienced talents is gathered to support the product sales
2. The style of this product indeed shows eclectic. It represents people's personaility with contrasting textures and colors. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. Sinowon micro vickers hardness tester is designed and manufactured in accordance with current market codes and guidelines. Imported materials and accessories are used in product manufacturing

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Just aim the dialog line, then it will automatically reading the length and display hardness value

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

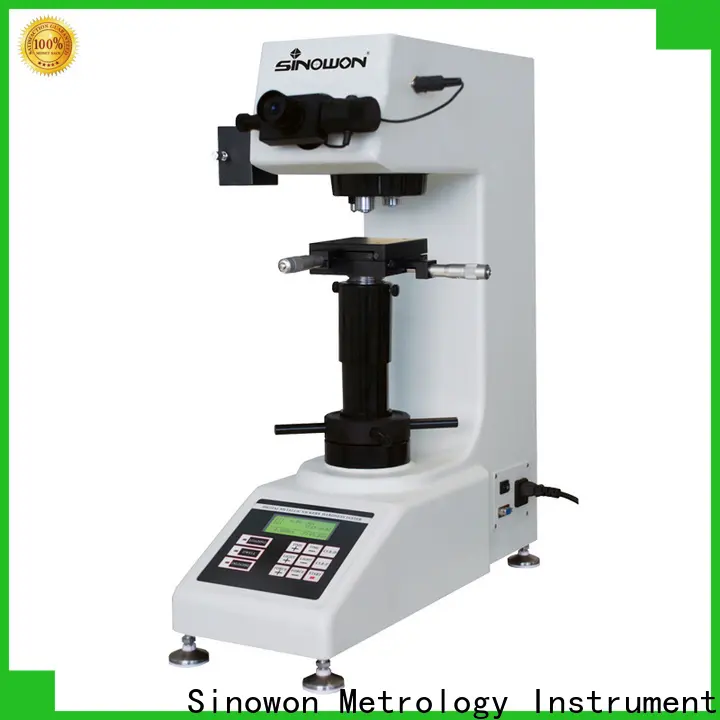

Product Name		Digital Vickers hardness tester
Model		SV-5	SV-10	SV-30	SV-50
Code#		821-101S	821-111S	821-121S	821-131S
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Supported by strong technical strength, Sinowon always provides micro vickers hardness tester with outstanding quality assurance for customers.
2. In consonance with the view of the customers has always been the development source of Sinowon. Get more info!
