Electronic Brinell Hardness Tester SHB-3000E 1
Electronic Brinell Hardness Tester SHB-3000E 2
Electronic Brinell Hardness Tester SHB-3000E 1
Electronic Brinell Hardness Tester SHB-3000E 2

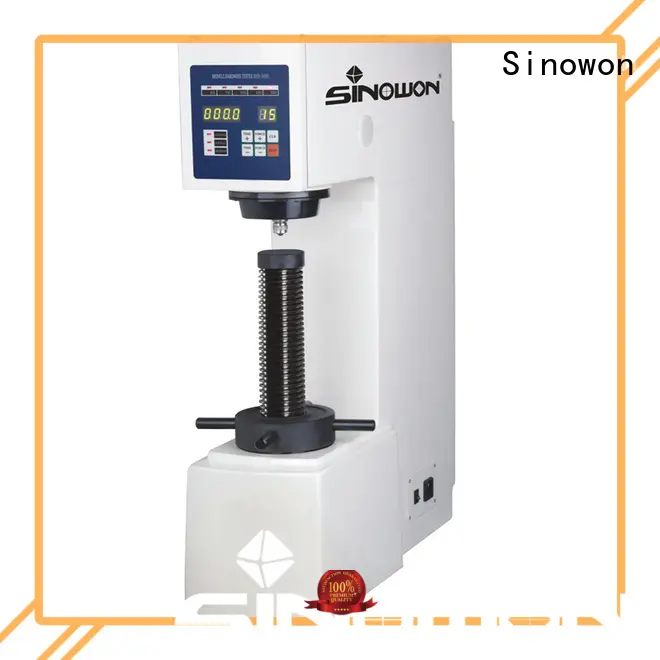

Electronic Brinell Hardness Tester SHB-3000E

Model:
SHB-3000E
Code#:
831-111
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Product Details
With the pursuit of perfection, Sinowon exerts ourselves for well-organized production and high-quality vision measuring machine.Sinowon has professional production workshops and great production technology. vision measuring machine we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.
  • Electronic Brinell Hardness Tester SHB-3000E 3
Company Advantages
1. Our brinell hardness number has its own style than other products thanks to the support of our excellent staff.
2. The product is free of burrs on its surface. The adopted mold structure is reasonable to refuse any burrs during production.
3. The product delivers powerful brightness. Thanks to its innovative design, the new type of illuminating elements can emit stronger brightness under the same energy consumption.
4. Due to these features, it is extensively popular in the industry.

Electronic Brinell Hardness Tester SHB-3000E 4



Product Feature


 SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;

 SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

 SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.



Specification



Name

Electronic Brinell Hardness Tester

Model

SHB-3000E

Code#

861-111

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the Table of Brinell Hardness Scale
Magnification of Microscope

Analogue 20x Microscope

Vertical Space

225mm

Horizontal Space

135mm

Dimension

893 x720 x747mm

Gross/Net Weight

160Kg/130Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. As a brinell hardness number supplier, Sinowon is committed to quality improvement and professional service.
2. Sinowon has been devoted to adopting the most advanced equipment to satisfy the needs of customers.
3. Sinowon Innovation Metrology Manufacture Limited. will constantly pay attention to the commercial mode and advocate innovation spirits. Call! Supported by our professional staff, Sinowon has enough confidence to produce brinell hardness test procedure . Call!
