elegant durometer with good price for thin materials

Company Advantages
1. Our rich production experience makes sure Sinowon durometer is perfect in craftsmanship. The Gost certificate has been obtained for the Russian market
2. After years of development, the scale of Sinowon Innovation Metrology Manufacture Limited. has continued to expand. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
3. Reasonable design makes this product get long service life. It is supported by multiple languages say English, Turkish, and German.
4. It is strictly tested by our experienced QC team before packing. It is aimed at more than 60 countries and regions for exports

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.

◆ Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.

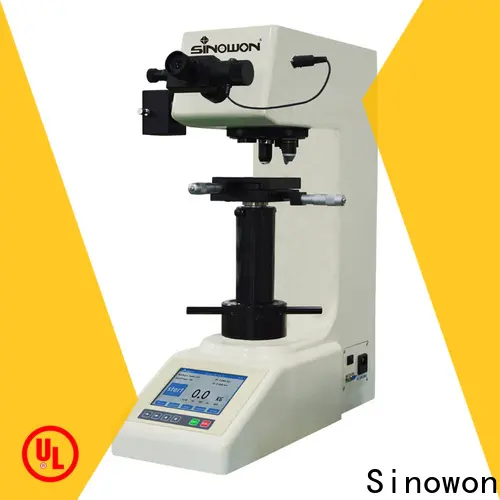

Product Name		Touch Screen Digital Vickers Hardness Tester
Model		Vicky TV-5A	Vicky TV-10A	Vicky TV-30A	Vicky TV-50A
Code#		821-220	821-240	821-260	821-280
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. As a professional durometer manufacturer, Sinowon Innovation Metrology Manufacture Limited. is highly appraised among customers.
2. Sinowon Innovation Metrology Manufacture Limited. is great at learning and upgrading portable hardness tester technology.
3. If you come, Sinowon Innovation Metrology Manufacture Limited. will make our utmost to serve you well. Get more info!
