Model:
ViCam6.0/ViaCam8.0
Code#:
ViCam6.0/ViaCam8.0
Warranty:
15-month
Delivery Time:
7-day
Inquiry
Application Scope
Sinowon's optical measurement instruments can meet the different needs of customers.Guided by the actual needs of customers, Sinowon provides comprehensive, perfect and quality solutions based on the benefit of customers.
  • elegant software vision factory for precision industry 3
Company Advantages
1. Producing Sinowon computer vision camera requires an in-depth analysis of manufacturing requirements. The plan includes designing model manuscripts or prototypes, determining the number of fair uses, choosing the processing method, and selecting the right equipment.
2. The wide used foreground of software vision is proved over a long period of time.
3. The product is extensively used in the domestic and foreign market.
4. This product has been used by more and more people because of its cost-effective advantages.

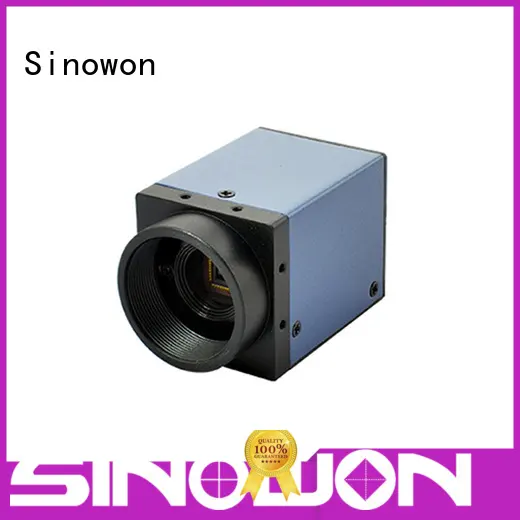

1/3” Analog Color Video Camera

                                                                                       Vicam6.0

 elegant software vision factory for precision industry 4

Vicam6.0  is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.



Technical Specifications

Commodity

1/3” Analog Camera of Vision Measuring Machine

Model

ViCam6.0

Video Signal   System

Type E: PAL

Sensor

Diagonal 6.0mm   1/3”  Exview  CCD

Unit cell size

6.5um(H)X6.25um(V)

Number of  pixels

approx. 470K   pixels

Scanning   system

2:1 interlaced

Resolution

650TVL

Video output

composite   video signal: 1.0Vp-p, 75 ohms

Video process

Bio-ele image   processing ele ext-Fx TM

Sensitivity

0.1Lux

S/N ratio

54dB (AGC:   OFF)

ATW

OSD set: Push lock/   manual/auto(1800 °K~10500 °K)

AES

OSD set:   8-level manual/auto: 1/50s~1/10,0000s

OSD

available

Sync mode

internal lock

Lens drive

DC

Lens mount

C/CS mount

Power   consumption

Approx.   1.5W; recommended: +12VDC

Operating   temperature

0 to +40 (recommended)

Dimension

60.0 (L)×48.5   (W)×58.0 (H) mm

Weight

approx. 155g



1/2” Analog Color Video Camera

Vicam8.0

Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.

Technical Specification:

Commodity

1/2” Analogue Color   Video Camera

Model

 Vicam8.0

Signal system

Type E: PAL   standard

Sensor

1/2”   8.6um(H)X8.3um(V)

Number of   pixels

Approx.470K pixels

Scanning   system

2:1 interlaced

Resolution

700TVL

Video output

composite   video signal: 1.0Vp-p, 75 ohms

Y:0.7Vp-p, 75   ohms: C:0.3Vp-p 75 ohms

Video process

ele ext-Fx

Sensitivity

0.001Lux

S/N ratio

63dB (AGC: OFF)

ATW

OSD set: Push lock/   manual/auto(2300° K~11000° K)

Image adjustment

OSD set, Brightness,   contrast ratio, and sharpness, Chroma, gain

Language

OSD   set,8  English/Chinese/France/German/Portuguese/Spanish

OSD

Available

Sync mode

internal lock

Lens drive

DC

Lens mount

C/CS mount

Lightening   proof

isolated   10/700us 4000V;  follow IEC61000-4.5, ITU-T K20/21

Power   consumption

approx.  2.4W +12V DC

Operating   temperature

0 to ~40

Dimension

127.1 (L)×68.8   (W)×48.7 (H) mm

Weight

approx. 400g
