    CHRocodile CLS Series 2

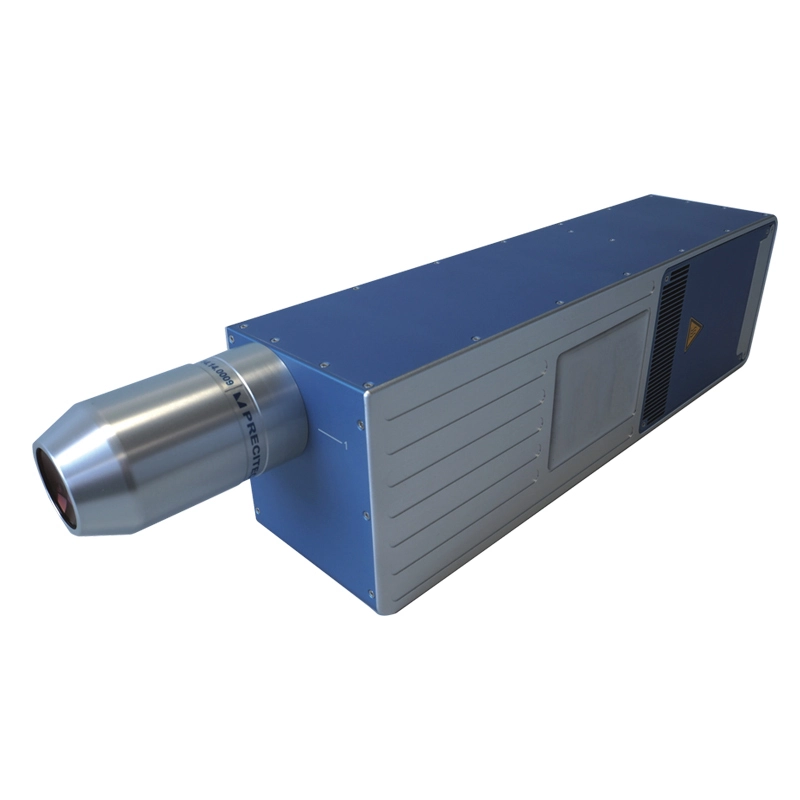

    CHRocodile CLS, the PRECITEC chromatic confocal line sensor offers an incredibly fast 3D measurement of 384,000 points persecond with nanometric scale resolution. Thanks to its robust and highly integrated design, CHRocodile CLS is perfectly suited for easy integration into inspection machines in the production line, including harsh industrial environments. An outstanding dynamic range and an excellent signal to noise ratio make the CHRocodile CLS the best measuring tool for all materials – including polished and highly tilted surfaces. With its unrivaled performance/price ratio, CHRocodile CLS is the best choice for ultrafast 3D inspection.




    Characteristics




    EFFICIENT

    High-speed

    Non-contact

    Precise


    VERSATILE

    Instantaneous profile measurement

    Inline inspection

    Interchangeable optical probes

    Distance and Thickness


    User Friendly

    Maintainance-free

    Easy to integrate

    Robust




    Technical Specifications Chrocodile CLS Series


    Application

    Distance,   thickness

    Lines /second

    100   - 2000, optionally 6000 Hz1)

    Number   of points / line

    192

    Measuring   Range

    Depends   on optical probe

    Synchronization   with external devices

    Trigger   input, synchronizing output, 5 encoder inputs

    Interface

    Ethernet,   service ports: RS-422, USB

    Transfer   Rate

    100   Mbit (Ethernet), 9600 - 921600 Baud (RS-422), 921600 Baud (USB: virtual   comport)

    Light   Source

    LED

    Operating   Temperature

    +5°C   up to +50°C

    Storage   Temperature

    -20°C   up to +70°C

    Dimension   without probe (w x h x d)

    391   mm x 100 mm x 114 mm

    Weight

    4   kg

    Protection   Class

    IP   50 (DIN 40050/ IEC 144)

    Supply   Voltage

    24   +/- 10% V DC (with separate power supply 100 - 240 V AC / 50 Hz - 60 Hz)

    Rated   Power

    40   W

    Note

    SDK   available. NET Framework 4 and higher compatible

    Order   Number

    5007994   (straight); 5007995 (90° angled); 5008859 (frequency upgrade up to 6000 Hz)

    1) With reduction of measuring range



    Technical Specifications of Optical Probes



    Model

    CLS   0.2

    CLS   0.5

    CLS   1

    CLS   2

    CLS   2.3

    CLS   4

    Measuring   Range

    200   μm

    500   μm

    950   μm

    2000   μm

    2300   μm

    3900   μm

    Line   length

    0.96   mm ± 0.01 mm

    1.43   mm ± 0,02 mm

    1.91   mm ± 0.02 mm

    8.3   mm ± 0.1 mm

    1.53   mm ± 0.02 mm

    4.78   mm ± 0.04 mm

    Pitch

    5   μm ± 0.05 μm

    7.5   μm ± 0.08 μm

    10   μm ± 0.1 μm

    43.5   μm ± 0.5 μm

    8   μm ± 0.08 μm

    25   μm ± 0.25 μm

    Working   distance1)

    5.3   mm ± 0.4 mm

    12   mm ± 0.4 mm

    18.5   mm ± 0.5 mm

    27.5   mm ± 0.5 mm

    15.6   mm ± 0.5 mm

    36.4   mm ± 0.6 mm

    Spot   diameter

    2   μm

    3   μm

    4   μm

    17   μm

    3.2   μm

    10   μm

    Lateral   resolution

    1   μm

    1.5   μm

    2   μm

    8.5   μm

    1.6   μm

    5   μm

    Axial   resolution

    20   nm

    50   nm

    80   nm

    250   nm

    200   nm

    320   nm

    Linearity   2)

    ± 80 nm

    ± 200 nm

    ± 300 nm

    ± 1 μm

    ± 780 nm

    ± 1.2 μm

    Numerical   aperture

    0.7

    0.61

    0.55

    0.2

    0.55

    0.33

    Measurement   angle to surface3)

    90°+/-44°

    90°+/-   38°

    90°+/-33°

    90°+/-11°

    90°+/-33°

    90°+/-20°

    Thickness   measuring range4)

    20   μm - 280 μm

    40   μm - 700 μm

    75   μm - 1.35 mm

    280   μm - 2800 μm

    200   μm - 3.1 mm

    300   μm - 5.5 mm

    Photometric   efficiency5)

    7

    10

    14

    50

    2

    22

    Length

    70.4   mm

    75   mm

    93.3   mm

    84   mm

    99   mm

    120   mm

    Diameter

    37   mm

    52   mm

    54   mm

    55   mm

    54   mm

    58   mm

    Weight

    190   g

    240   g

    430   g

    200   g

    390   g

    510   g

    Order   number

    5007993

    5009885

    5007895

    5009888

    5009128

    5007896

    1) Bottom of optical probe to middle of measuring range

    2) Perpendicular measurement on mirror at 20° C

    3) Decreasing accuracy on the limits

    4) Refractive index n = 1.5

    5) Estimated average signal intensity in % obtained on uncoated glass at 2 kHz, LED 100 %, in the center of the measuring range.
