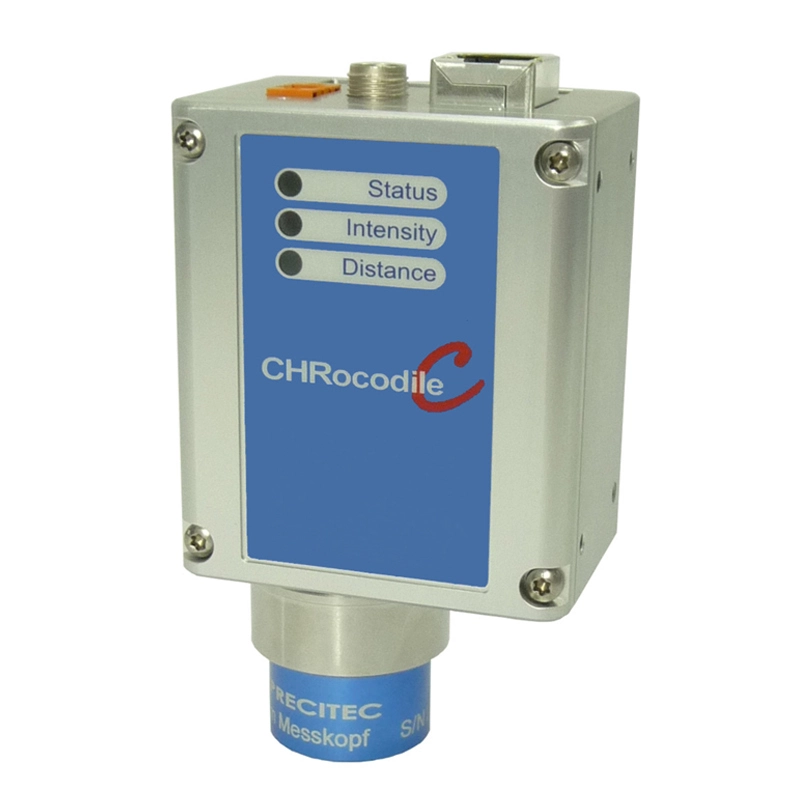

CHRocodile C Series 2

The ultra compact CHRocodile C sensor with its robust and integrated design offers high precision distance and thickness measurements.

CHRocodile C is specially suited for industrial inline use and easily integrable into any kind of inspection machine.

The extraordinary high dynamic range and the outstanding signal-to-noise ratio of the CHRocodile sensors ensure the best measuring results on any kind of surfaces.

Thanks to its compact dimensions and excellent performance/price ratio, CHRocodile C is the ideal alternative to classical laser triangulation sensors.

Characteristics

EFFICIENT

◆Compact design

◆Low weight

◆Low energy consumption

VERSATILE

◆Distance and thickness

◆Works on all surfaces/materials

◆Interchangeable probes

USER-FRIENDLY AND SAFE

◆Maintenance-free

◆Simple to integrate

◆Non-contact

Technical Specifications Chrocodile C

Application	Distance, thickness
Measurements /second	up to 4000
Synchronization with external devices	Trigger input, synchronizing output
Interface	Ethernet, RS-422, RS-232, external analogue converter box as accessory
Transfer Rate	Ethernet (100 Mbit); RS-422, RS-232 (9600 - 1843200 Baud)
Light Source	LED
Protection Class	IP50
Operating Temperature	0°C to + 50°C
Storage Temperature	-20°C to 70°C
Dimension (l x w x h)	99 mm x 65 mm x 47 mm (without probe)
Weight (without probe)	430 g
Supply Voltage	24 V
Rated Power	4 W
SDK	DLL written in C, C++; SDK written in C# with .NET framework 4
Order Number	5009276
Accessories	Extension box for synchronization with external devices(order number 5009932)

Technical Specifications of Optical Probes

Model	Probe 200μm	Probe 1 mm	Probe 4 mm	Probe 10 mm
Measuring Range	200 μm	1 mm	4 mm	10 mm
Working Distance¹⁾(mm)	4.7 +/- 0.3	15.7 +/- 0.5	36.7 +/- 0.7	68.7 +/- 1
Spot Diameter	3.4 μm	5 μm	8 μm	16 μm
Lateral Resolution	1.7 μm	2.5 μm	4 μm	8 μm
Axial Resolution	8 nm	40 nm	160 nm	400 nm
Linearity²⁾	150 nm	400 nm	1.6 μm	4 μm
Measurement angle to surface³⁾	90° +/- 45°	90° +/- 28°	90° +/- 20°	90° +/- 14°
Thickness Measuring Range⁴⁾	up to 0.3 mm	up to 1.5 mm	up to 6 mm	up to 15 mm
Weight	41 g	31 g	57 g	86 g
Dimensions (outside) (mm)	d = 28, l = 23.7	d = 28, l = 17	d = 34, l = 26.6	d = 40, l = 35.3
Order Number	5009278	5009279	5009280	5009281

¹⁾ Bottom of optical probe to middle of measuring range

²⁾Perpendicular measurement on mirror at 20° C

³⁾Decreasing linearity on the limits

⁴⁾Refractive index n = 1.5
