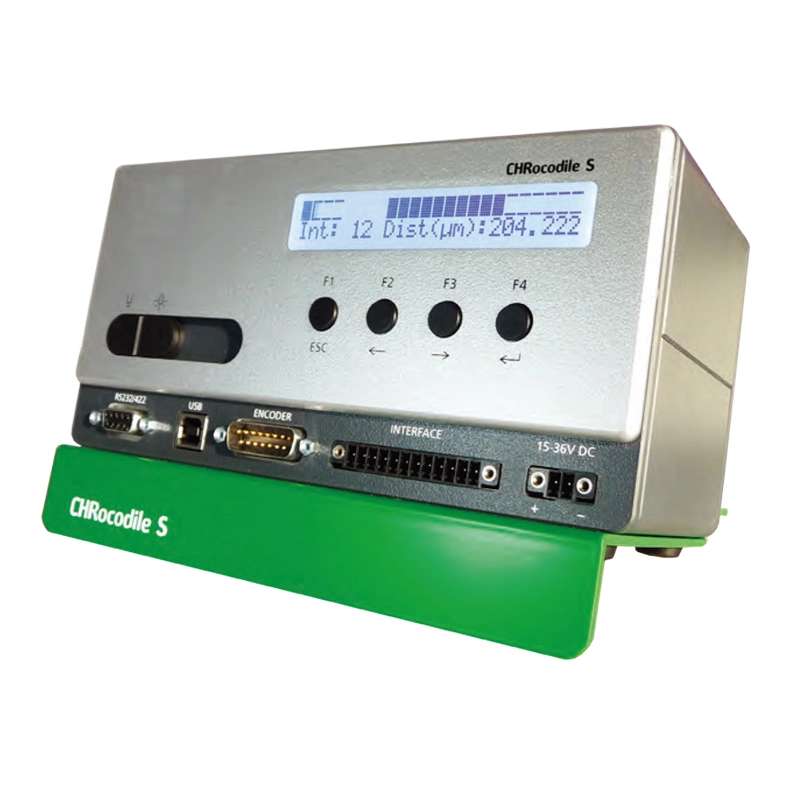

    CHRocodile S Series 2

    The CHRocodile S optical sensor is the all-rounder with an excellent price/performance ratio. It is perfectly suited for challenging measuring tasks, such as the non-contact measurement of topography and thickness. The sensor employs two different methods of measurement and thus is able to measure thicknesses of a wide measuring range.

    The extraordinarily high dynamic response and the outstanding signal-to-noise ratio of the CHRocodile sensors ensure the best measuring results on surfaces with differing reflectivity and from different angles.



    Characteristics




    EFFICIENT

    Precise

    Rapid

    Non-contact


    VERSATILE

    Distance and topography

    Wide thickness measuring range

    Measurements on all surfaces

    Inline and offline


    User Friendly

    Maintenance-free

    Simple to integrate

    Nondestructive measurement

    Robust

    Automatic light control




    Specification


    Application

    Distance,   thickness

    Measurements /second

    32   - 2000

    Interferometric   Measuring Range 1)

    3   μm - 180 μm

    Chromatic   Measuring Range

    Depends   on optical probe

    Pitch   Error 2)

    <   10 -3

    Linearity   Error 2)

    <   3.3 x 10 -4 x upper measuring range limit

    Resolution

    10   -7 x upper measuring range limit

    Reproducibility

    9   x 10 -5 x upper measuring range limit

    Number   of measuring channels

    1

    Synchronization   with external devices

    Trigger   input, synchronizing output, 3 encoder inputs

    Interface

    USB,   RS-232, RS-422, 2 x analog (0 V to 10 V, 16 Bit), LVDT 3)

    Transfer   Rate

    RS-232   (9600 - 921600 Baud); RS-422 (9600 - 921600 Baud);

    USB:   virtual comport (921600 Baud)

    Light   Source

    LED

    Length   Optical Fiber4)

    2   m - 40 m (multi mode fiber)

    Fiber   Connection

    E   2000

    Operating   Temperature

    +5°C   up to +50°C

    Dimension   (w x h x d)

    200   mm x 100 mm x 93 mm

    Weight

    1.1   kg

    Supply   Voltage

    16   - 30 V DC (with separate power supply 90 - 264 V AC)

    Rated   Power

    10   W

    1) Optical length

    2) Measuring accuracy = linearity error + (pitch error x measuring value)

    3) Optional

    4) Metal cover up to 15 m also available
